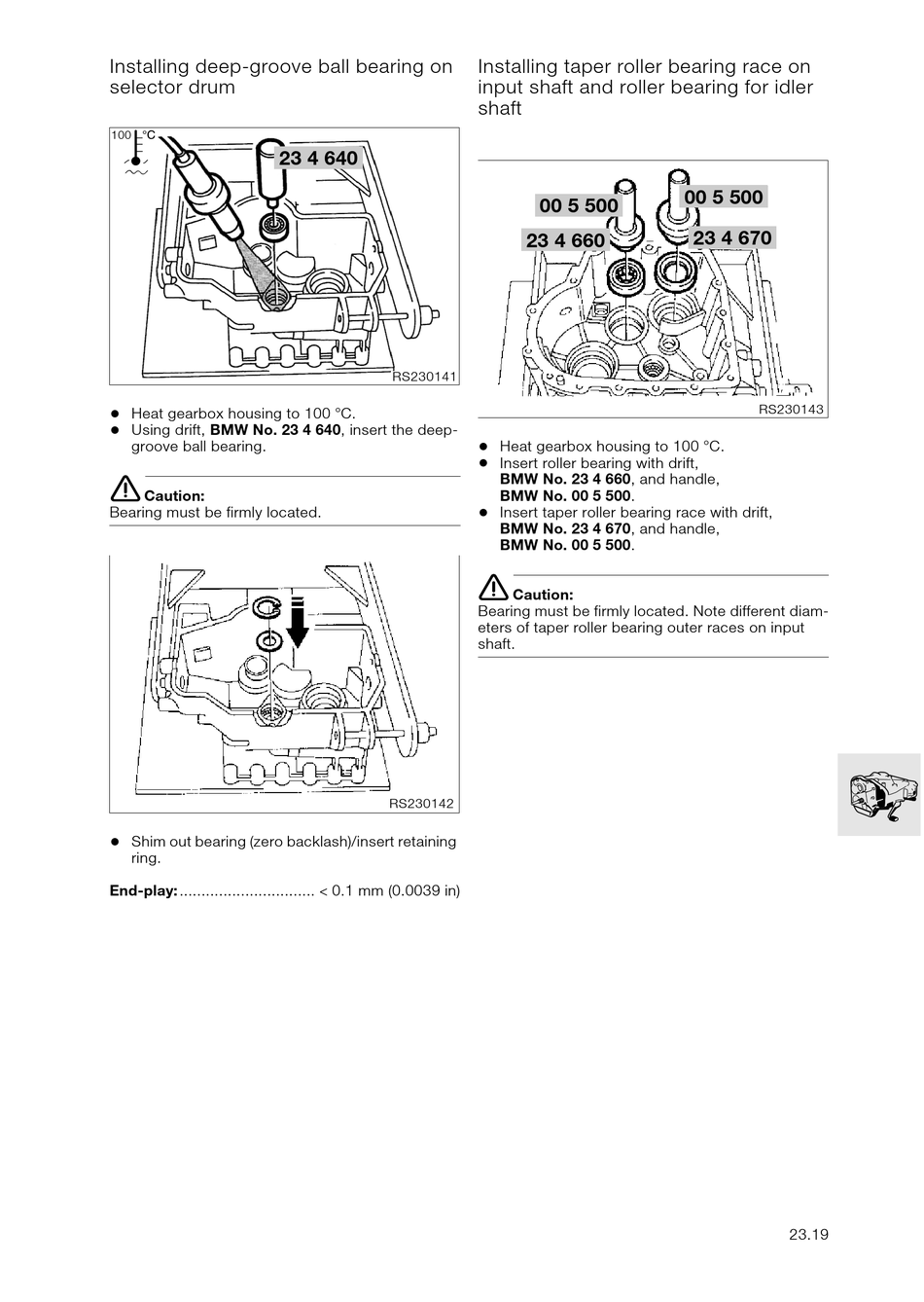

Installing deep-groove ball bearing on
selector drum
j
100
23 4 640
•
Heat gearbox housing to 100 °C.
•
Using drift, BMW No. 23 4 640, insert the deep-
groove ball bearing.
e
Caution:
Bearing must be firmly located.
•
Shim out bearing (zero backlash)/insert retaining
ring.
End-play: ............................... < 0.1 mm (0.0039 in)
Installing taper roller bearing race on
input shaft and roller bearing for idler
shaft
00 5 500
23 4 660
RS230141
•
Heat gearbox housing to 100 °C.
•
Insert roller bearing with drift,
BMW No. 23 4 660, and handle,
BMW No. 00 5 500.
•
Insert taper roller bearing race with drift,
BMW No. 23 4 670, and handle,
BMW No. 00 5 500.
e
Caution:
Bearing must be firmly located. Note different diam-
eters of taper roller bearing outer races on input
shaft.
RS230142
00 5 500
23 4 670
RS230143
