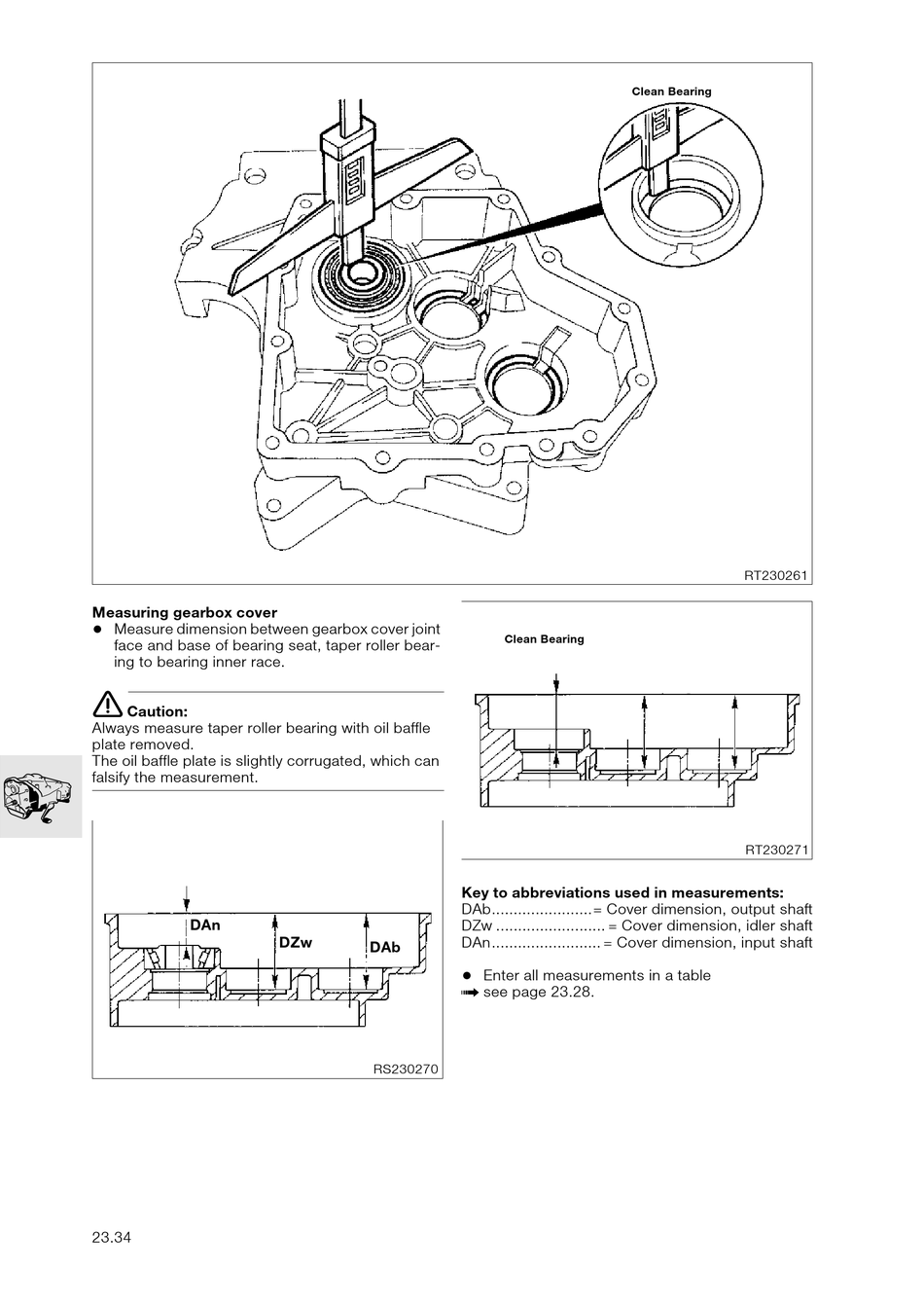

Measuring gearbox cover

•
Measure dimension between gearbox cover joint
face and base of bearing seat, taper roller bear-
ing to bearing inner race.
e
Caution:
Always measure taper roller bearing with oil baffle
plate removed.
The oil baffle plate is slightly corrugated, which can
falsify the measurement.
DAn
23.34
DZw
DAb
RS230270
Clean Bearing
Clean Bearing
DAn
Key to abbreviations used in measurements:
DAb.......................= Cover dimension, output shaft
DZw ......................... = Cover dimension, idler shaft
DAn......................... = Cover dimension, input shaft
•
Enter all measurements in a table
see page 23.28.
a
RT230261
DZw
DAb
RT230271
