Dismantling/Reassembling Telescopic Fork; Dismantling Telescopic Fork - BMW R 1100 RT Repair Manual

GS/R/RT
1
RS
Dismantling/reassembling
telescopic fork

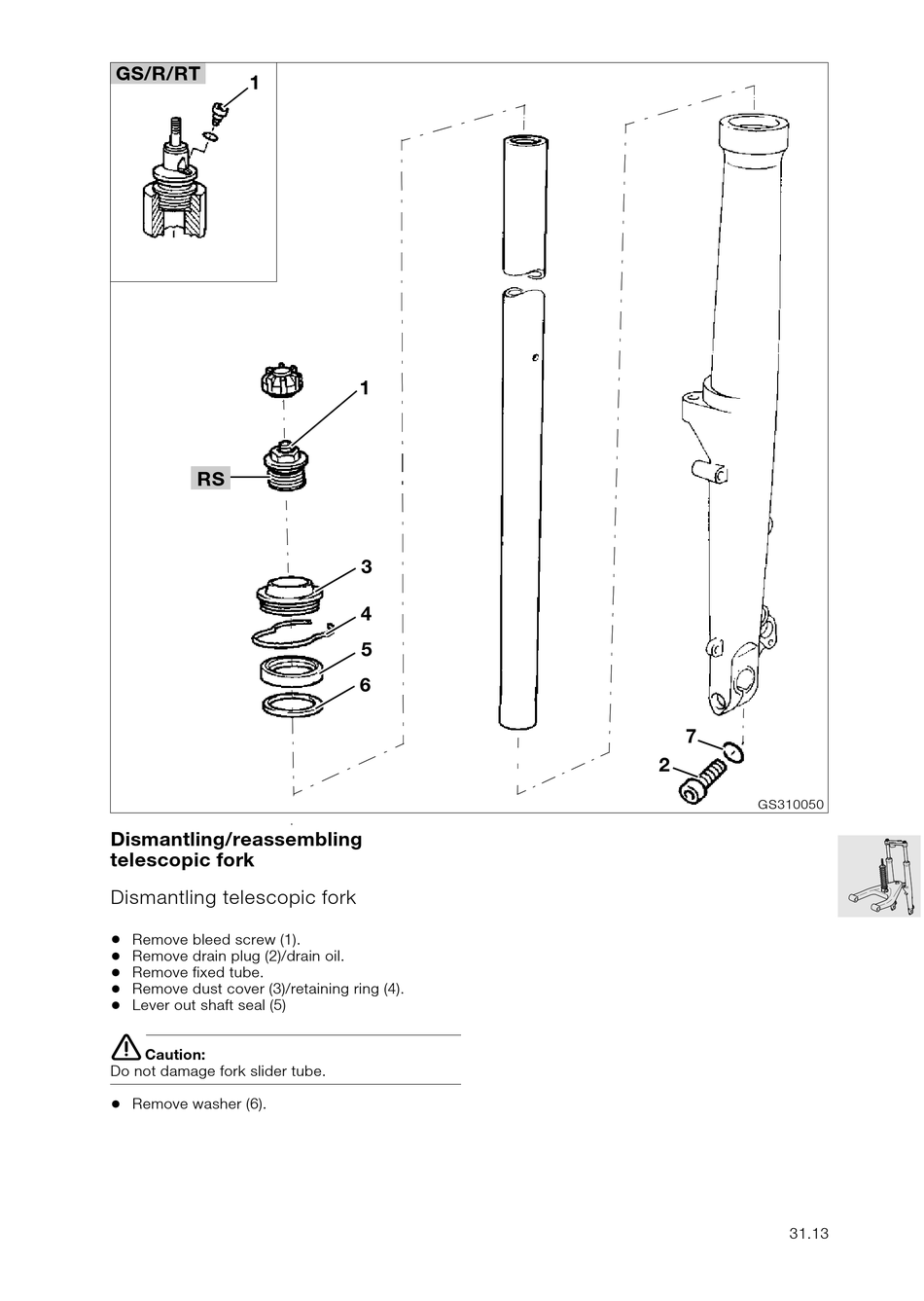

Dismantling telescopic fork

•
Remove bleed screw (1).
•
Remove drain plug (2)/drain oil.
•
Remove fixed tube.
•
Remove dust cover (3)/retaining ring (4).
•
Lever out shaft seal (5)
e
Caution:
Do not damage fork slider tube.
•
Remove washer (6).
1
3
4
5
6
7
2
GS310050
31.13
