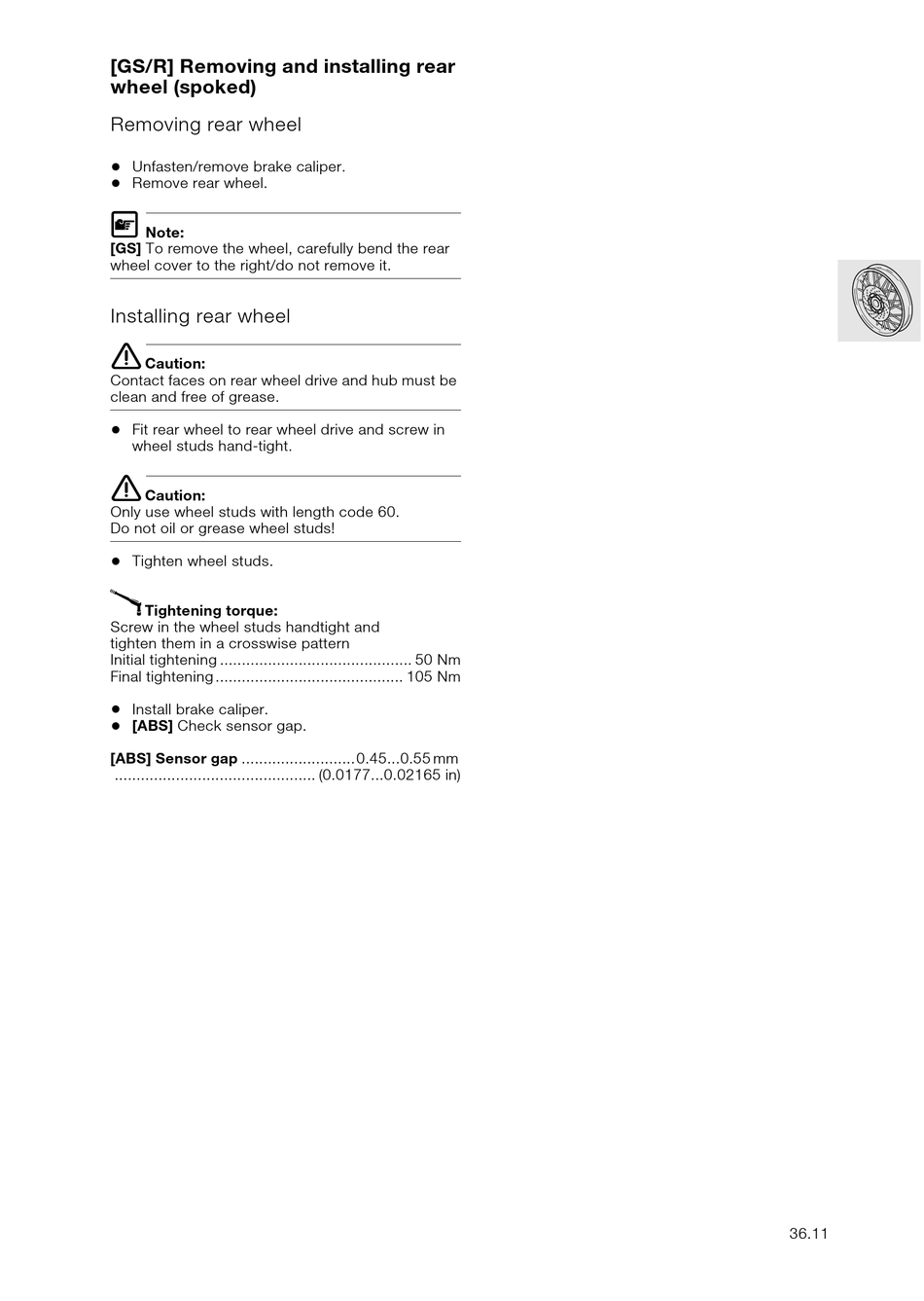

[GS/R] Removing and installing rear
wheel (spoked)
Removing rear wheel
•
Unfasten/remove brake caliper.
•
Remove rear wheel.
L
Note:
[GS] To remove the wheel, carefully bend the rear
wheel cover to the right/do not remove it.
Installing rear wheel
e
Caution:
Contact faces on rear wheel drive and hub must be
clean and free of grease.
•
Fit rear wheel to rear wheel drive and screw in
wheel studs hand-tight.
e
Caution:
Only use wheel studs with length code 60.
Do not oil or grease wheel studs!
•
Tighten wheel studs.
X
Tightening torque:
Screw in the wheel studs handtight and
tighten them in a crosswise pattern
Initial tightening ............................................ 50 Nm
Final tightening ........................................... 105 Nm
•
Install brake caliper.
•
[ABS] Check sensor gap.
[ABS] Sensor gap ..........................0.45...0.55 mm
.............................................. (0.0177...0.02165 in)
36.11
