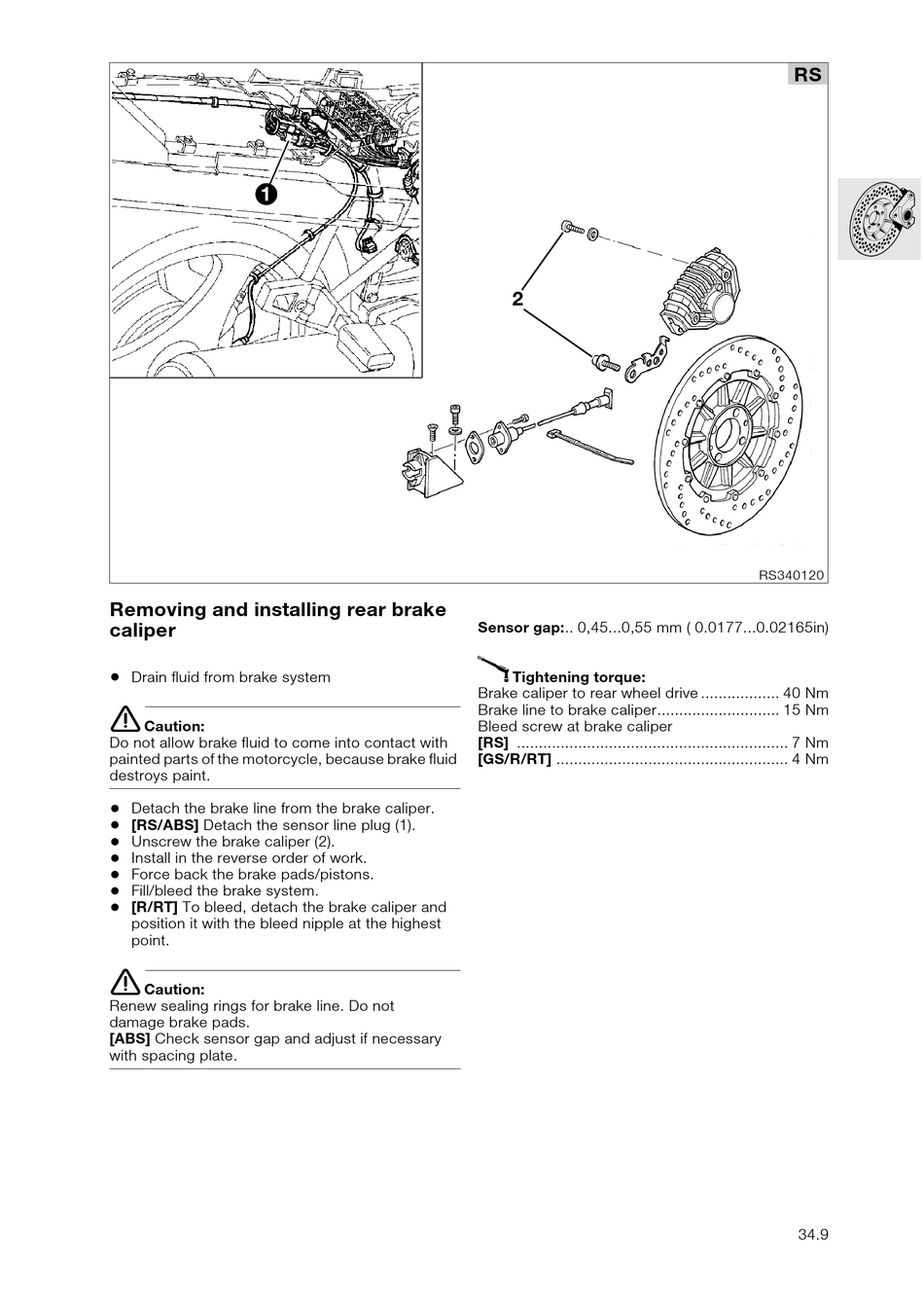

Removing and installing rear brake
caliper
•
Drain fluid from brake system
e
Caution:
Do not allow brake fluid to come into contact with
painted parts of the motorcycle, because brake fluid
destroys paint.
•
Detach the brake line from the brake caliper.
•
[RS/ABS] Detach the sensor line plug (1).
•
Unscrew the brake caliper (2).
•
Install in the reverse order of work.
•
Force back the brake pads/pistons.
•
Fill/bleed the brake system.
•
[R/RT] To bleed, detach the brake caliper and
position it with the bleed nipple at the highest
point.
e
Caution:
Renew sealing rings for brake line. Do not
damage brake pads.
[ABS] Check sensor gap and adjust if necessary
with spacing plate.
2
Sensor gap:.. 0,45...0,55 mm ( 0.0177...0.02165in)
X
Tightening torque:
Brake caliper to rear wheel drive .................. 40 Nm
Brake line to brake caliper............................ 15 Nm
Bleed screw at brake caliper
[RS] .............................................................. 7 Nm
[GS/R/RT] ..................................................... 4 Nm
RS
RS340120
34.9
