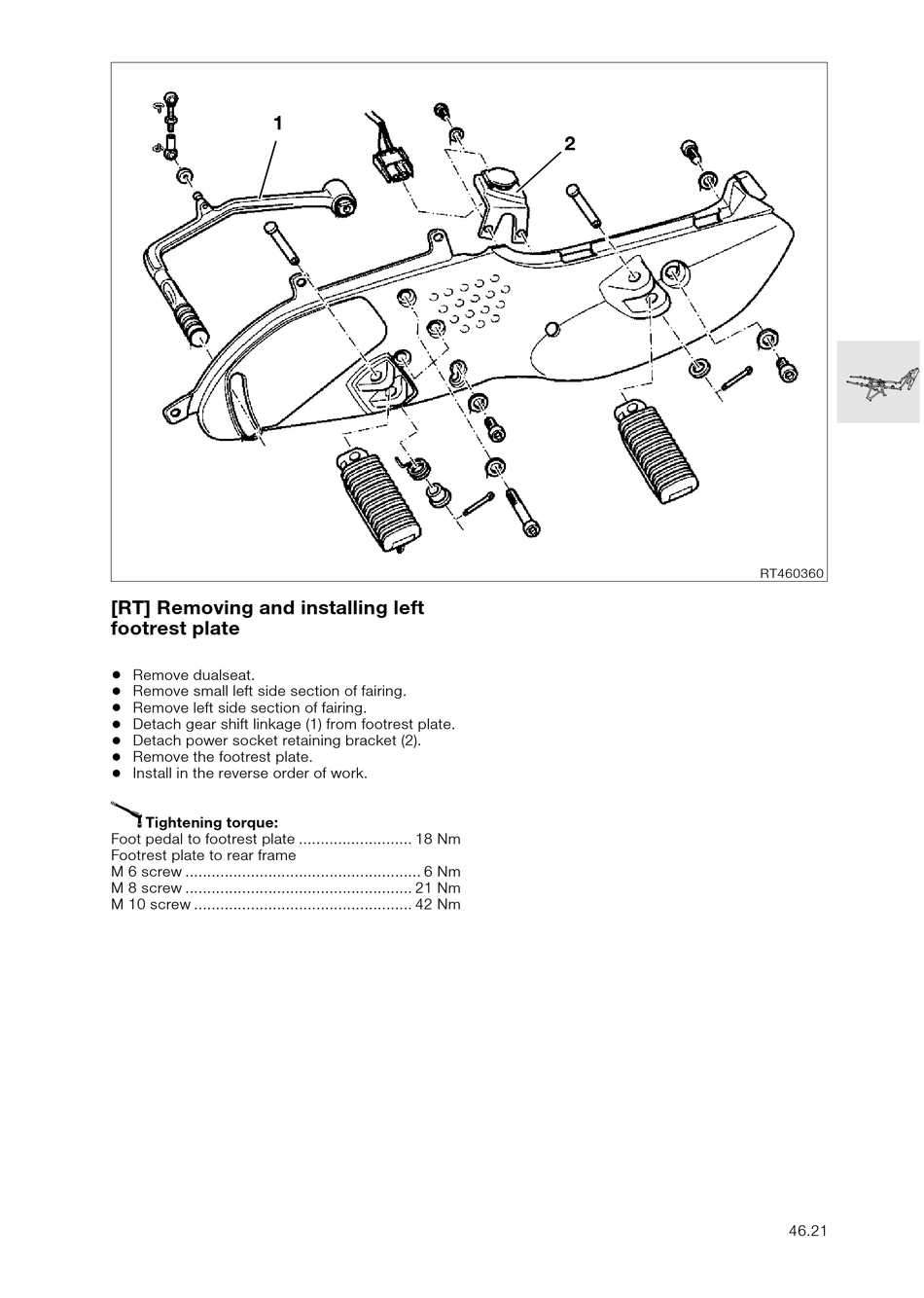

[RT] Removing and installing left
footrest plate
•
Remove dualseat.
•
Remove small left side section of fairing.
•
Remove left side section of fairing.
•
Detach gear shift linkage (1) from footrest plate.
•
Detach power socket retaining bracket (2).
•
Remove the footrest plate.
•
Install in the reverse order of work.
X
Tightening torque:
Foot pedal to footrest plate .......................... 18 Nm
Footrest plate to rear frame
M 6 screw ...................................................... 6 Nm
M 8 screw .................................................... 21 Nm
M 10 screw .................................................. 42 Nm
2
RT460360
46.21
