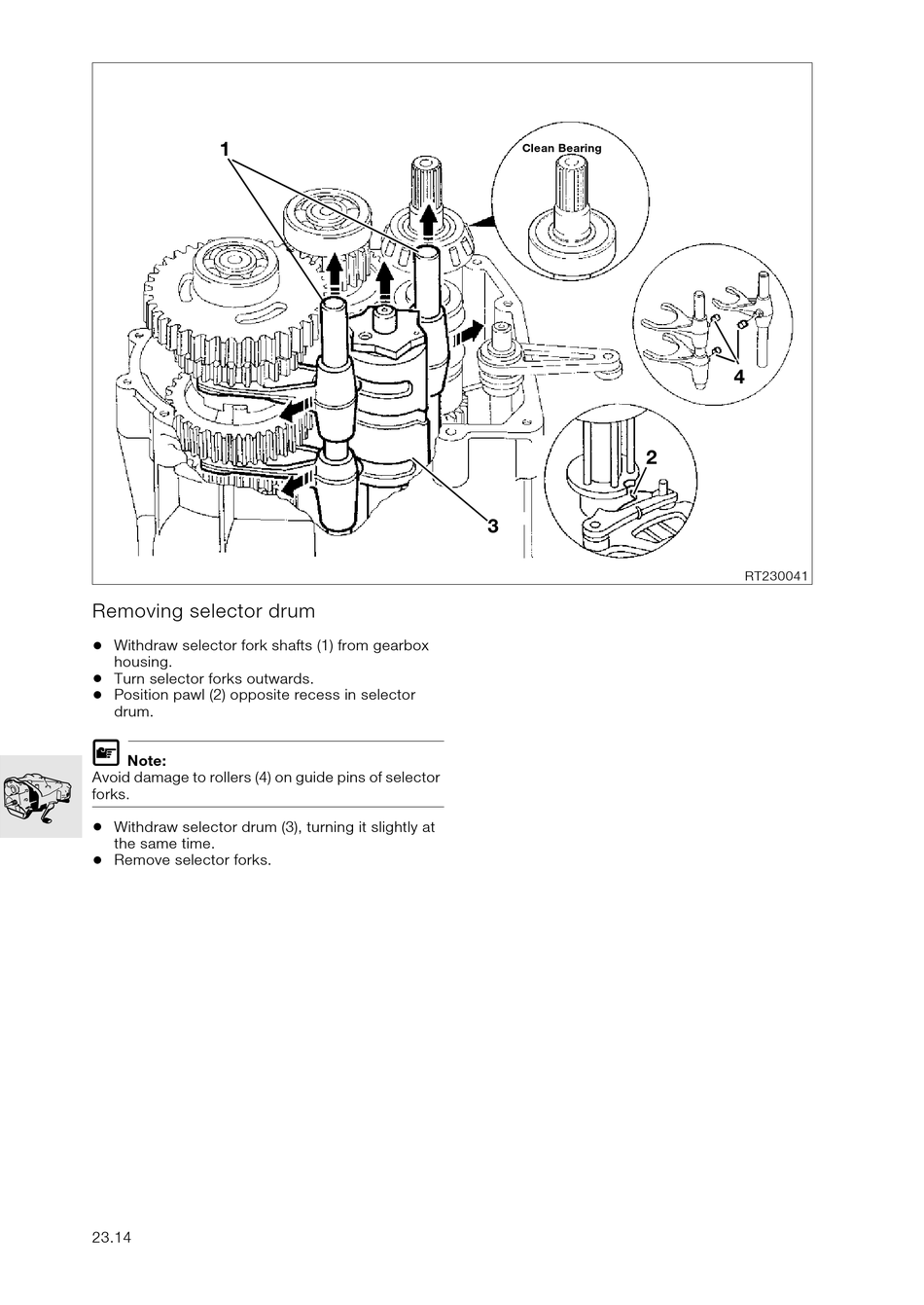

Removing selector drum

•
Withdraw selector fork shafts (1) from gearbox
housing.
•
Turn selector forks outwards.
•
Position pawl (2) opposite recess in selector
drum.
L
Note:
Avoid damage to rollers (4) on guide pins of selector
forks.
•
Withdraw selector drum (3), turning it slightly at
the same time.
•
Remove selector forks.
23.14
Clean Bearing
2
3
4
