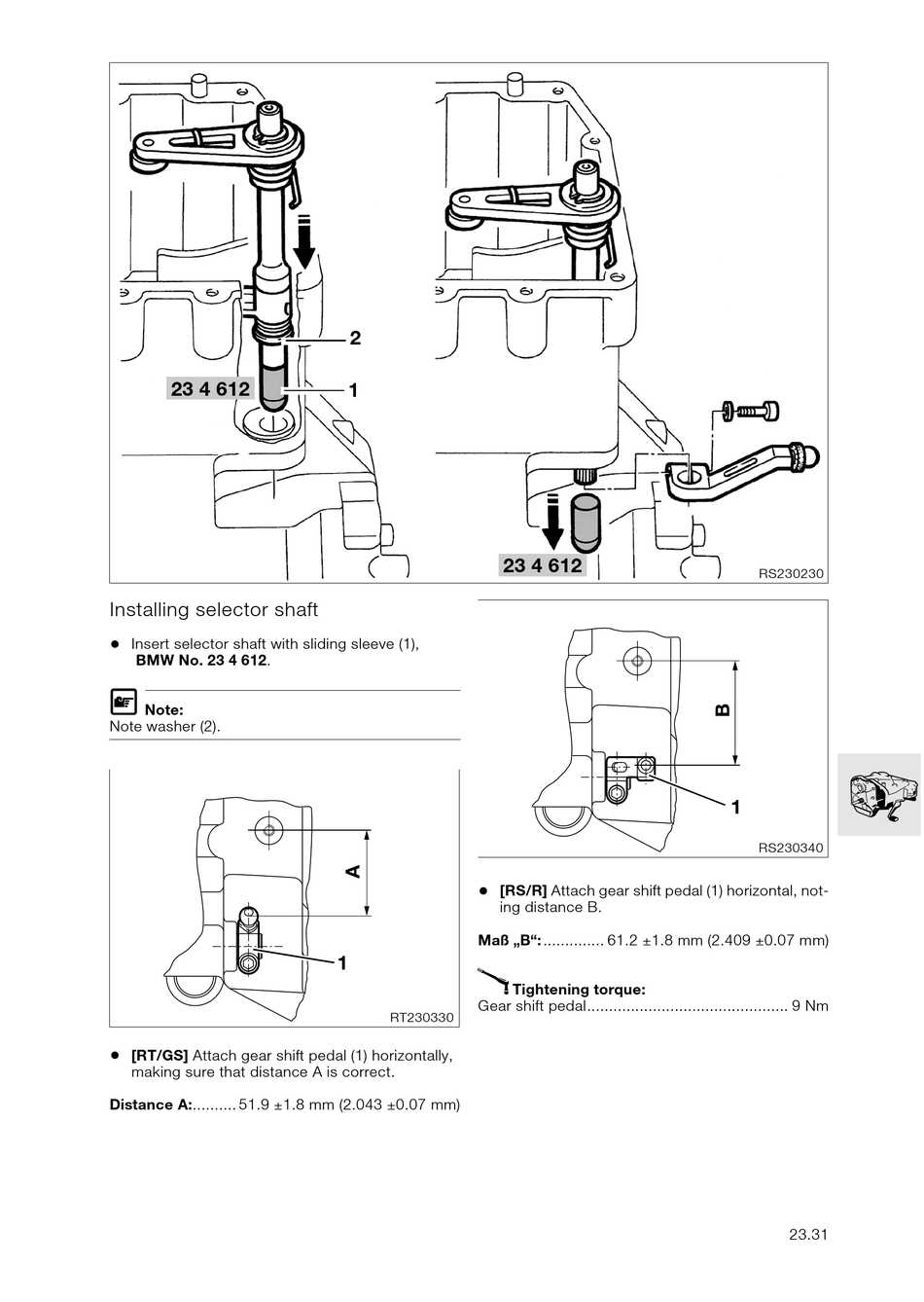

Installing selector shaft

•
Insert selector shaft with sliding sleeve (1),
BMW No. 23 4 612.
L
Note:
Note washer (2).
•
[RT/GS] Attach gear shift pedal (1) horizontally,
making sure that distance A is correct.
Distance A:.......... 51.9 ±1.8 mm (2.043 ±0.07 mm)
2
1
23 4 612
•
[RS/R] Attach gear shift pedal (1) horizontal, not-
ing distance B.
Maß „B": .............. 61.2 ±1.8 mm (2.409 ±0.07 mm)
1
X
Gear shift pedal.............................................. 9 Nm
RT230330
Tightening torque:
RS230230
1
RS230340
23.31
