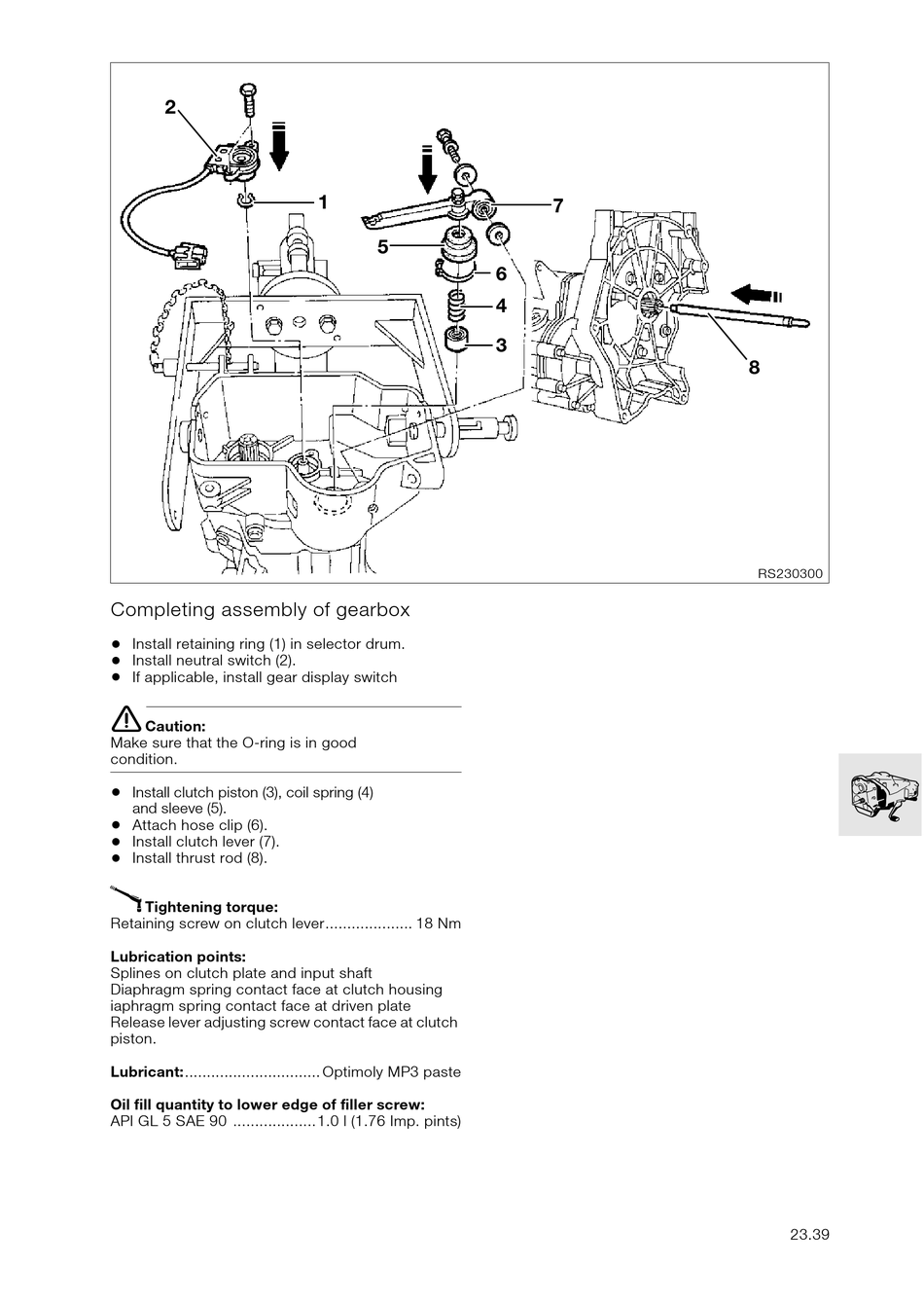

Completing assembly of gearbox

•
Install retaining ring (1) in selector drum.
•
Install neutral switch (2).
•
If applicable, install gear display switch
e
Caution:
Make sure that the O-ring is in good
condition.
•
Install clutch piston (3), coil spring (4)
and sleeve (5).
•
Attach hose clip (6).
•
Install clutch lever (7).
•
Install thrust rod (8).
X
Tightening torque:
Retaining screw on clutch lever.................... 18 Nm
Lubrication points:
Splines on clutch plate and input shaft
Diaphragm spring contact face at clutch housing
iaphragm spring contact face at driven plate
Release lever adjusting screw contact face at clutch
piston.
Lubricant:............................... Optimoly MP3 paste
Oil fill quantity to lower edge of filler screw:
API GL 5 SAE 90 ...................1.0 l (1.76 Imp. pints)
