8
42 x 52 x 1,25

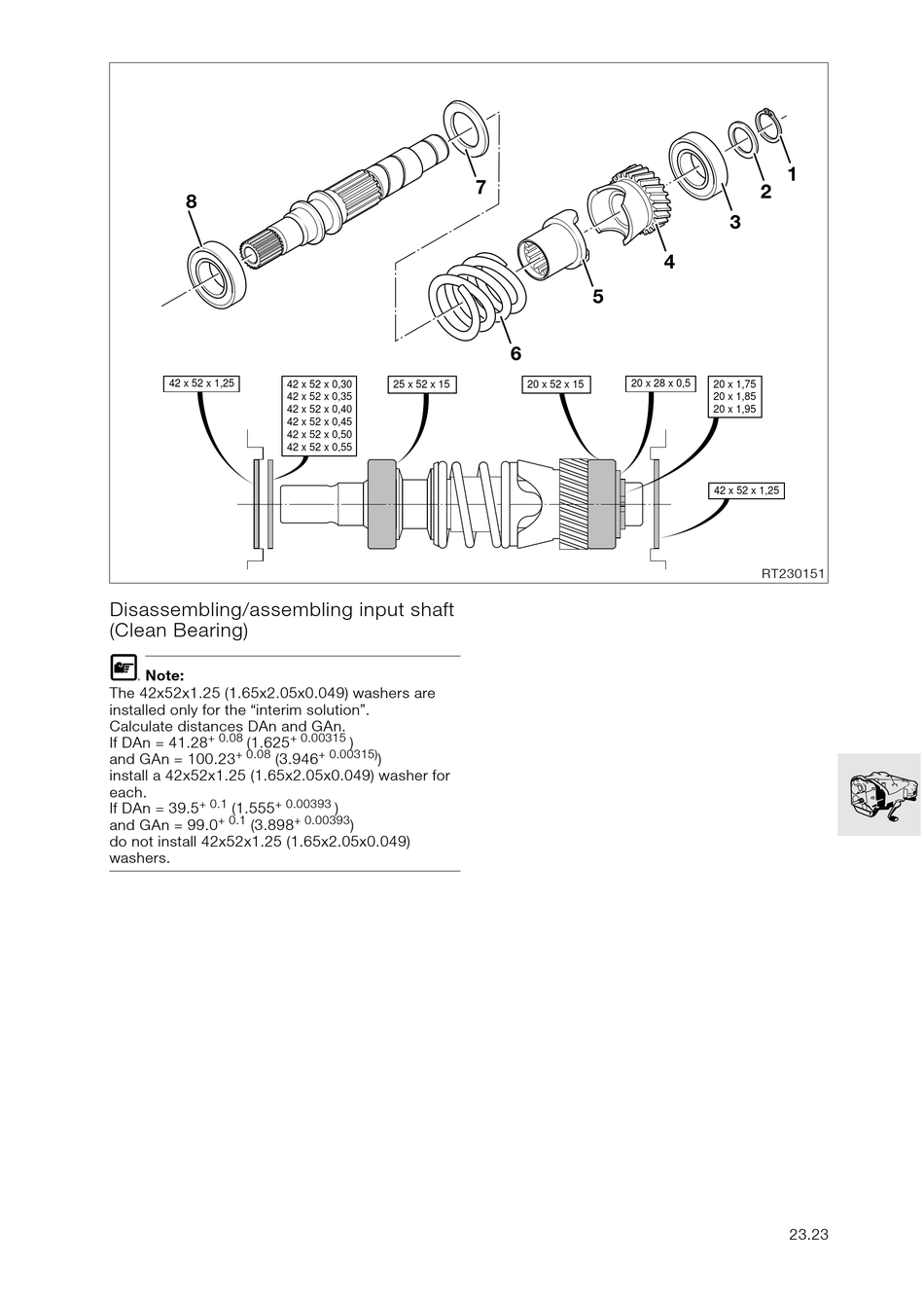

Disassembling/assembling input shaft
(Clean Bearing)
L
. Note:
The 42x52x1.25 (1.65x2.05x0.049) washers are
installed only for the "interim solution".
Calculate distances DAn and GAn.
+ 0.08
If DAn = 41.28 (1.625
+ 0.08
and GAn = 100.23 (3.946
install a 42x52x1.25 (1.65x2.05x0.049) washer for
each.
+ 0.1 + 0.00393
If DAn = 39.5 (1.555
+ 0.1
and GAn = 99.0 (3.898
do not install 42x52x1.25 (1.65x2.05x0.049)
washers.
42 x 52 x 0,30 25 x 52 x 15
42 x 52 x 0,35
42 x 52 x 0,40
42 x 52 x 0,45
42 x 52 x 0,50
42 x 52 x 0,55
+ 0.00315
)
+ 0.00315)
)
)
+ 0.00393
)
7
5
6
20 x 28 x 0,5
20 x 52 x 15
1
2
3
4
20 x 1,75
20 x 1,85
20 x 1,95
42 x 52 x 1,25
RT230151
23.23
