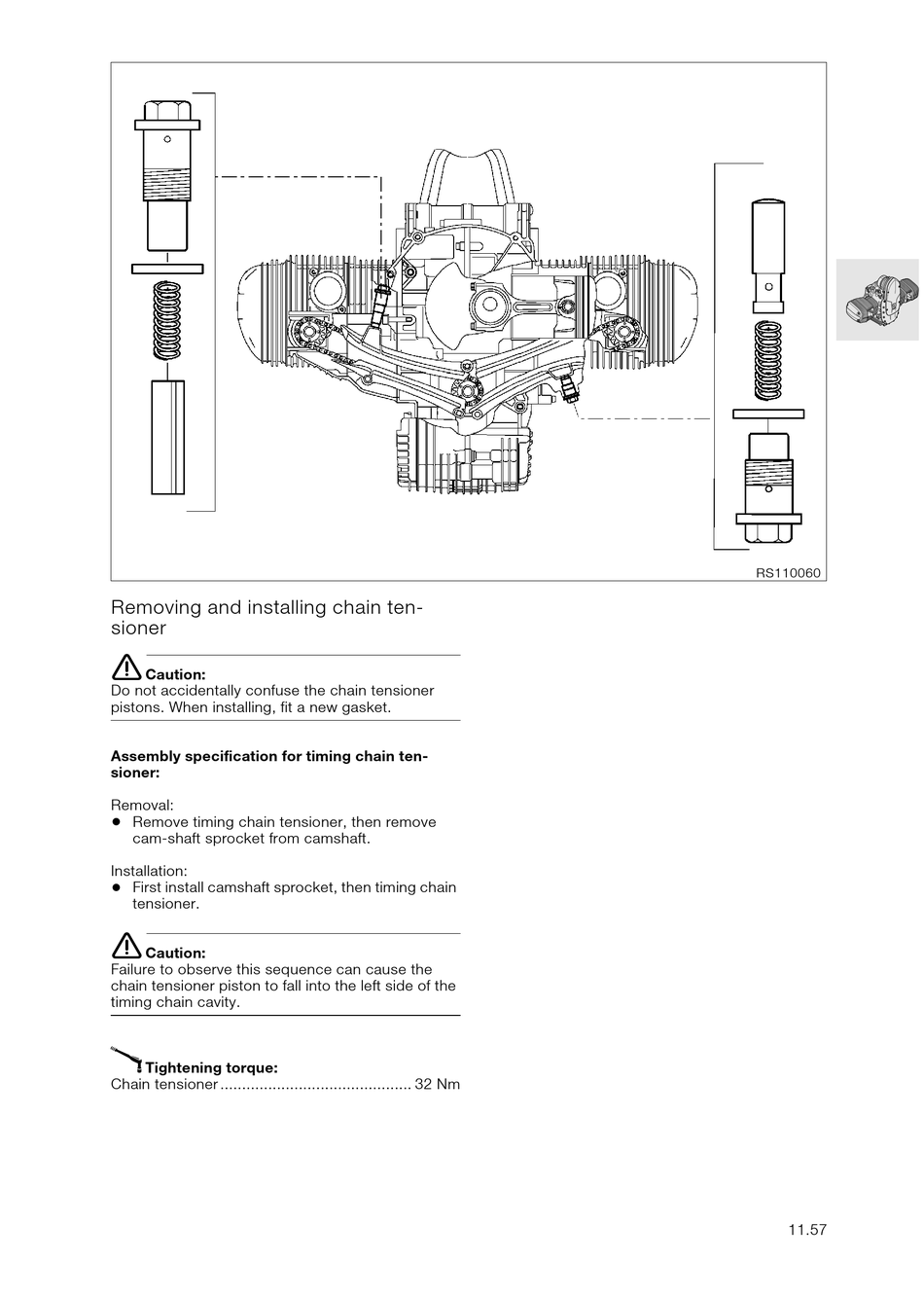

Removing and installing chain ten-
sioner
e
Caution:
Do not accidentally confuse the chain tensioner
pistons. When installing, fit a new gasket.
Assembly specification for timing chain ten-
sioner:
Removal:
•
Remove timing chain tensioner, then remove
cam-shaft sprocket from camshaft.
Installation:
•
First install camshaft sprocket, then timing chain
tensioner.
e
Caution:
Failure to observe this sequence can cause the
chain tensioner piston to fall into the left side of the
timing chain cavity.
X
Tightening torque:
Chain tensioner ............................................ 32 Nm
RS110060
11.57
