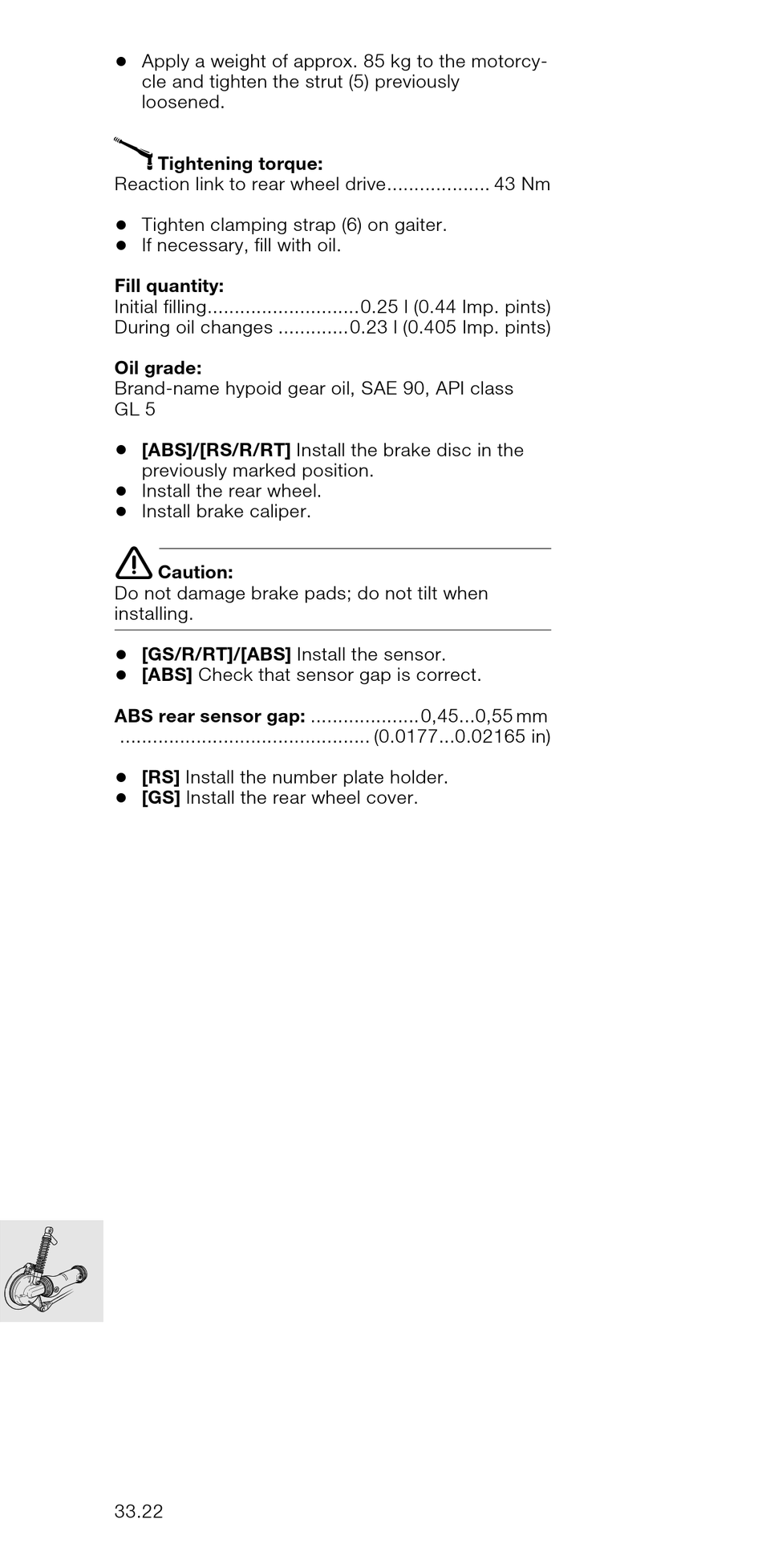

BMW R 1100 RT Repair Manual page 291

•
Apply a weight of approx. 85 kg to the motorcy-
cle and tighten the strut (5) previously
loosened.
X
Tightening torque:
Reaction link to rear wheel drive................... 43 Nm
•
Tighten clamping strap (6) on gaiter.
•
If necessary, fill with oil.
Fill quantity:
Initial filling............................0.25 l (0.44 Imp. pints)
During oil changes .............0.23 l (0.405 Imp. pints)
Oil grade:
Brand-name hypoid gear oil, SAE 90, API class
GL 5
•
[ABS]/[RS/R/RT] Install the brake disc in the
previously marked position.
•
Install the rear wheel.
•
Install brake caliper.
e
Caution:
Do not damage brake pads; do not tilt when
installing.
•
[GS/R/RT]/[ABS] Install the sensor.
•
[ABS] Check that sensor gap is correct.
ABS rear sensor gap: ....................0,45...0,55 mm
.............................................. (0.0177...0.02165 in)
•
[RS] Install the number plate holder.
•
[GS] Install the rear wheel cover.
33.22
