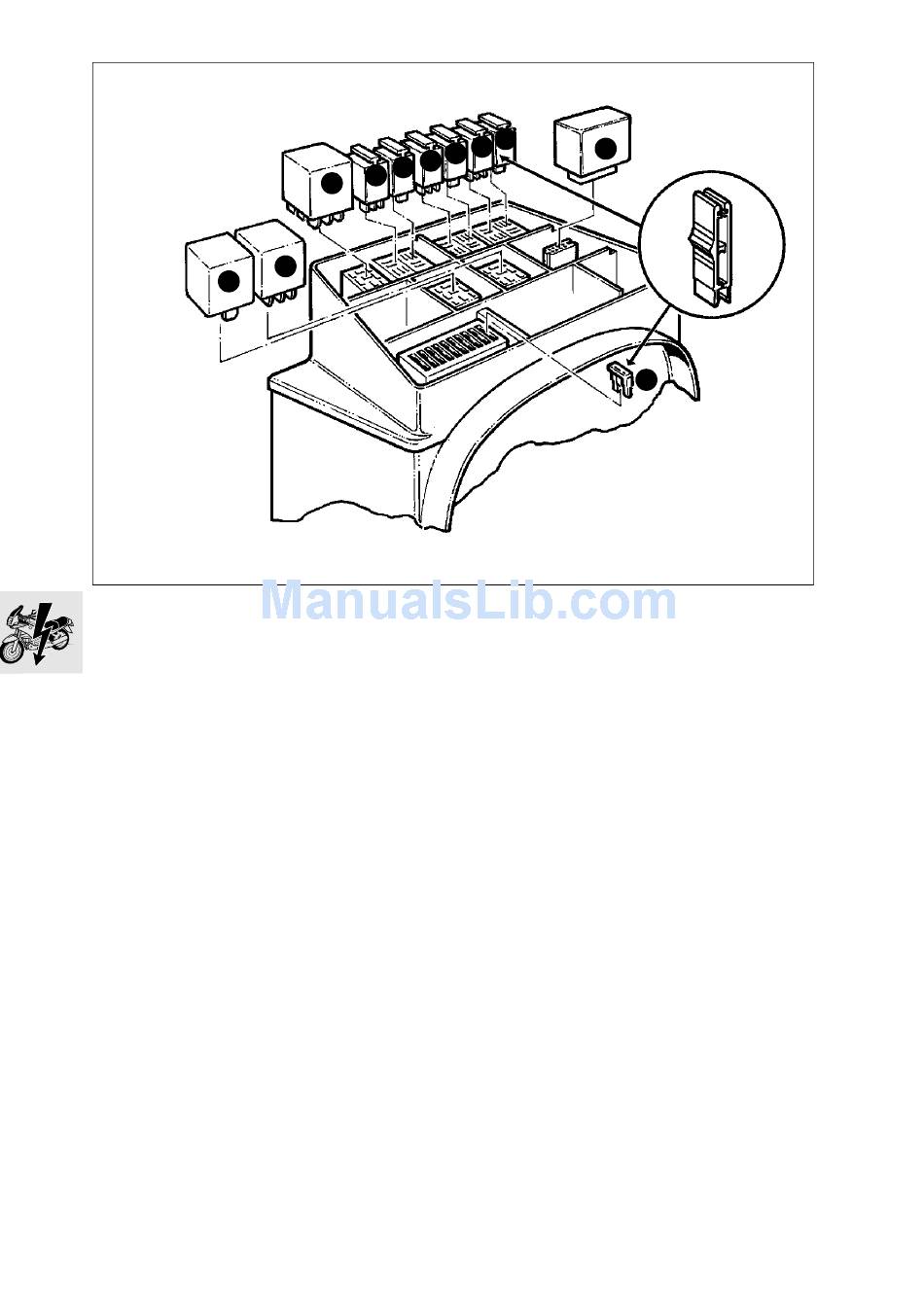

Relay positions (central electrical
equipment box)
1. Encoding plug for Motronic and catalytic
converter
2. Fuel gauge/display damping
3. Starter motor relay
4. Load-relief relay
5. Horn relay
6. Fuel pump relay
7. Motronic relay
8. ABS warning relay
9. Not in use
10.Flasher unit
11.Fuse

Connections to fuses: [RS/GS/R]

(No. 1 on left, looking forwards)
1. Instrument cluster,
brake and rear lights ............................. 15 Amp
2. Parking light .......................................... 15 Amp
3. Flashing turn indicators, clock ............... 15 Amp
4. Power socket ........................................ 15 Amp
5. Motronic................................................ 15 Amp
6. Fuel pump ............................................. 15 Amp
7. Heated handlebar grips ........................... 4 Amp
8. Spare fuse............................................... 4 Amp
9. Spare fuse............................................. 15 Amp
10.Spare fuse............................................. 15 Amp
61.8
6 7
4 5
3
2
8 9
10
11

Connections to fuses: [RT]

(No. 1 on left, looking forwards)
1. Instrument cluster,
brake and rear lights ............................. 15 Amp
2. Parking light .......................................... 15 Amp
3. Flashing turn indicators, clock............... 15 Amp
4. Power socket ........................................ 15 Amp
5. Motronic................................................ 15 Amp
6. Fuel pump ............................................. 15 Amp
7. Heated handlebar grips........................... 4 Amp
8. Radio .................................................... 15 Amp
9. Spare fuse............................................. 15 Amp
10.Spare fuse............................................... 4 Amp
RS610070
