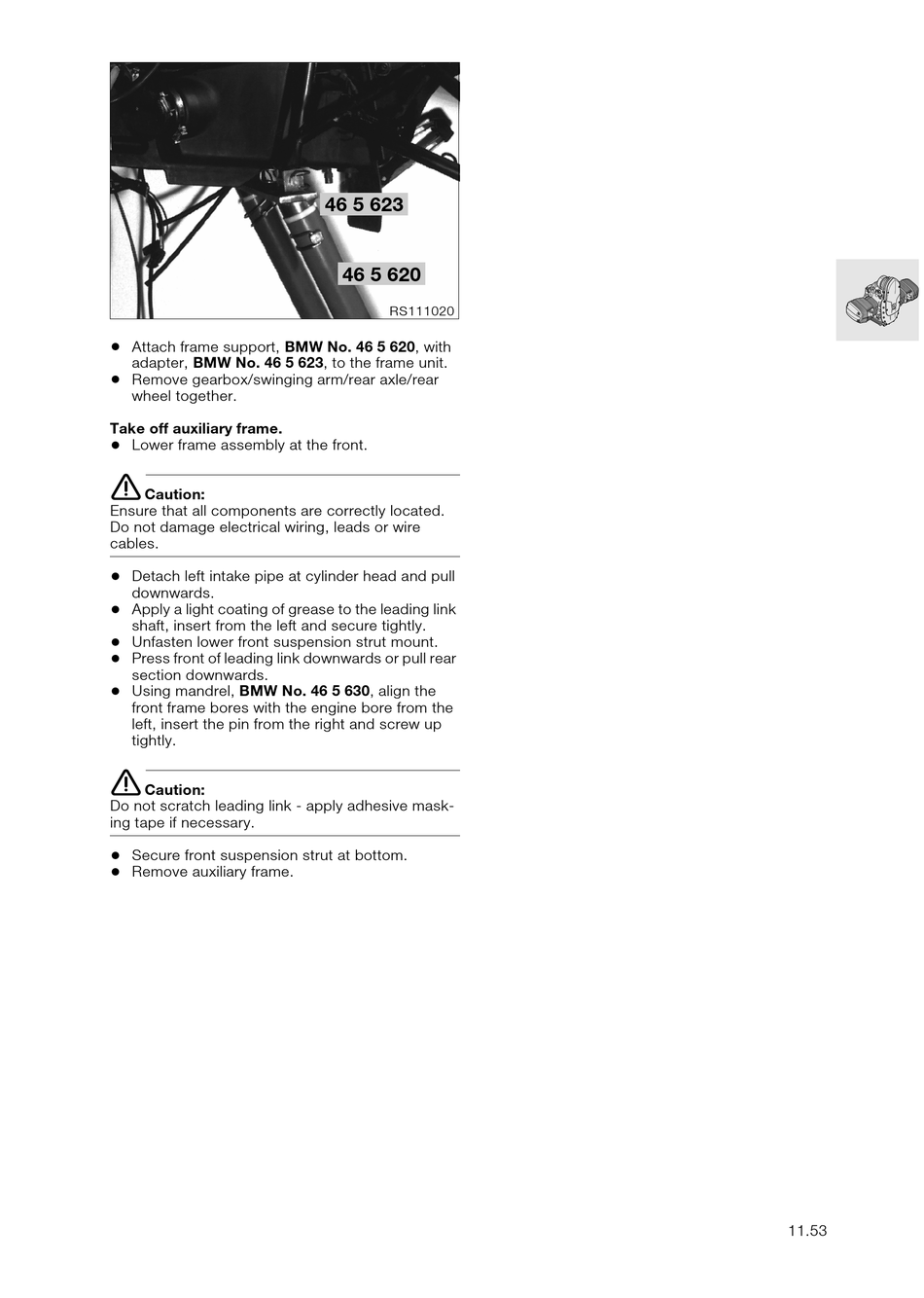

Attach frame support, BMW No. 46 5 620, with
adapter, BMW No. 46 5 623, to the frame unit.
•
Remove gearbox/swinging arm/rear axle/rear
wheel together.
Take off auxiliary frame.
•
Lower frame assembly at the front.
e
Caution:
Ensure that all components are correctly located.
Do not damage electrical wiring, leads or wire
cables.
•
Detach left intake pipe at cylinder head and pull
downwards.
•
Apply a light coating of grease to the leading link
shaft, insert from the left and secure tightly.
•
Unfasten lower front suspension strut mount.
•
Press front of leading link downwards or pull rear
section downwards.
•
Using mandrel, BMW No. 46 5 630, align the
front frame bores with the engine bore from the
left, insert the pin from the right and screw up
tightly.
e
Caution:
Do not scratch leading link - apply adhesive mask-
ing tape if necessary.
•
Secure front suspension strut at bottom.
•
Remove auxiliary frame.
46 5 623
46 5 620
RS111020
11.53
