To display the Diagnostics window
the 3Com NIC Diagnostics program and click the
Diagnostics tab.
To see all the available tests, use the Name list box in the
Diagnostics window.

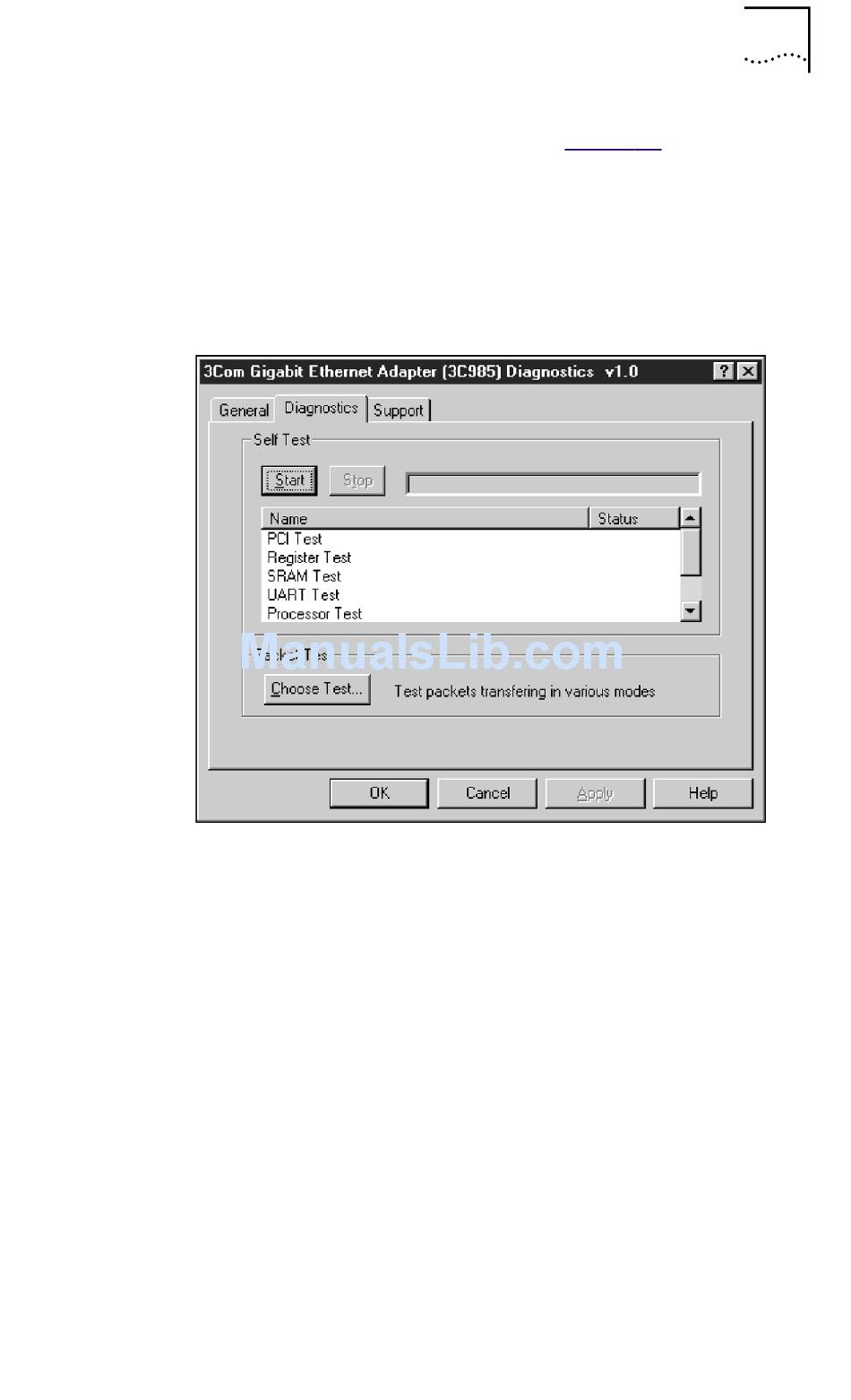

Figure 18 Diagnostics Window

Running the NIC Self-Test

Run the NIC self-test to check the physical components,
connectors, and circuitry on the NIC.
Make sure the 3C985B-SX server NIC is installed and
connected to the network, and that the Windows NT driver
is installed.
To run the NIC self-test:
1 Start the 3Com NIC Diagnostics program.
2 Click the Diagnostics tab.
3 Click Start in the Self-Test area.
The tests run in sequence to completion or until you
click Stop.
Using the 3Com NIC Diagnostics Program
(Figure 18), start
61
