1 Unclip the connectors at both ends of the
double-strand cable, as shown in

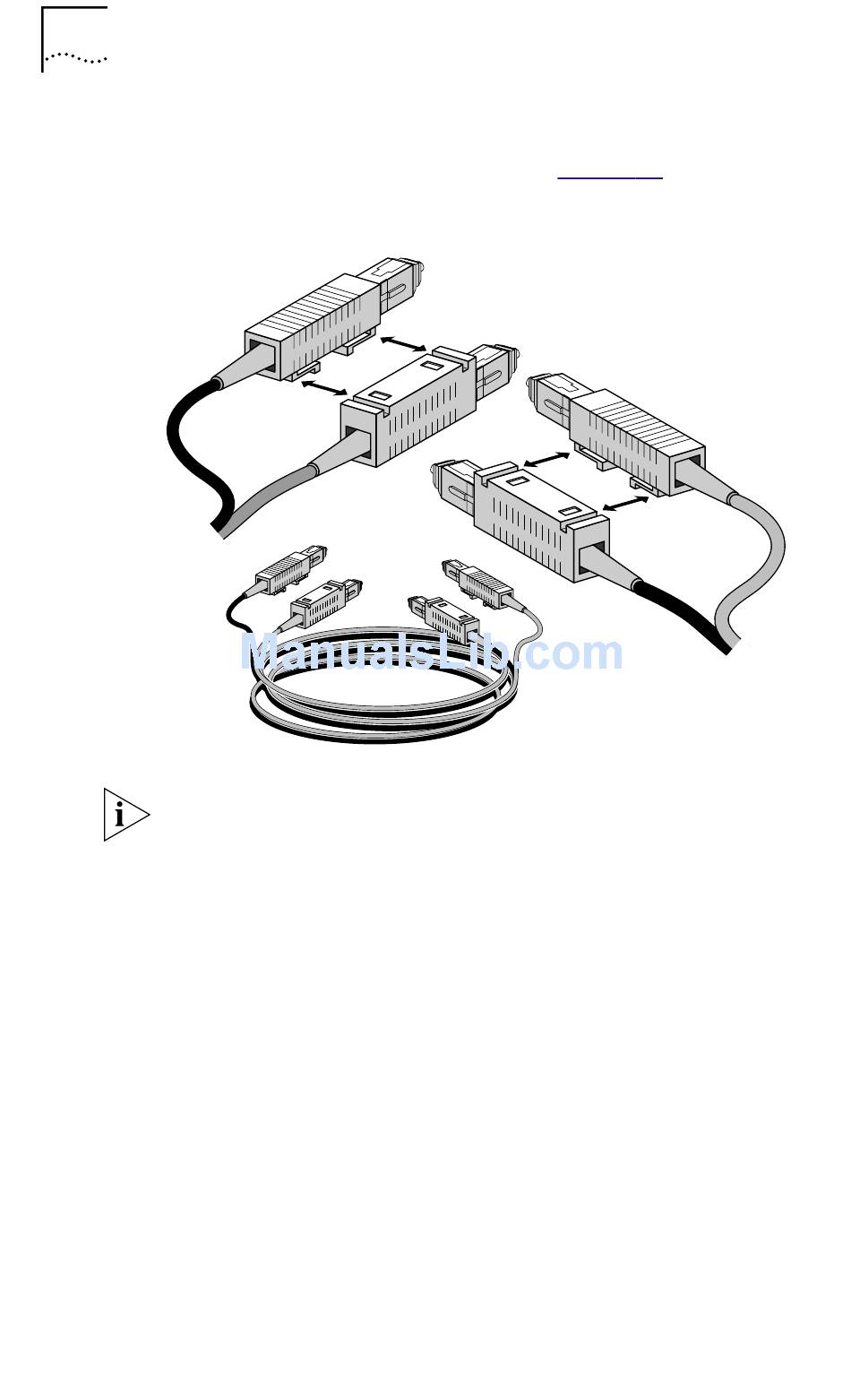

Figure 25 Unclipping Double-strand Fiber-optic Cable Connectors
If you cannot unclip the connectors, create a loopback plug
from a new strand of cable whose connectors have not yet
been clipped together.
2 Clip together the connectors of one of the strands
(one strand has markings on it; the other does not).
3 Insert the connectors into the SC connector ports of
the 3C985B-SX server NIC.
