Changing the Primary NIC

The first NIC added to an empty group is automatically
designated the primary NIC. NICs added subsequently are
designated as secondary NICs. Primary status is indicated
by a P icon at the beginning of the NIC name. When there
are more than one NIC in a group, you can change the
primary NIC as follows (see
1 Click the Load Balance/RSL tab.
2 In the Load Balance/RSL window, select a secondary
NIC from the Load Balance/RSL Groups list.
3 Click Select Primary.
The NIC you selected becomes the primary NIC.

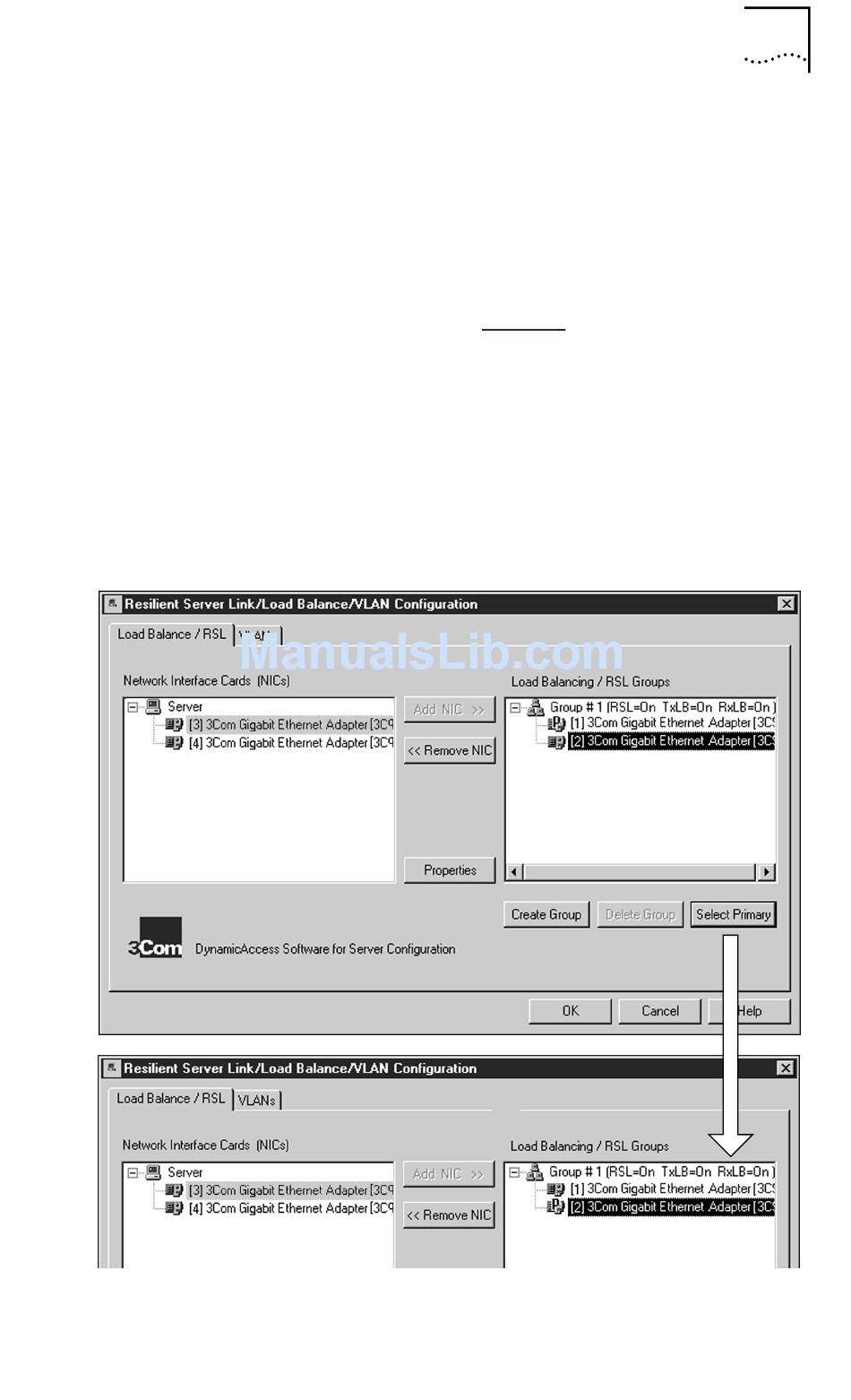

Figure 8 Changing the Primary NIC
Other Procedures
Figure 8):
31
