- Page 1 ® Fast EtherLink PCI 10/100BASE-TX Network Interface Card Quick Guide Member of the 3Com Fast EtherLink XL family of network interface cards http://www.3com.com/ Part No. 09-1364-001 Published October 1998...
- Page 2 DFARS 252.227-7014 (June 1995) or as a commercial item as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in 3Com’s standard commercial license for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable.
-
Page 3: About This Guide

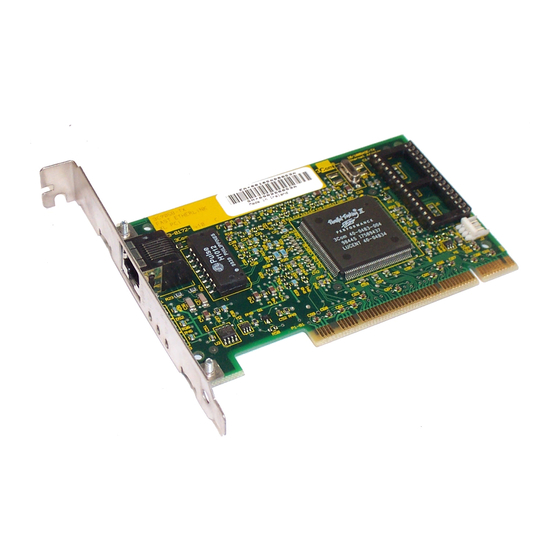

Fast EtherLink XL PCI 10/100BASE-TX Network Interface Card User Guide. Introduction ® ® The 3Com Fast EtherLink XL (3C905B-TX) network interface card (NIC) (Figure 1) connects your PC or server to a Fast Ethernet or Ethernet network. D A T A... - Page 4 XL PCI 10/100BASE-TX NIC Q THER UICK UIDE The 3Com Remote Wake-Up NIC (3C905B-TX), shown in Figure 1, operates as a Wake-Up NIC only in PCs with a Remote Wake-Up connector attached to the PC motherboard. This NIC provides a network connection with or without the Remote Wake-Up connector installed.
- Page 5 Installing the 3C905B-TX NIC In most PCs, slot 1 and 2 are bus mastering slots. Use slot 1 if possible with the 3C905B-TX NIC. If you have a video PCI card, install it in the last slot (the one farthest from slot 1). 6 Unscrew the screw holding the PCI slot’s backplate and remove it.
-
Page 6: Connecting To The Network
XL PCI 10/100BASE-TX NIC Q THER UICK UIDE Connecting to the Network You must connect the NIC to the network before installing the network driver. To connect the 3C905B-TX NIC to the network cable, follow these steps: 1 Connect the network cable to the RJ-45 port on the 3C905B-TX NIC, as shown in Figure 3. - Page 7 A, click OK. Otherwise, supply the correct drive letter and then click OK. Once the 3Com installation files are read, Windows 95 prompts you for the Windows 95 network installation files. 5 Enter the location of the Windows 95 files (CAB files), and click OK.
- Page 8 5 Double-click Network Adapters. The name of the installed 3C905B-TX NIC appears: 3Com Fast EtherLink XL Adapter (3C905B) If this name does not appear or if a yellow exclamation point appears next to it, see Chapter 4 in the user guide.
-
Page 9: Windows Nt
Windows NT 4.0 If the NIC is not disabled and a red X still appears next to the name of the NIC, update the driver by following these steps: a Double-click the name of the NIC. b Select the Driver tab, and then click the Update Driver button. - Page 10 PC running Windows NT version 4.0: 1 Double-click the Network icon in the Control Panel. 2 Click the Adapters tab. 3Com Fast EtherLink XL Adapter should appear in the list. If it does not appear, see Chapter 4 in the user guide for troubleshooting information.
