5. Ensure your TCP/IP settings are correct:
Using DHCP
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting.
Restart your PC to ensure it obtains an IP Address from the UniGateway EH-2101W.
Using a fixed IP Address ("Use the following IP Address")
If your PC is already configured, check with your network administrator before making the
following changes.
•
Enter the UniGateway EH-2101W's IP address in the Default gateway field and click OK.
(Your LAN administrator can advise you of the IP Address they assigned to the UniGate-
way EH-2101W.)
•
If the DNS Server fields are empty, select Use the following DNS server addresses, and
enter the DNS address or addresses provided by your ISP, then click OK.

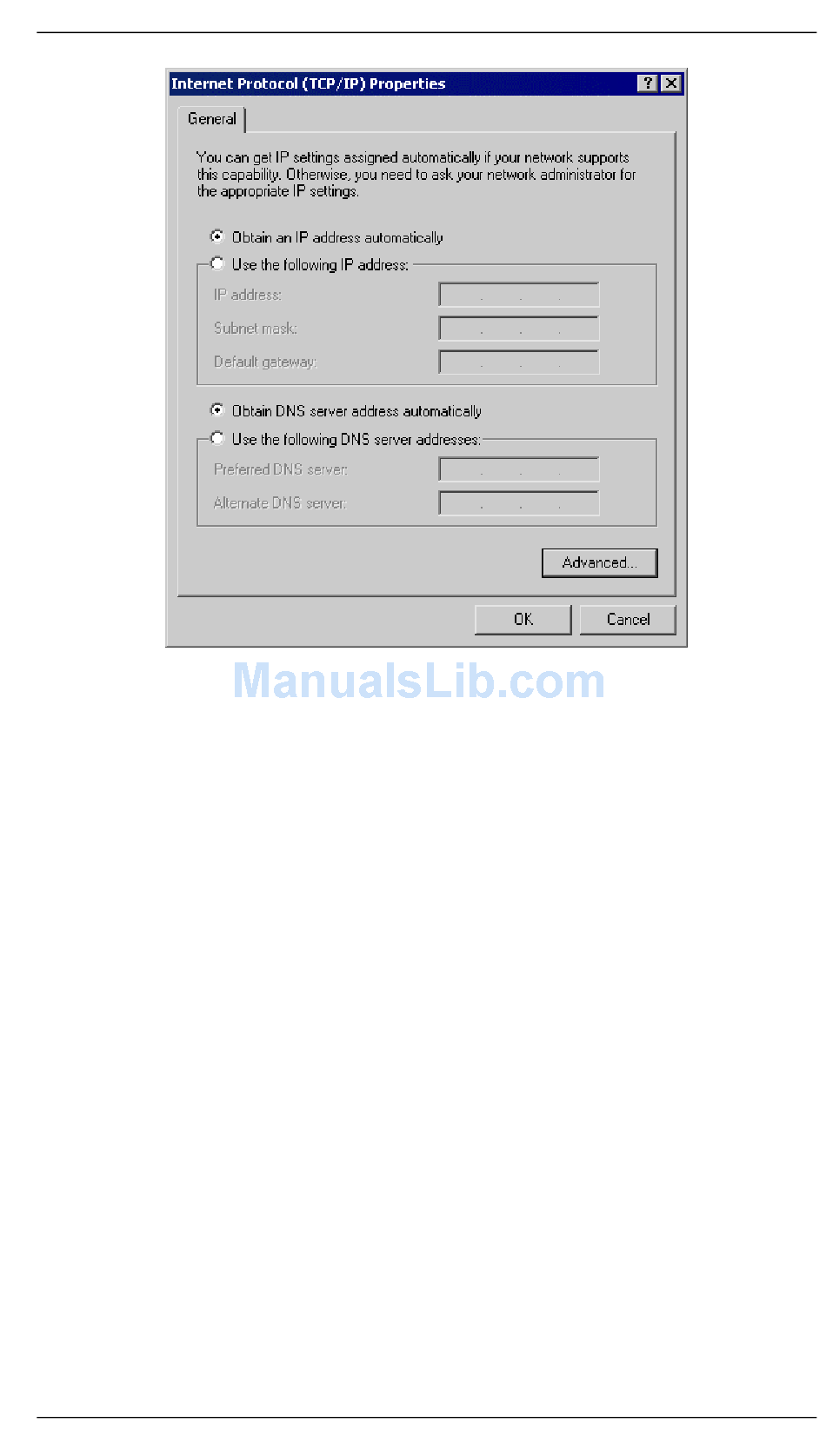

Figure 15: TCP/IP Properties (Win 2000)
PC Configuration
25
