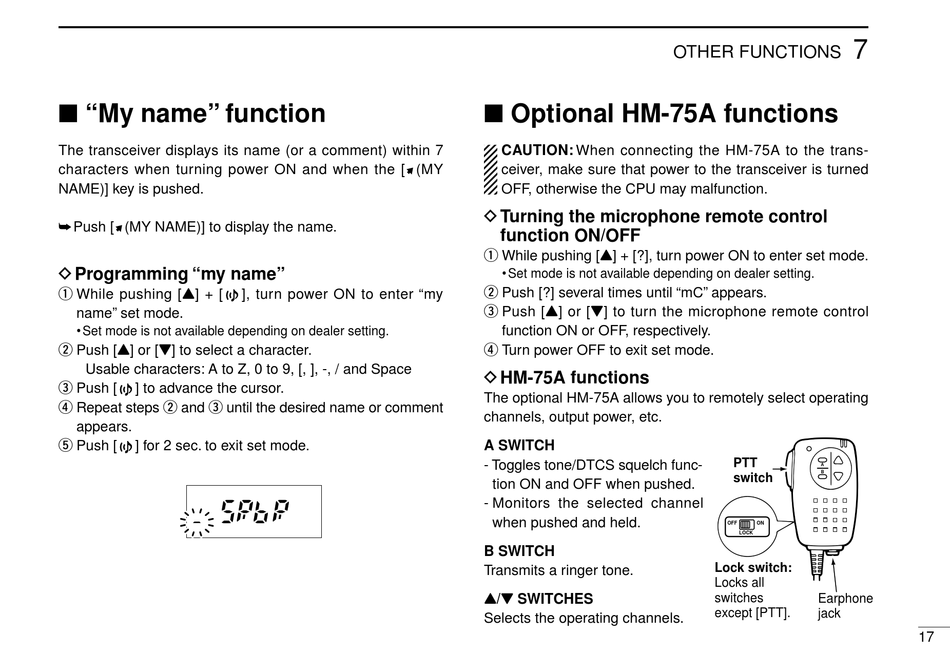

"My name" function

The transceiver displays its name (or a comment) within 7
characters when turning power ON and when the [
NAME)] key is pushed.
Push [ f (MY NAME)] to display the name.
D Programming "my name"
q While pushing [Y] + [
name" set mode.
• Set mode is not available depending on dealer setting.
w Push [Y] or [Z] to select a character.
Usable characters: A to Z, 0 to 9, [, ], -, / and Space
e Push [
] to advance the cursor.
r Repeat steps w and e until the desired name or comment
appears.
t Push [
] for 2 sec. to exit set mode.
f (MY
], turn power ON to enter "my

Optional HM-75A functions

CAUTION: When connecting the HM-75A to the trans-
ceiver, make sure that power to the transceiver is turned
OFF, otherwise the CPU may malfunction.
D Turning the microphone remote control
function ON/OFF
q While pushing [Y] + [?], turn power ON to enter set mode.
• Set mode is not available depending on dealer setting.
w Push [?] several times until "mC" appears.
e Push [Y] or [Z] to turn the microphone remote control
function ON or OFF, respectively.
r Turn power OFF to exit set mode.
D HM-75A functions
The optional HM-75A allows you to remotely select operating
channels, output power, etc.
A SWITCH
- Toggles tone/DTCS squelch func-
tion ON and OFF when pushed.
- Monitors the selected channel
when pushed and held.
B SWITCH
Transmits a ringer tone.
Y/Z SWITCHES
Selects the operating channels.

OTHER FUNCTIONS

PTT
A
B
switch
OFF ON
LOCK
Lock switch:
Locks all
switches
Earphone
except [PTT]. jack
7
17
