Parallel Port

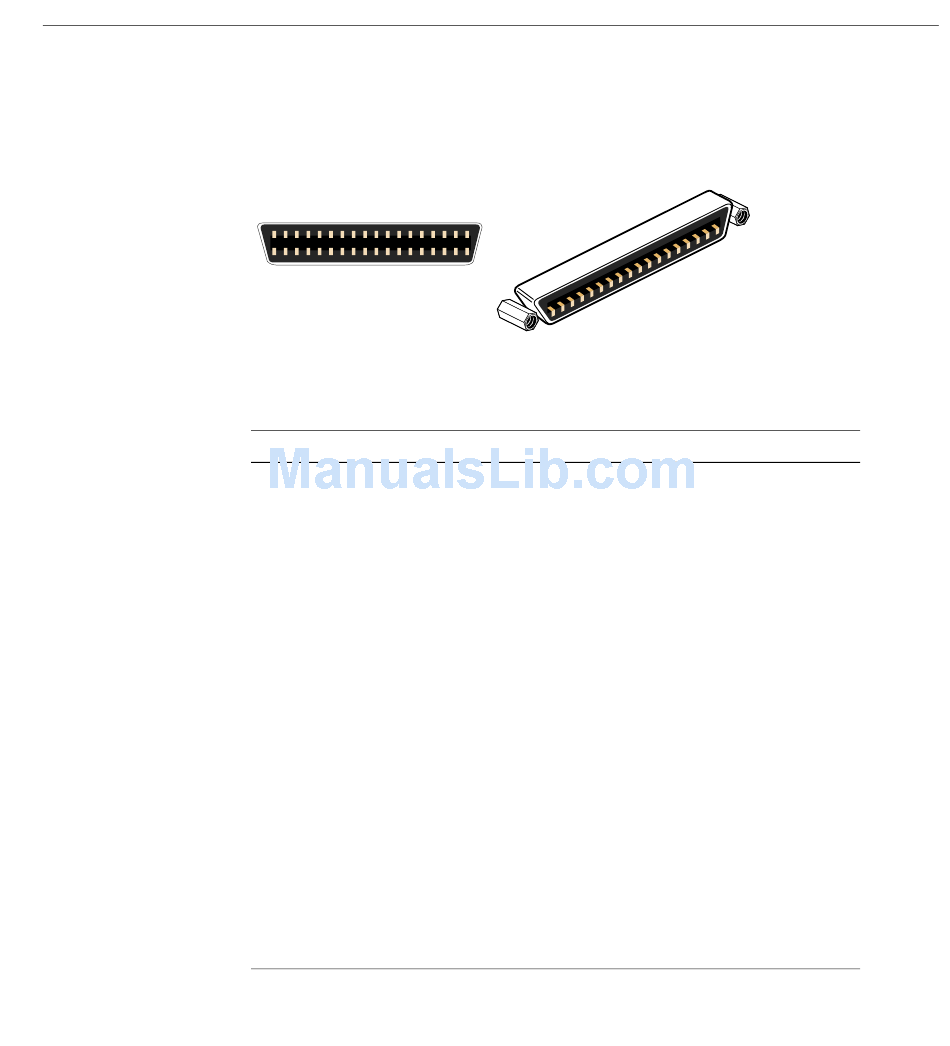

The following diagram shows the EEE 1284-C parallel port.
18 1
36 19
Table B-6 shows the cable pinout assignments for the IEEE 1284-C parallel port.
Table B-6 Parallel Port Pinout
Pin Assignment
1 BUSY
2 SELECT
3 nACK
4 nFAULT
5 pERROR
6 DATA 1
7 DATA 2
8 DATA 3
9 DATA 4
10 DATA 5
11 DATA 6
12 DATA 7
13 DATA 8
14 nINIT
15 nSTROBE
Pin Assignment
19 Signal ground (BUSY)
20 Signal ground (SELECT)
21 Signal ground (nACK)
22 Signal ground (nFAULT)
23 Signal ground (pERROR)
24 Signal ground (DATA 1)
25 Signal ground (DATA 2)
26 Signal ground (DATA 3)
27 Signal ground (DATA 4)
28 Signal ground (DATA 5)
29 Signal ground (DATA 6)
30 Signal ground (DATA 7)
31 Signal ground (DATA 8)
32 Signal ground (nINIT)
33 Signal Ground (nSTROBE)
Port Pinout Assignments
229
