Removing the PCI Module

4. Place a cap on the compression connector on the back of the PCI module, as shown
in Figure 4-10 (compression connector caps are included with the workstation).
Caution: Do not touch

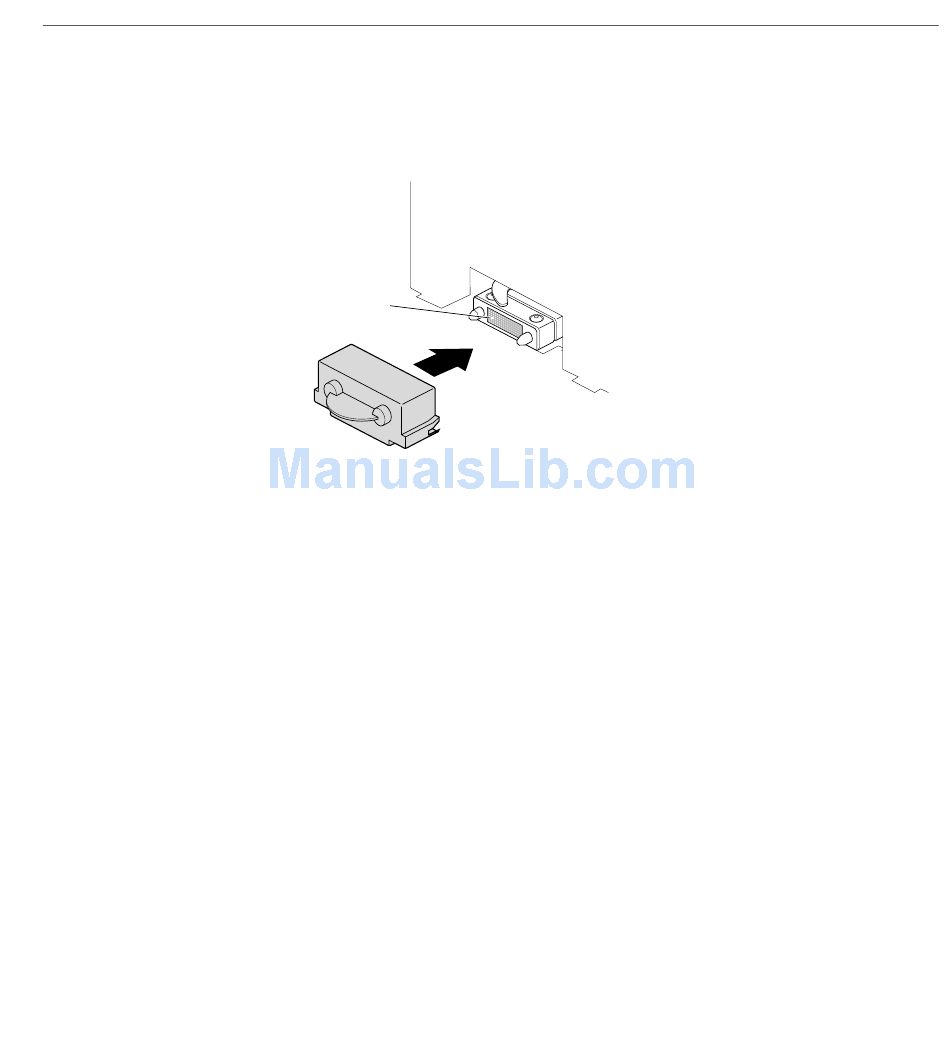

Installing a Cap on the Compression Connector
Figure 4-10
77
