Chapter 2: Installing and Removing the CPU and Memory

Removing the System Module

36
1. Use the provided Phillips screwdriver to loosen the two captive screws that secure
the sliding handles to the workstation, as shown in Figure 2-5.

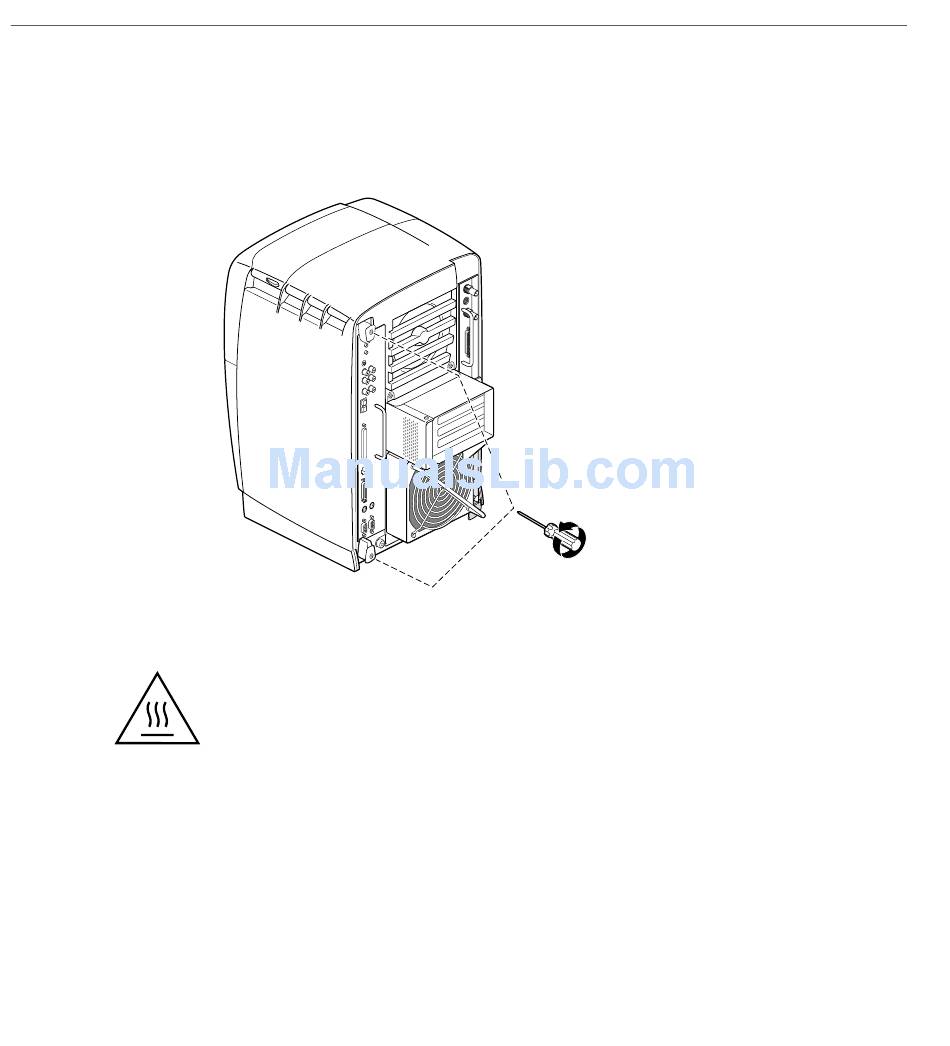

Loosening the System Module Screws
Figure 2-5
Warning:
The heat sinks on the CPU and system module get very hot. Wait 5
minutes after powering off your workstation before you remove the system
module. Test before touching the CPU or heat sinks.
