Identifying a PCI Slot

PCI physical slots and PCI slots identified by the system software have the same
identification numbers (see Figure 4-13).
• The top slot is PCI ID #1.
• The middle slot is PCI ID #2.
The bottom (half-sized) slot is PCI ID #3.

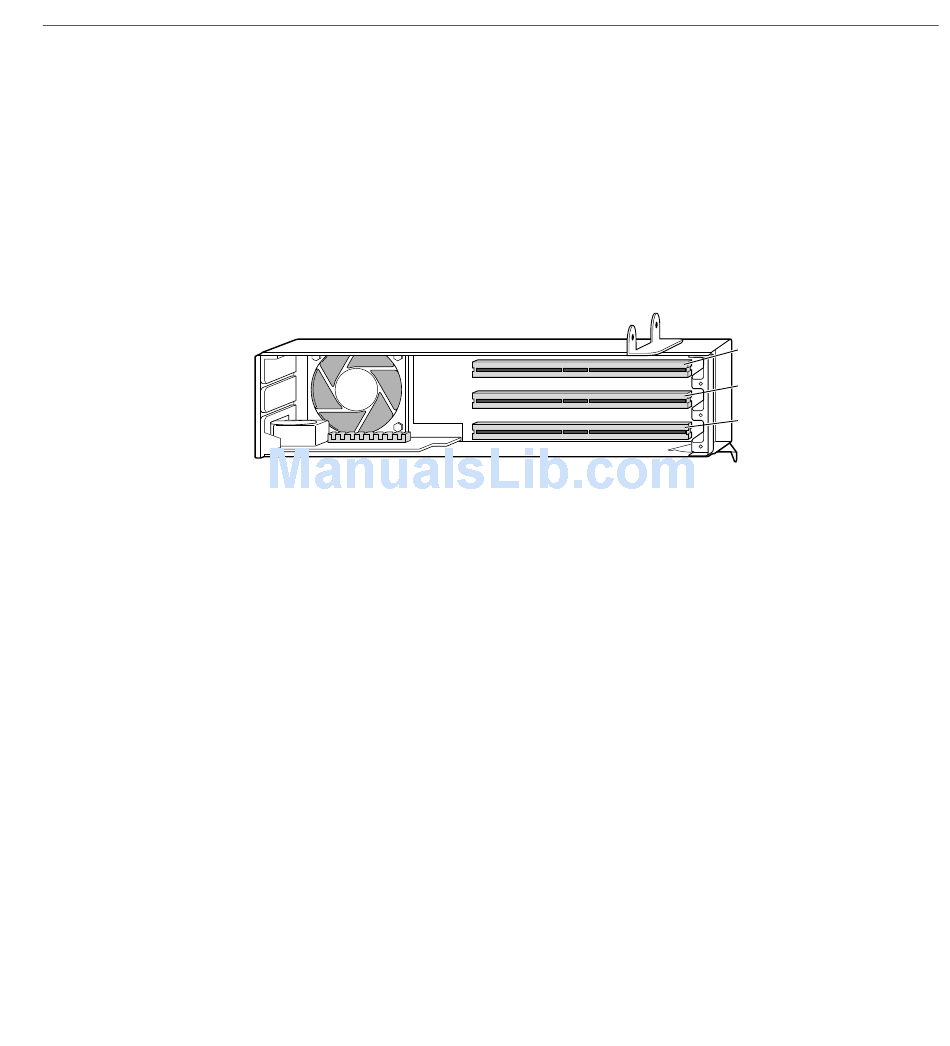

Identifying PCI Slots
Figure 4-13

Identifying a PCI Slot

PCI ID #1
PCI ID #2
PCI ID #3
