Chapter 7: Installing and Removing Internal Drives and Front Module Parts
184
4. Gently place the frontplane module face down on the antistatic bag, as shown in
Figure 7-24
To adjust the position of the frontplane module, handle it by the metal frame to
avoid damaging components.
If you are replacing the frontplane module with a new frontplane module, go to the
next section and remove the system identification module. You must remove the
system identification module from the old frontplane module and reinstall it on the
new frontplane module.
If you removed the frontplane module because you are replacing the system fan,
skip to "Removing the System Fan" on page 188.
System fan
Drive bays
System identification
module

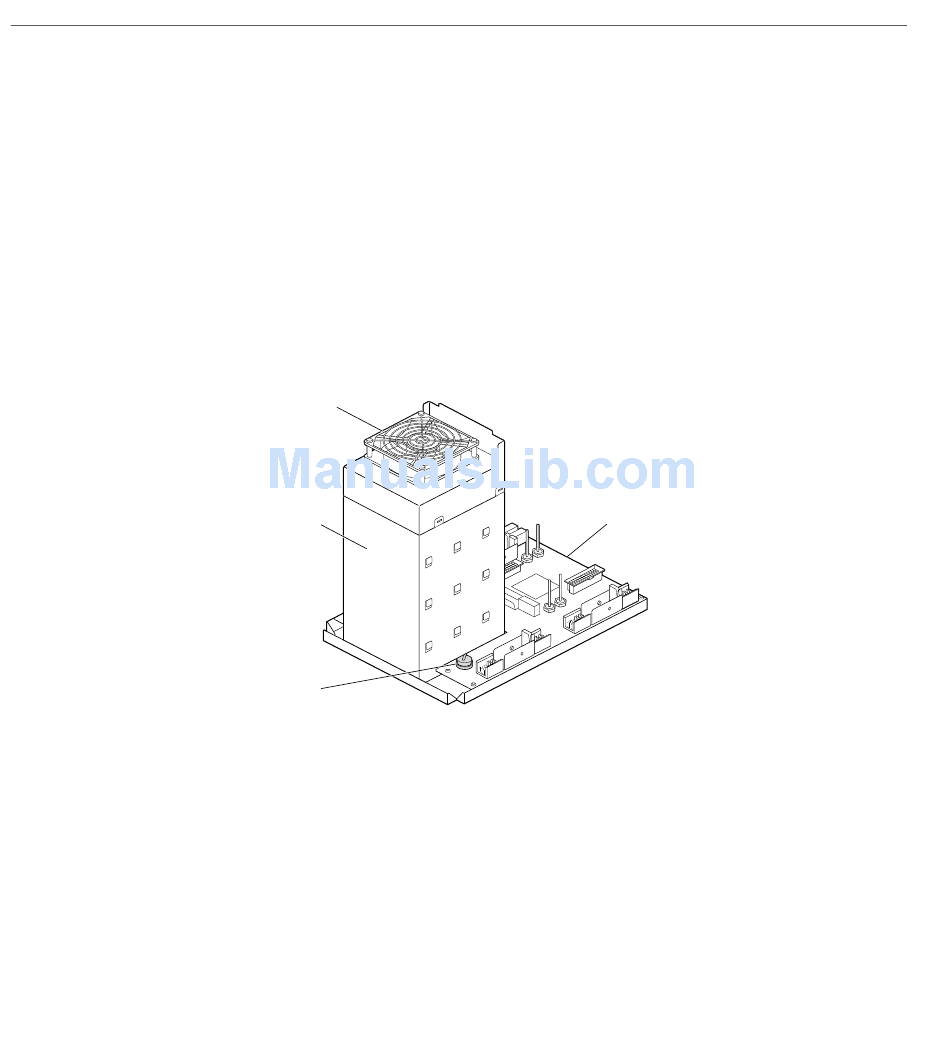

Figure 7-24 Placing the Frontplane Module Face Down on a Clean Surface
Metal frame
