Cabling the Devices

Caution: Ultra and Fast SCSI devices require higher quality cables than earlier SCSI
devices. Use the cable and active terminator included with the device. Using other types
of cables or terminators can cause your system to malfunction.
1. Choose the required SCSI cable to connect your external SCSI device.
Caution: Exceeding the maximum 1.5 or 3 meters combined cable length
recommended for your SCSI type can cause your external SCSI devices to operate
unreliably (see Table 6-3 for maximum cable length for each type of device or
combination of devices).
2. Connect the fastest SCSI device or devices to your workstation and to each other,
then connect slower devices at the end of the chain. See Figure 6-4.
8-bit SCSI device 8-bit SCSI device
50 50
50-pin active
terminator
68-pin high-density
to 50-pin Centronics

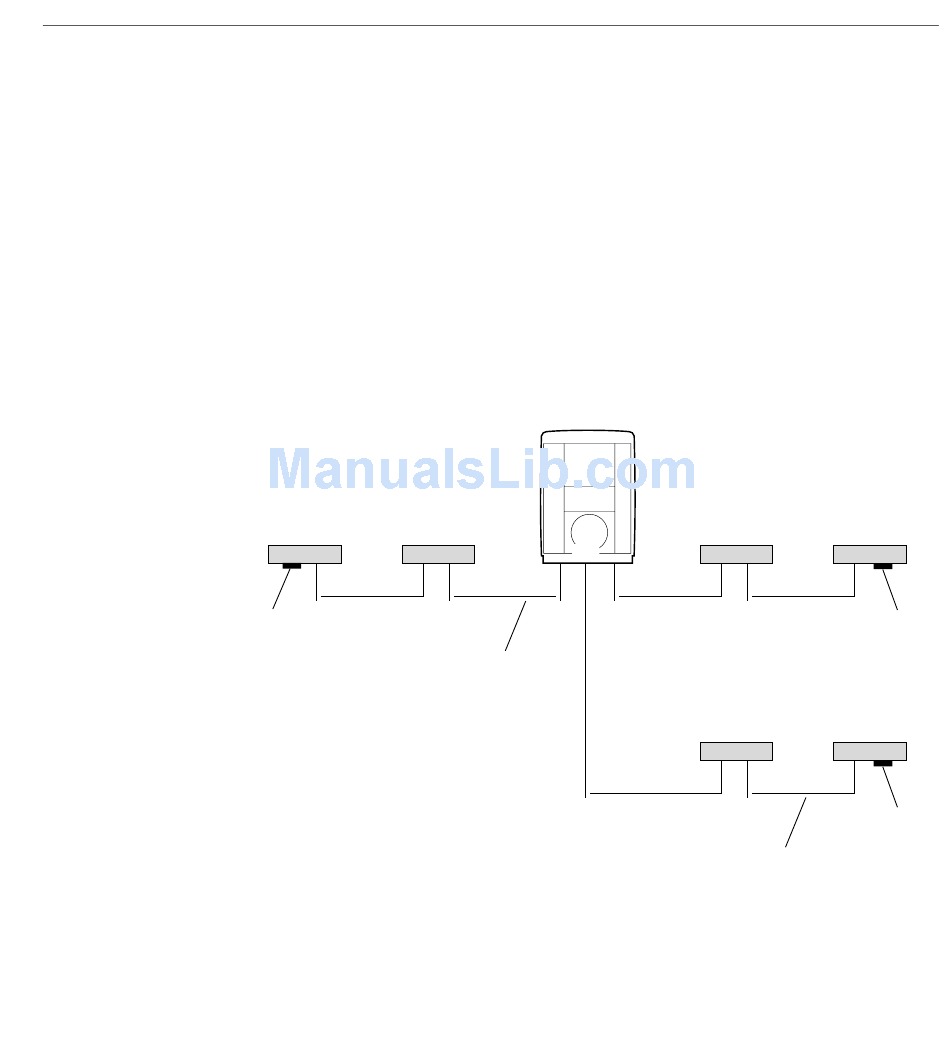

Figure 6-4 Using the Correct Cables between Devices and/or the Octane2 Workstation
OCTANE2
68
50
or or
Installing External SCSI Devices
16-bit Ultra 16-bit Ultra
SCSI device SCSI device
68 68 68
16-bit Ultra
8-bit SCSI device
SCSI device
68 68 50
68-pin high-density
to 50-pin Centronics
68-pin active
terminator
50-pin active
terminator
