Chapter 6: Installing and Removing External Devices
154
9. Power on your workstation. For instructions, see "Powering On the Octane2
Workstation" on page 157.

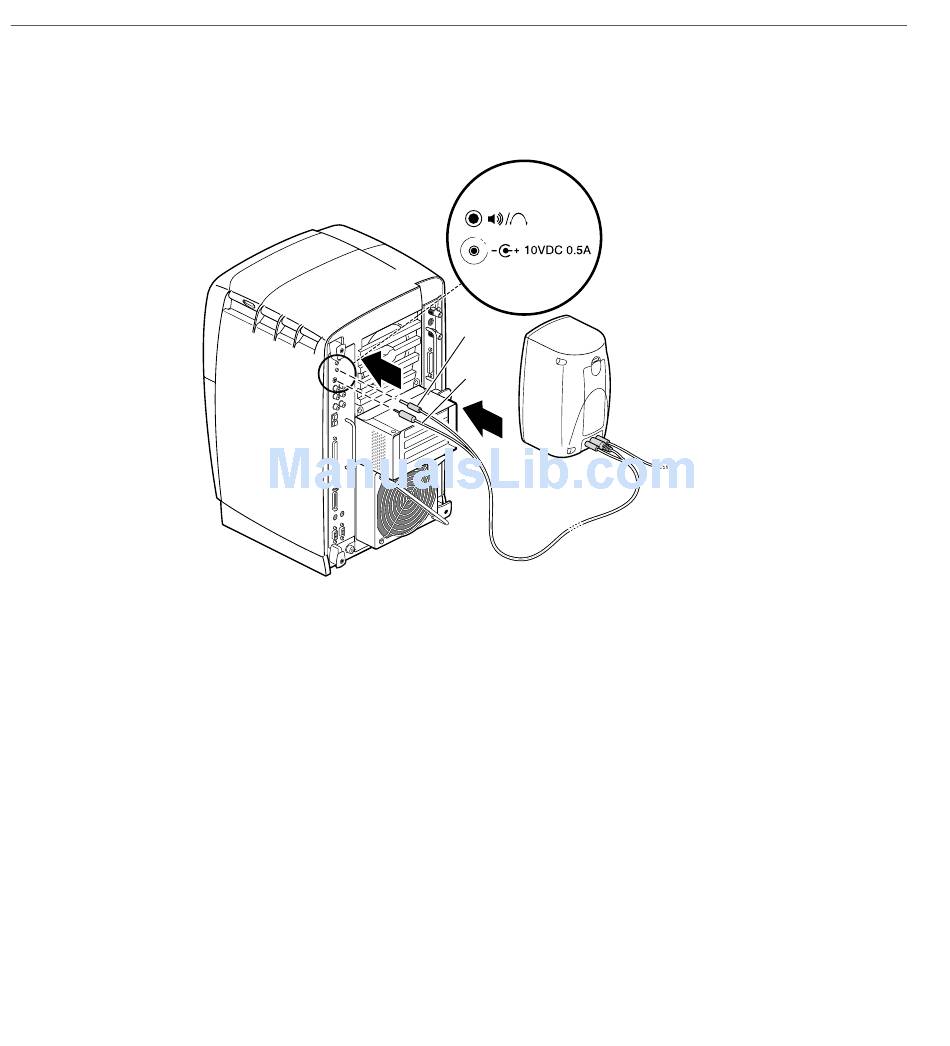

Figure 6-18
Attaching the Speaker Cables to the Octane2 Workstation
For pinout and technical information, see Appendix B, "Technical Specifications" or
Octane2 Hardware Central.
About Analog Line Level Audio
You can identify the analog line level audio ports as follows:
•
Red is right
•
White is left
•
Input is upper
•
Output is lower
