Figure 4-31 Inserting The I/O Door Screws; Figure 4-32 Inserting The I/O Blank Panel - Silicon Graphics Octane2 Owner's Manual

4. Insert, but do not tighten, the screws securing the I/O door to the PCI module, as
shown in Figure 4-31.

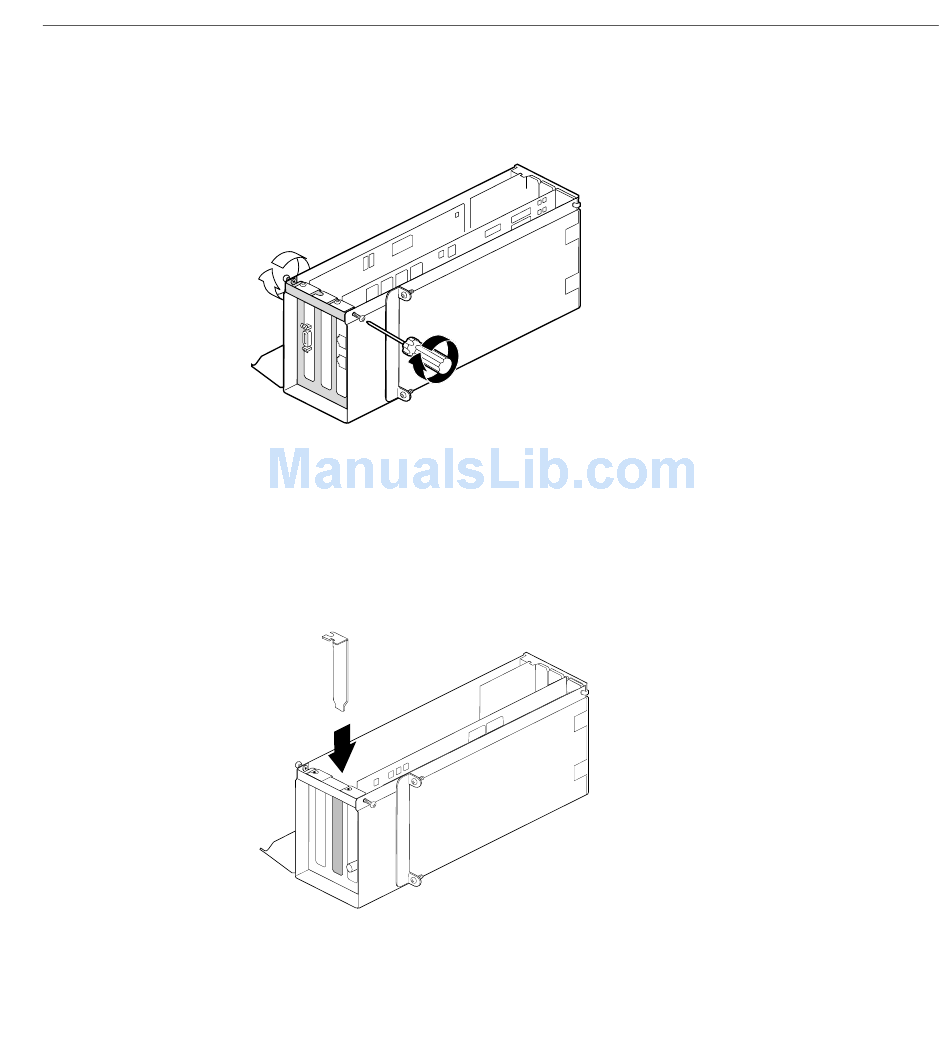

Figure 4-31 Inserting the I/O Door Screws
5. Install an I/O blank panel in the I/O door in place of the PCI board, as shown in
Figure 4-32.
Use the knobs on the back of the blank panel to position it. Make sure you place the
tip of the I/O blank panel inside the groove at the bottom of the PCI module. Do not
position the tip outside the groove.
Figure 4-32 Inserting the I/O Blank Panel
Removing a PCI Board
