Chapter 4: Installing and Removing PCI Boards
102

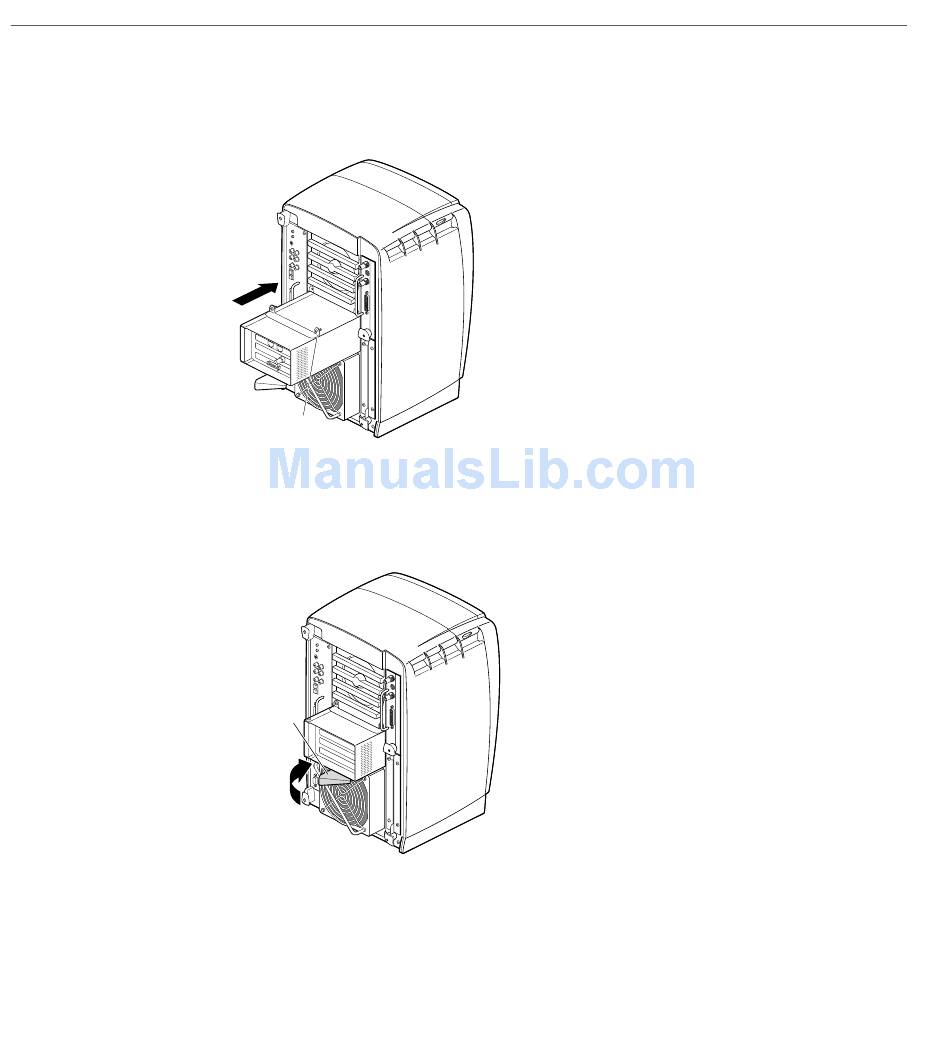

5. Insert the PCI module in your workstation, as shown in Figure 4-49, then push it
until the tabs are flush with the chassis.
Tab
Installing the PCI Module
Figure 4-49
6. Close the release lever by pushing it to the left until it is parallel with the PCI
module, as shown in Figure 4-50.
Release lever
Figure 4-50 Closing the Release Lever
