Usage and storage of thermal paper

The Euro-200TE printer prints on paper 57 mm wide.
Journal paper storage recommendations:
• do not expose thermal paper to direct light,
• air humidity max. 40 to 60 %,
• store at temperature not higher than 40°C, the best is room temperature from 18 to 25 °C,
• avoid contact of thermal paper with PVC, mollificators, organic solvents or glue.
It is necessary to use good quality paper rolls.
If usage or storage recommendations are not followed, Elcom s. r. o. does not guarantee high quality prin-
ting or preservation of printed data.
Change the paper roll immediately, if the red colour stripe marking the paper end appears at the paper
ribbon. Late change of the paper roll can cause the damage of the printer or it can shorten the printer's
lifetime.

CUSTOMER DISPLAY SLIDE-OUT

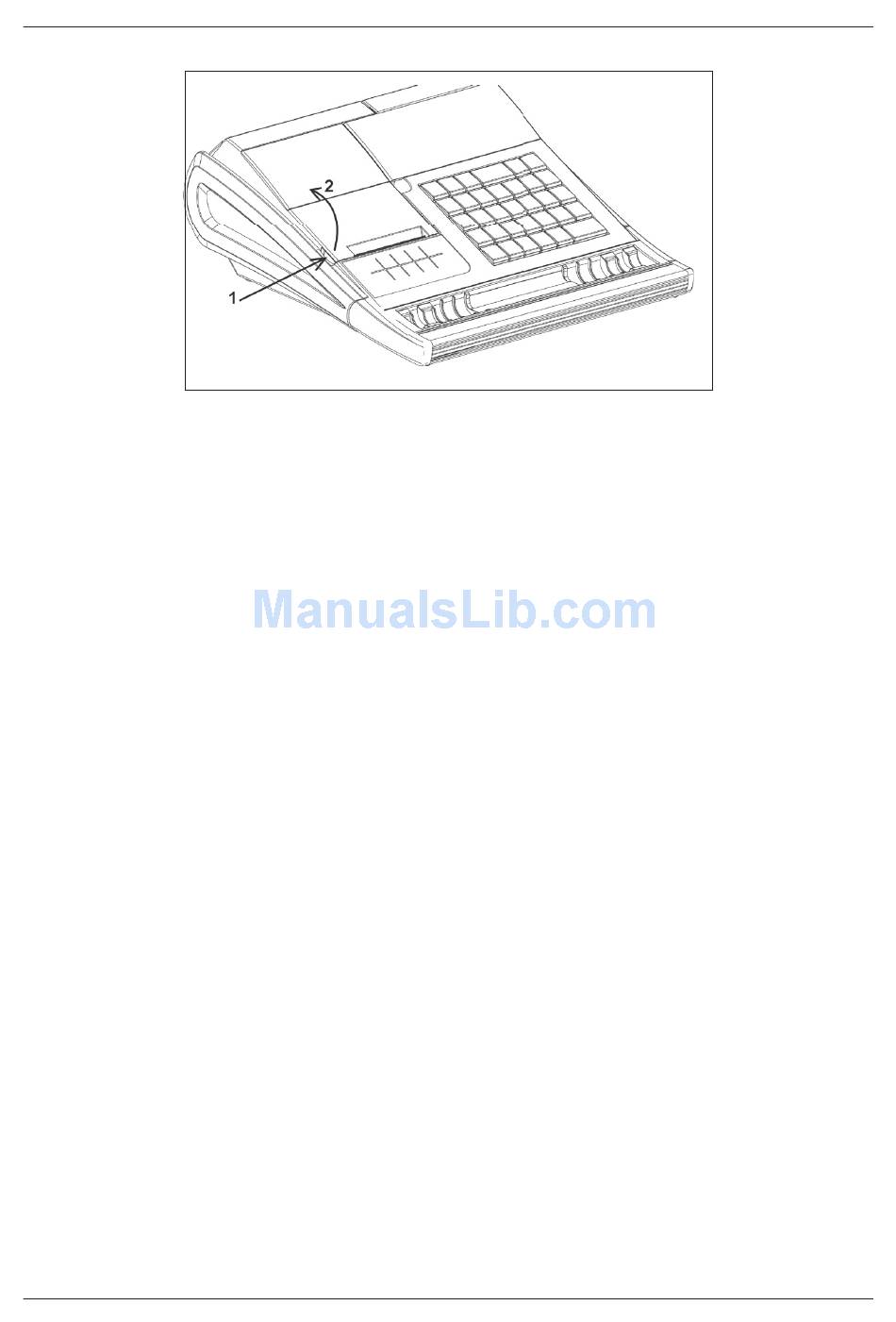

• open the tape cover (Figure 2.10)
• grab customer display at the places marked with arrows no.1 (Figure 2.11) and pull it upwards
• display is fixed in max. position. To get in to this position you have to pull it out till you will hear click.
• in this position you can turn it within 270°
Figure 2.10 - Opening of tape cover
Cash register characteristics
25
