ELCOM
Euro-2500T
User manual

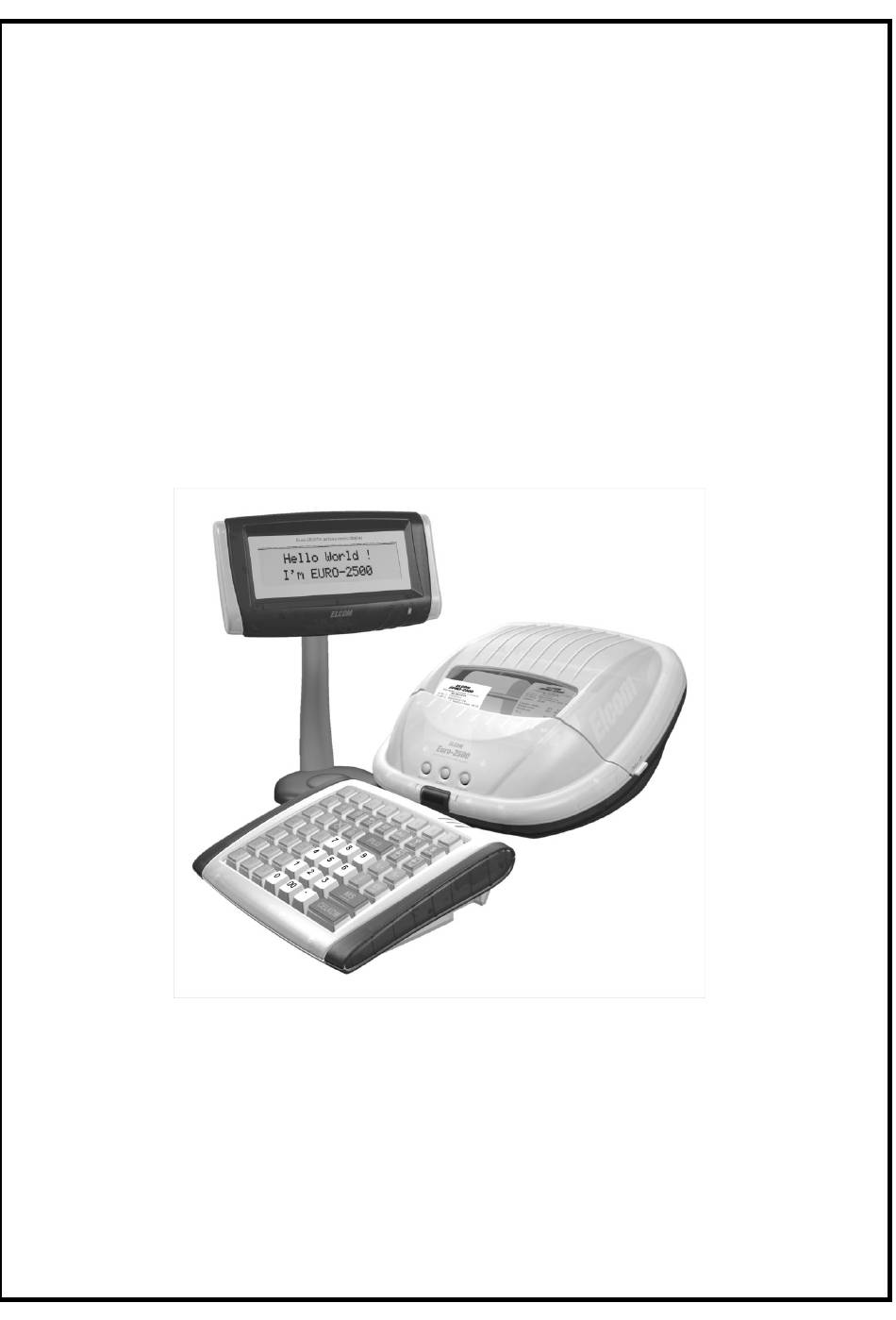

Version 1.32
This manual, or any part, must not be copied or distributed without the
consent of the Elcom company.
All rights of Elcom Ltd. are reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Euro-2500T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ELCOM Euro-2500T

Summary of Contents for ELCOM Euro-2500T

  • Page 1 ELCOM Euro-2500T User manual Version 1.32 This manual, or any part, must not be copied or distributed without the consent of the Elcom company. All rights of Elcom Ltd. are reserved.
  • Page 2 Table of Contents 1 Introduction ........................2 Cash register characteristics ..................3 PROGRAM MANUAL ....................
  • Page 3 Euro 4 Operation manual in registration mode ..............
  • Page 4 5 REPORTS .........................
  • Page 5 6 SOFTWARE Eurosoft ..................... 7 OPTIONAL ACCESSORIES ................... 8 HELP ..........................
  • Page 6 • Do not operate the cash register with wet hands unless you have a special wet cover. Water could seep into the interior of the Euro-2500T and cause component failure. • Clean the cash register with a dry, soft cloth. Never use such cleaning agents as petrol or solvents.
  • Page 7 • Only CE certificated equipments can be connected to the Euro-2500T cash register. In the case of not using CE certificated equipments Elcom company is not responsible for any damages or CE incompliance of the whole system. Please contact your authorized...
  • Page 8 Goods DPT1 DPT2 DPT3 DPTn Dairy products Sweets Pastry Alcohol PLU1 PLU5 PLU9 PLUn Fruit yogurt Nut chocolate Wholemeal Napoleon 0,5L PLU2 PLU6 PLU10 PLUn Skimmed milk Toffee Beer PLU3 PLU7 PLU11 PLUn Waffers Colby cheese Soya bread Russian vodka PLU4 PLU8 PLU12...
  • Page 9 EAN-13 EAN-8...
  • Page 10 2 Cash register characteristics Receipt gap Top ECR cover Cashier display Keyboard Journal shifting Receipt shifting Customer display Rear connector panel Power...
  • Page 11 The Euro-2500T Euro-2500T characteristics DPT, PLU, financial, cashiers, Destination NotPortable Reports total, periodical, hour, stock PLU number 9000 + stock Department Cashiers Cashier display Alphanum. 2x20 char.+backlight Cashiers login Password, access authority 12 characters LCD Customer display VAT levels PC interface...
  • Page 13 Warning : Cashier alphanumeric display must be connected to DISP1 !
  • Page 14 External keyboard connector...
  • Page 17 12>00>00 FRIDAY 01/01/1999 12 00 00...
  • Page 18 12>00>00 FRIDAY 01/01/1999 X MODE 12>00>00 X MODE Z MODE 12>00>00 Z MODE PROGRAMMING MODE 12>00>00 PROGRAMMING MODE P TRAINING MODE T 12>00>00 TRAINING MODE T...
  • Page 20 It is necessary to use rolls of good quality paper. We recommend paper rolls made by Jujo Thermal Ltd. In the event of violating these use or storage recommendations, Elcom s.r.o. does not guarantee high quality printing or preservation of the printed data.
  • Page 21 © Elcom Ltd. Euro-2500T Program manual 3 Program manual Euro-2500T...
  • Page 22 Program manual Euro-2500T © Elcom Ltd. Memory clearing 12:10:21 Programming mode P Memory Enter Enter time clearing date Memory clearing ENTER DATE 010199 ENTER TIME 1200 12:00:00 Programming mode P...
  • Page 23 © Elcom Ltd. Euro-2500T Program manual System flags Taxes Receipt head Cashiers name Function texts Add-ons and discounts Departments (DPT) Sale units PLUs Programming mode...
  • Page 24 Program manual Euro-2500T © Elcom Ltd. Skip fla g Flag parameters Next flags sys. flag 0 0 1 1 1 2 From flag No.1 Flag Number Continue in flags programming...
  • Page 25 © Elcom Ltd. Euro-2500T Program manual 002222 103260 0010001 Note: Maximum Cash Register number allowedn for RS-485 communication is 32.
  • Page 26 Program manual Euro-2500T © Elcom Ltd. 3.3.7 Flag 4 - Required operations 1000 Default setting flag # —— > < —— value Subtotal amount printing after Subtotal key is pressed 0 - no 1 - yes Required Subtotal key pressed before receipt is finished...
  • Page 27 © Elcom Ltd. Euro-2500T Program manual 00100 1200 010199 Note: The cash register handles leap years and adjusts number of days in the month automatically. The cash machine is also adapted to Y2K.
  • Page 28 Program manual Euro-2500T © Elcom Ltd. 1.tax level RATE 6.00% Note: The tax rate can be changed only if the “Z” daily and “Z” periodic report have been made. 1.tax level NAME VAT 6%...
  • Page 29 © Elcom Ltd. Euro-2500T Program manual...
  • Page 30 Program manual Euro-2500T © Elcom Ltd. Skip line From line No.1 Character codes Line number Next lines 1.logo line Elcom s.r.o. Note: Before text programming, it is recommended that hexadecimal strings, representing texts, be prepared on a sheet of paper. The character table sorted in alphabetic order will make finding corresponding hexadecimal codes much faster.
  • Page 31 © Elcom Ltd. Euro-2500T Program manual 1.cashier NAME Cashier 1.cashier PASSWORD 0001...
  • Page 32 Program manual Euro-2500T © Elcom Ltd. 1111 1.cashier ACCESS 1111 Note: It is impossible to cancel the access authority of Cash- ier No. 1 to “P” mode.
  • Page 33 Character codes Function text number The next function text programming 1.Function text CASH Note: The Euro-2500T cash register permits preprogramming names of basic operations listed in the receipt. The following table provides the default settings that can be programmed as needed.
  • Page 34 Program manual Euro-2500T © Elcom Ltd.
  • Page 35 © Elcom Ltd. Euro-2500T Program manual Skip item 012... Next add-on or discount item 1.add on limit _! Skip item Department 1-8 Price Flag Name Department flag progr. Department name progr. Next department...
  • Page 36 Program manual Euro-2500T © Elcom Ltd. 1.DPT PRICE 10.00 1.DPT FLAGS 00038 00038...
  • Page 37 © Elcom Ltd. Euro-2500T Program manual 1.DPT NAME F O O D S...
  • Page 38 Programming of the next sales unit 2. sales unit Note: The Cash register Euro-2500T allows you to set up eight sales units that can be assigned to each PLU. The following table shows the default setting that can be modified by the described programming.
  • Page 39 © Elcom Ltd. Euro-2500T Program manual...
  • Page 40 Program manual Euro-2500T © Elcom Ltd. Skip PLU PLU number 1 - 2400 Price PLU 1st flag programming PLU 2nd flag programming PLU name programming PLU bar code programming Next PLU price programming 00001.PLU PRICE 10.00 00001.PLU FLAG1 01000...
  • Page 41 © Elcom Ltd. Euro-2500T Program manual 01000 Note: Setting the PLU as a descriptive type, the PLU can be sold, the printer will print out its name but no financial data is accumulated. 00001.PLU FLAG2 0010118...
  • Page 42 Program manual Euro-2500T © Elcom Ltd. 00010118 00001.PLU NAME Pepsi cola...
  • Page 43 © Elcom Ltd. Euro-2500T Program manual 00001.PLU BAR CODE 8586001760034 DUPLICATE CODE 8586001760034 BAR CODE SORTING PLEASE WAIT Note 1: If you switch off the register during the sorting, you can continue sorting by switching the regis- ter back on.
  • Page 44 Program manual Euro-2500T © Elcom Ltd. Note 3: The default setting of flag no. 5 corresponds to Metrologic bar code readers( MS 951, MS 6720, MS 700 a MS 860 ). Procedure: Read the following bar codes from the scanner programming manual: 1.
  • Page 45 © Elcom Ltd. Euro-2500T Program manual From PLU number 1 Skip PLU new stock stock PLU number add quantity substract quantity Next PLU stock programming 00001.PLU STOCK 118.000 Note 1: if you enter an integer, you need not enter decimal places, just the enter integer and press è...
  • Page 46 Program manual Euro-2500T © Elcom Ltd. Euro Euro Euro Euro Euro Euro Euro Euro Euro 2 0 0 1 EUR rate Euro Euro Euro Euro Euro a national Euro Euro 2 0 0 2...
  • Page 47 © Elcom Ltd. Euro-2500T Program manual Euro Euro Euro Euro Euro 2 0 0 3 EUR rate Euro Euro Euro...
  • Page 48 Program manual Euro-2500T © Elcom Ltd. Note: To program hexadecimal codes, use department buttons 1 to 6 to enter A - F characters respectively. Enter digits 0-9 enter by means of the numeric keyboard. Program e.g. the text string “Coffee“ by entering the hexadecimal string 43 6F 66 66 65 65.
  • Page 49 © Elcom Ltd. Euro-2500T Program manual ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○...
  • Page 50 Registration mode Euro-2500T © Elcom Ltd. 4 Operation manual in registration mode 4.1 Before you start the day 4.1.1 Recommended procedures for managers at the beginning of the day: 4.2 Status and functions that should be known before the begin- ning of registration 4.2.1 Error warning...
  • Page 51 © Elcom Ltd. Euro-2500T Registration mode 4.2.3 Cashier log out button PASSWORD 4.2.4 Finalization of transaction 4.3 Samples of basic registration procedures...
  • Page 52 Registration mode Euro-2500T © Elcom Ltd. Sample registration: Logo (receipt head) Date Time Cashier`s name Cash register # Receipt consecutive number PLU name, Tax level, Total PLU price Amount, Unit price...
  • Page 53 © Elcom Ltd. Euro-2500T Registration mode 4.4 Registration by means of departments Note: By registration the numeric buttons etc. and the department buttons are used (see the keyboard layout figure). 4.4.1 Entries into departments A. Entries into departments by entering the unit price.
  • Page 54 Registration mode Euro-2500T © Elcom Ltd. 4.4.2 Repeated entries into departments Print: DPT 2 3120 1x31.20 =31.20 DPT 2 1x31.20 =31.20 DPT 2 1x31.20 =31.20 4.4.3 Multiplication entries into departments Example: The customer buys 12 of the same item at 16,20 Sk:...
  • Page 55 © Elcom Ltd. Euro-2500T Registration mode 4.4.5 Successive multiplication entries into departments Example: The price is determined per square meter. Your customer buys 3 by 5 square meters. Print: DPT 2 3x5x31.20 =468.00 3120 4.4.6 Single item entries into departments Example: In some services often only one item is sold (cigarettes).
  • Page 56 Registration mode Euro-2500T © Elcom Ltd. Print: 2890 DPT 4 1x28.90 =28.90 4.5 PLU entries 4.5.1 Basic PLU entries Print: Gentian cheese 1x27.00 =27.00 Rama butter 1x31.20 =31.20 SUBTOTAL 58.20 ---------------------------------------------- TAXABLE VAT 6% 58.20 VAT 6% 3.30 TOTAL 58.20...
  • Page 57 © Elcom Ltd. Euro-2500T Registration mode 4.5.2 Multiplication PLU entries Example: same PLU with a price of 16,20 each. Print: Eggs 12x16.20 =194.40 Note: This feature helps when you enter a large quantity of items or need to enter quantities that contain decimals (1,5 ;...
  • Page 58 Registration mode Euro-2500T © Elcom Ltd. 4.5.5 Split-pricing PLU entry Example: The price is determined for a packet of 5 pieces of the same goods (e.g. a box of cheese) at the price of 15,60Sk. The customer buys only 3 pieces. Thus, he is to pay three fifths of the unit price of the whole box (5 pieces).
  • Page 59 © Elcom Ltd. Euro-2500T Registration mode Waiting for reply COMMUNICATION ERROR REPEAT Y}CR|{N}X| Wait for transaction cofirmation CARD NOT ACCEPTED PAYMENT NOT ACCEPTED PROCESSING ERROR...
  • Page 60 Registration mode Euro-2500T © Elcom Ltd. If the operator wants to complete the purchase with another means of payment, the first offer is the credit payment without EFT terminal communication. This can be done by pressing the key. If the credit card number is required (4.
  • Page 61 © Elcom Ltd. Euro-2500T Registration mode 4.6 Other registrations 4.6.1 Registration by bar code A. Registration by bar code scanner. A bar code scanner can be connected to the cash register. Information is registered simply by scanning the bar code.
  • Page 62 Registration mode Euro-2500T © Elcom Ltd. 4.6.2 Registration by external PC keyboard The standard PC keyboard can be easily connected to cash register Euro-2500T. External PC keyboard layout. Note: Ask your local dealer for more information on external PC keyboard connection.
  • Page 63 A. PC ON-LINE mode: The data is transmitted from PC to ECR. The Cash register software allows the use of the Euro-2500T as a fiscal printer. The ECR replaces the POS printer and the PC fiscal module. That means that the cash register prints the receipt based on data from your PC software.
  • Page 64 B. PC ON-LINE mode: The data is transmitted from ECR to PC. The cash register software allows the use of the Euro-2500T ON-LINE information source for PC. This allows transmission of the sales data to PC for processing. It allows the preparation of the Invoice or delivery note by the PC according to information from the ECR.
  • Page 65 © Elcom Ltd. Euro-2500T Registration mode Print: Step No. Key operation DPT 2 1250 1x12.50 =12.50 VOID DPT 2 1350 1x12.50 =-12.50 DPT 2 1x13.50 =13.50 Display: /12.50 VOID Void operation. B: Correction of the previous entries (indirect void) You can void any previous entries (not the last). Pressing the special keys, you can display any previous entry.
  • Page 66 Registration mode Euro-2500T © Elcom Ltd. Example No. 2: The void of the whole receipt, subtotal, can be used for the total clearing of a registered purchase. It can be used only before pressing the key Step No. Key operation...
  • Page 67 © Elcom Ltd. Euro-2500T Registration mode Display: 1.60 ADD ON _! Add on operation display. Example 2: Other than preprogrammed rate (10%) entry. Print: Step No. Key operation DPT 2 3120 1x31.20 =31.20 ADD-ON %+ 10.00% 3.10 Note 1: The entering of the add on value from the keyboard is possible if the value is lower than the preprogrammed limit (3.12).
  • Page 68 Registration mode Euro-2500T © Elcom Ltd. 4.9 Printing a reference number or customer number Certain transactions require that a reference number be printed on the receipt. If a reference number is required, use the (DRAWER) button. Step No. Key operation...
  • Page 69 © Elcom Ltd. Euro-2500T Registration mode Display: Brown ENTER NAME RA person name entering. Display: Initial cash ENTER REASON RA reason entering. Note: Entry of a person is name and reason are optional. If you do not need to enter this data, finish RA operation by double pressing of button (SUBTOTAL).
  • Page 70 Registration mode Euro-2500T © Elcom Ltd. Display: Brown ENTER NAME PO person name entering. Display: cashier change ENTER REASON PO reason entering. Note 1: Entry of a name and a reason are optional. If you do not need to enter this data, finish PO operation by pressing the button twice(SUBTOTAL).
  • Page 71 4.13 Accounting in Euro currency The Cash register Euro-2500T is able to register sales in Euro currency. According to the stage it is possible to account Euro and a particular national currency (stage1. and 2.) or any other foreign currency (3rd stage).
  • Page 72 Registration mode Euro-2500T © Elcom Ltd. Procedure: If the key is pressed, the amount of sale on display is in a national currency. If the key pressed, the amount of sale is converted to Euro currency. Pressing the key again will convert between national and Euro currency.
  • Page 73 © Elcom Ltd. Euro-2500T Registration mode Example: Cash PO 20000.00 DM in the 2nd stage of Euro currency. Step No. Press Receipt: WHO: Howard 200000 REASON: SIGNATURE: CASH Enter name - not obligatory 20000.00 DM Enter reason - not obligatory Note: The thruput into the second stage is described in the program manual of this user manual.
  • Page 74 Reports Euro-2500T © Elcom Ltd. 5 REPORTS 5.1 How to print out reports Two modes for printing reports are: “X“ mode and “Z“ mode. Use the reading mode “X“ when it is necessary to obtain sales information since the last resetting.
  • Page 75 © Elcom Ltd. Euro-2500T Reports 5.3.2 The PLU report 5.3.3 The financial report...
  • Page 76 Reports Euro-2500T © Elcom Ltd. 5.3.4 Cashier report 5.3.5 Total „X“ report 5.3.6 Periodical “X” report 5.3.7 Total „Z“ report 5.3.8 Periodical „Z“ report...
  • Page 77 © Elcom Ltd. Euro-2500T Reports 5.3.9 Hour report 5.3.10 Stock report...
  • Page 78 Reports Euro-2500T © Elcom Ltd. 5.4 How to print „X“ reports 12>00>00 X MODE Cashier Financial Departments department key ( Full PLU/Stock Individual PLU/Stock PLU number (1-9000) ( Range of PLU/Stock starting PLU number finishing PLU number Total Periodical Hour...
  • Page 79 © Elcom Ltd. Euro-2500T Reports 5.5 Samples of „X“ reports ****************** X ***************** ***************** X ***************** * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *...
  • Page 80 Reports Euro-2500T © Elcom Ltd. ***************** X **************** * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *...
  • Page 81 © Elcom Ltd. Euro-2500T Reports 5.6 How to print out „Z“ reports 1 2 > 0 0 > 0 0 Z MODE Full PLU/Stock Individual PLU/Stock PLU number (1-9000) ( PLU range/Stock starting PLU number finishing PLU number Total Periodical...
  • Page 82 Reports Euro-2500T © Elcom Ltd. 5.7 Samples of „Z“ reports Sat. 02-01-1999 Sat. 02-01-1999 01*0024 18:04:05 01*0023 18:02:01 Brown Brown ****************** **************** ****************** *************** * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *...
  • Page 83 © Elcom Ltd. Euro-2500T Reports ****************** **************** ***************** *************** * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *...
  • Page 84 Eurosoft software Euro-2500T © Elcom Ltd. 6 SOFTWARE EuroSoft Euro-2500 SOFTWARE Eurosoft for DOS...
  • Page 85 © Elcom Ltd. Euro-2500T Eurosoft software 6.1 Eurosoft basic characteristics 6.1.1 Basic characteristics of Eurosoft software • • • • • • 6.2 Installation of the EuroSoft software 6.2.1 Software installation from floppy disk Note1: During the installation the diskette must be set to “write enabled”.
  • Page 86 Eurosoft software Euro-2500T © Elcom Ltd. 6.2.2 Software installation from CD Note: You can download the recent version of EuroSoft from our internet web page www.elcom.sk. 6.3 How to start EuroSoft euro Note: 6.4 EuroSoft main menu Options Edit Transmission...
  • Page 87 © Elcom Ltd. Euro-2500T Eurosoft software 6.5 Options Options Edit Transmission Receive View Print Exit Count of decimal places... Printer... Serial port Transmission speed ECR type ECR number Change password Setting the number of decimal places for price: Note: To reach the correct data both in the cash register and sales reports, the setting in the computer must correspond to the setting of the sixth digit of the first system flag (FL1) on the register.
  • Page 88 Eurosoft software Euro-2500T © Elcom Ltd. Change password option: Note : If you need to cancel a password , enter the current one and during the entry and confirmation of the new one just press “ENTER”. 6.6 Edit Options Edit...
  • Page 89 © Elcom Ltd. Euro-2500T Eurosoft software 6.7 Transmission Receive Options Edit Transmission View Print Exit Logo... System flags... Clerks names... PLUs with store state... PLUs without store state Departments... Tax level settings... Texts... Units... Exchange rate... Graphic logo... AddOn and Discount...
  • Page 90 Eurosoft software Euro-2500T © Elcom Ltd. 6.8 Receive Receive Options Edit Transmission View Print Exit ECR programming Sale reports 6.8.1 Receipt of programmed data from ECR to PC. Receive Options Edit Transmission View Print Exit ECR programming Sale reports Logo...
  • Page 91 © Elcom Ltd. Euro-2500T Eurosoft software 6.8.2 Receipt of sales data from ECR to PC. Receive Options Edit Transmission View Print Exit ECR programming Sale reports Pred j é údaje Clerks... Reading PLU report Clearing PLU report Reading PLU with nonzero sale...
  • Page 92 Eurosoft software Euro-2500T © Elcom Ltd. 6.9 View and Print Logo... System flags... Clerks names... PLUs... Departments... Tax rates settings... Texts... Units... Exchange rate... PLU report Total report... Periodical report... Cashier report... Periodical cashier report... Department report... Periodical department report...
  • Page 93 Proscan and Metrologic scanners are recommended for use with the Euro-2500T cash registers. For other information, ask your local dealer. The price of the scanner is less if it is sold with the Euro-2500T cash register.
  • Page 94 203 mm (8”). 5V. 7.2 Cash drawer The Euro-2500T cash register can be connected to most cash drawers equipped with a 24V solenoid as the opening device. The register has a built-in interface for automatic cash drawer opening. If needed, you can...
  • Page 95 © Elcom Ltd. Euro-2500T Error messages and self tests 8 Help 8.1 Information and error messages If it is necessary to inform the operator of the state of the ECR, or the ECR enters an error state, the following information is displayed by means of the following messages:...
  • Page 96 Error messages and self tests Euro-2500T © Elcom Ltd. Message Meaning PRICE HALO LIMIT HALO limit over. O V E R Check the flags of DPT or PLU. ADD ON DISCOUNT Add on or discount amount limit over. Check the system flags.
  • Page 97 8.3 Self tests Self tests of the Euro-2500T register permit checking of its functionality simply and quickly. Self testing permits automatic checking of the functionality of electronic circuits, display segments, keyboard buttons, communication ports and printer.
  • Page 98 The end of the display test is signaliyed by a beep. You can continue testing other parts of the register. 8.3.2 Self-test of the printer The self-test of the printer prints identification data of the Euro-2500T on the receipt and journal. It prints the program version number, cash register configuration (number of departments and PLU) and the complete character set both in standard and double size.
  • Page 99 DECLARATION OF CONFORMITY EMC–Directive: 89/336/EEC We: Elcom Ltd. Námestie mládeže 3 SK – 080 01 Prešov, Slovakia declare on our own responsibility, that the product: Kind of equipment: Electronic cash register Type-designation: Euro-2500TX is in compliance with following norm(s) or document(s): EN 55022/1998 class B, EN 55024/1998 Prešov –...
  • Page 100 DECLARATION OF CONFORMITY EMC–Directive: 89/336/EEC Low voltage–Directive: 73/23/EEC We: Elcom Ltd. Námestie mládeže 3 SK – 080 01 Prešov, Slovakia declare on our own responsibility, that the product: Kind of equipment: AC/DC adaptor Type-designation: MW 1212 is in compliance with following norm(s) or document(s): EN 55014/4.1993, EN 61000-3-2/4.1995, EN 61000-3-3/1.1995...
