Cash register characteristics
Paper ribbons installation procedure for Euro-200T/TX (numbers according to Figure 2.9):
Open the tape cover (1), follow the picture below. Take out the paper tape separator (4) and install new
paper tape reel. Insert the separator with installed tapes into the bottom cover (3). Use the lever (10) to rele-
ase the printer roller and lift it up. Hold the ends of the ribbons over the upper cover (2), press the roller on
the original place and press the paper feed button (9) make sure that paper ribbons are installed properly.
Close the tape cover (1).

Usage and storage of thermal paper

The Euro-200T/TX printer prints on paper 28/38 mm wide.
Journal paper storage recommendations:
• do not expose thermal paper to direct light,
• store at temperature not higher than 40°C,
• avoid contact of thermal paper with PVC, mollificators, organic solvents or glue.
It is necessary to use good quality paper rolls.
If usage or storage recommendations are not followed, Elcom s. r. o. does not guarantee high quality prin-
ting or preservation of printed data.
Change the paper roll immediately, if the red colour stripe marking the paper end appears at the paper
ribbon. Late change of the paper roll can cause the damage of the printer or it can shorten the printer's
lifetime.

CUSTOMER DISPLAY SLIDE-OUT

• open the tape cover (Figure 2.10)
• grab customer display at the places marked with arrows no.1 (Figure 2.11) and pull it upwards
• display is fixed in max. position. To get in to this position you have to pull it out till you will hear click.
• in this position you can turn it within 270°
22

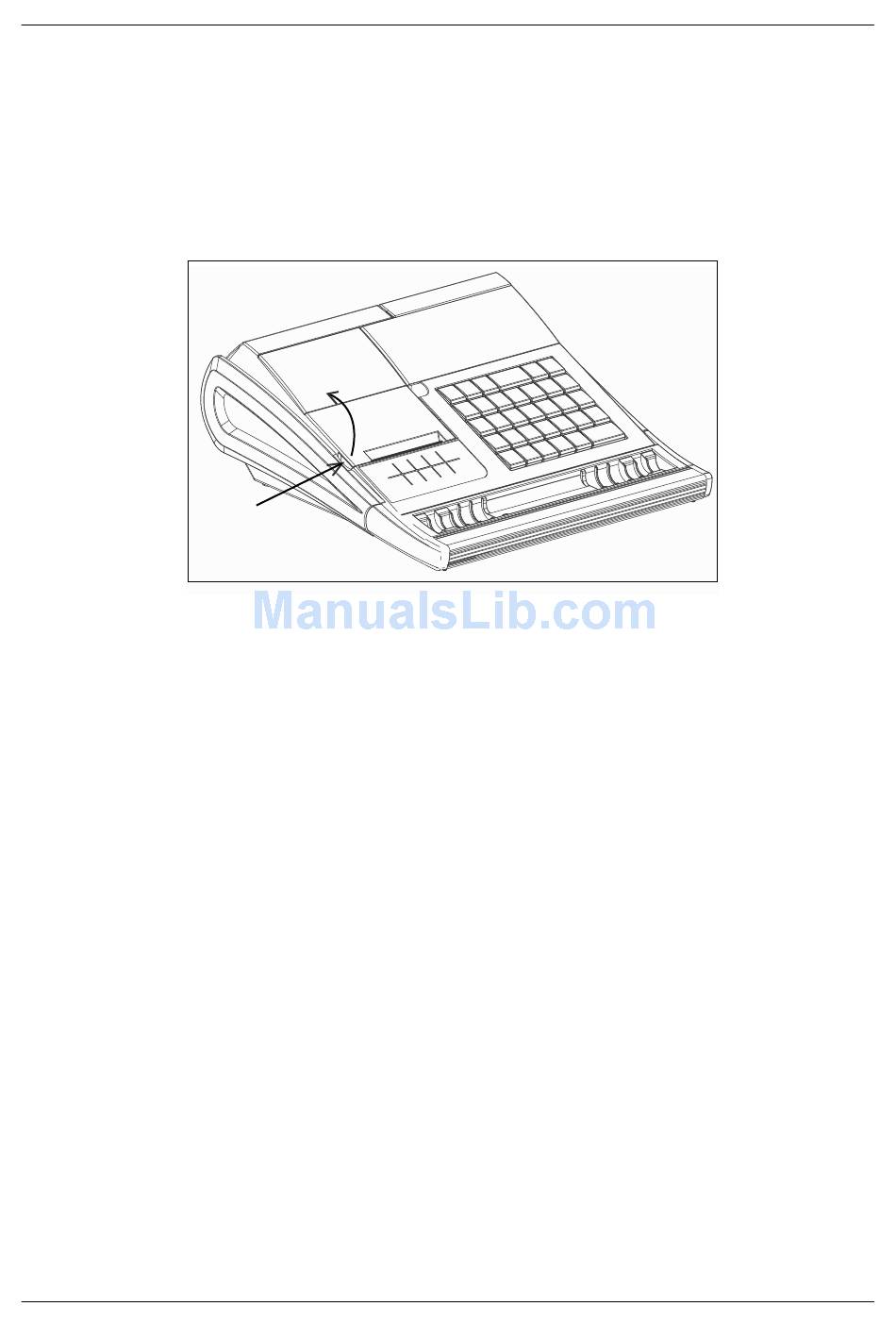

Figure 2.10 - Opening of tape cover.
2
1
