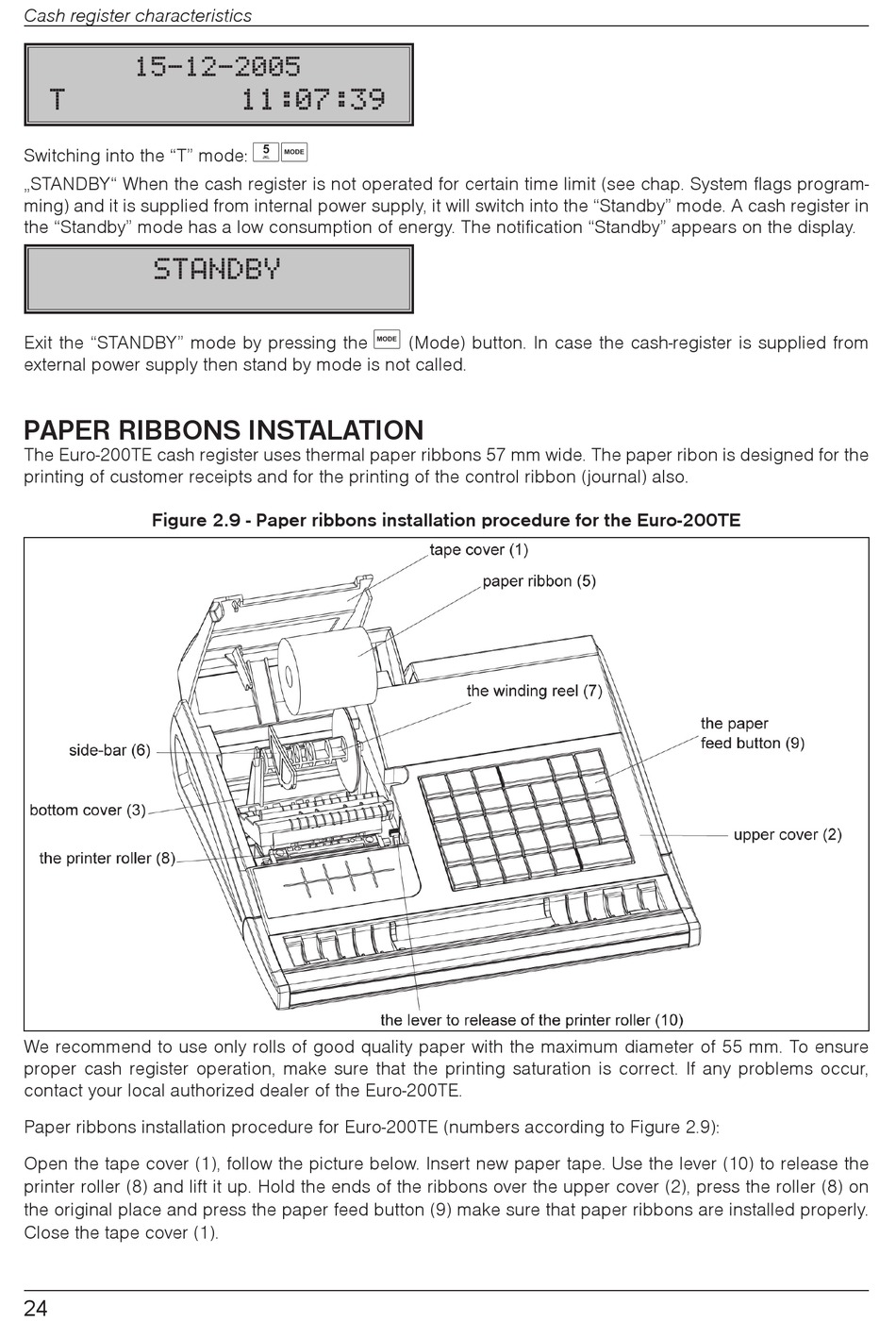

Paper Ribbons Instalation - ELCOM Euro-200TE User Manual

Cash register characteristics
15-12-2005
T 11:07:39

Switching into the "T" mode:
„STANDBY" When the cash register is not operated for certain time limit (see chap. System flags program-
ming) and it is supplied from internal power supply, it will switch into the "Standby" mode. A cash register in
the "Standby" mode has a low consumption of energy. The notification "Standby" appears on the display.
STANDBY

Exit the "STANDBY" mode by pressing the (Mode) button. In case the cash-register is supplied from
external power supply then stand by mode is not called.

PAPER RIBBONS INSTALATION

The Euro-200TE cash register uses thermal paper ribbons 57 mm wide. The paper ribon is designed for the
printing of customer receipts and for the printing of the control ribbon (journal) also.
Figure 2.9 - Paper ribbons installation procedure for the Euro-200TE
We recommend to use only rolls of good quality paper with the maximum diameter of 55 mm. To ensure
proper cash register operation, make sure that the printing saturation is correct. If any problems occur,
contact your local authorized dealer of the Euro-200TE.
Paper ribbons installation procedure for Euro-200TE (numbers according to Figure 2.9):
Open the tape cover (1), follow the picture below. Insert new paper tape. Use the lever (10) to release the
printer roller (8) and lift it up. Hold the ends of the ribbons over the upper cover (2), press the roller (8) on
the original place and press the paper feed button (9) make sure that paper ribbons are installed properly.
Close the tape cover (1).
