Switching into the „Z" mode:
„P" The "P" program mode is used to program all va-
lues and functions of the cash register.
Switching into the "P" mode:
„T" The training mode provides all functions of the "R"
mode, but in this mode, the transactions are not included in
the daily or monthly (periodical) reports. The receipts prin-
ted in this mode are marked by the text "Invalid document".
Switching into the "T" mode:
„STANDBY" When the cash register is not operated
for certain time limit (see chap. System flags program-
ming) and it is supplied from internal power supply, it
will switch into the "Standby" mode. A cash register in
the "Standby" mode has a low consumption of energy. The notification "Standby" appears on the display.
Exit the "STANDBY" mode by pressing the
external power supply then stand by mode is not called.

PAPER RIBBONS INSTALATION

The Euro-200T/TX cash register uses two thermal paper ribbons, 28 mm wide for T model and 38 mm for
TX mode. The left one (a front view on the cash register, see the picture below) is designed for the printing
of customer receipts and the right one for the printing of the control ribbon - journal.

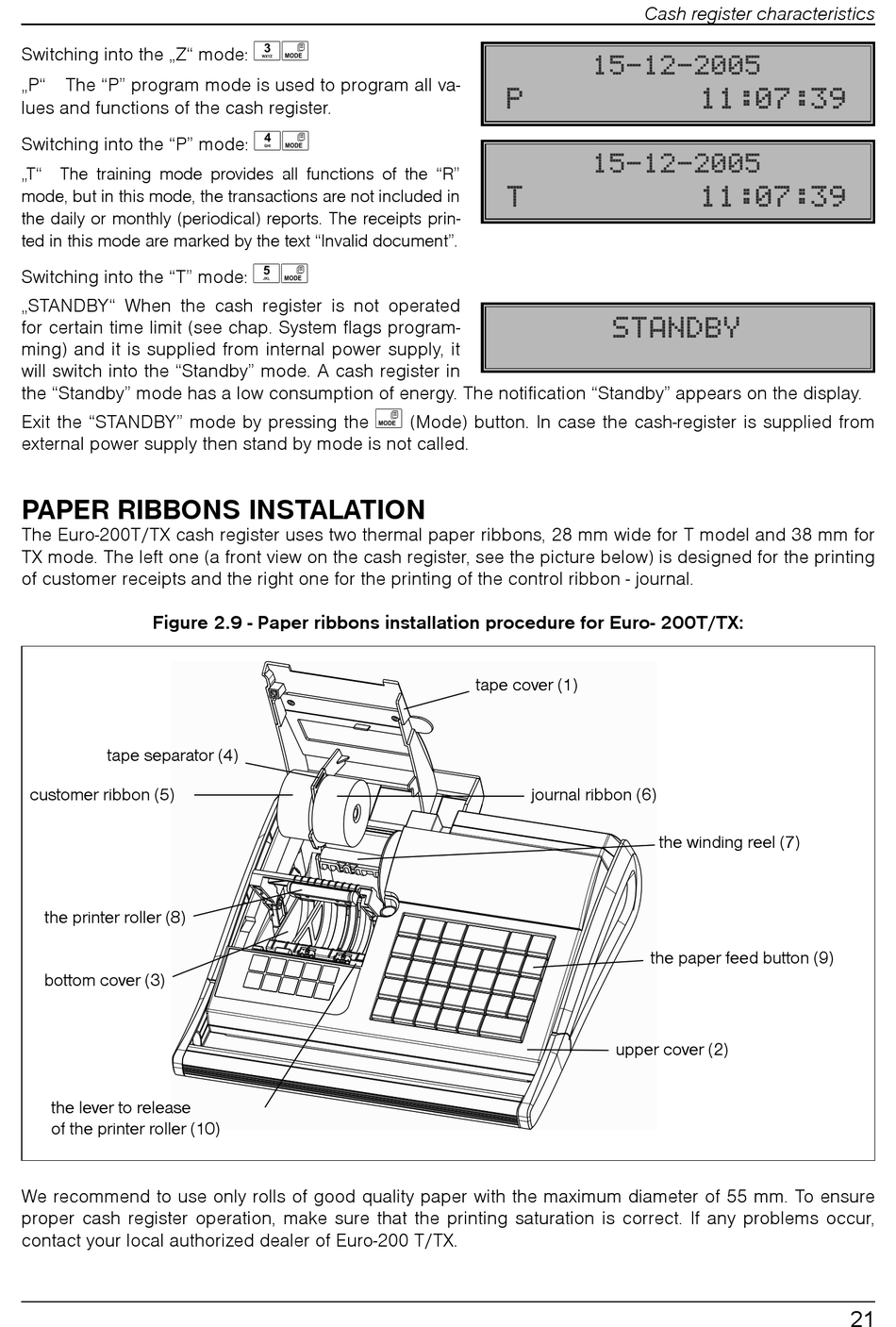

Figure 2.9 - Paper ribbons installation procedure for Euro- 200T/TX:
tape separator (4)
customer ribbon (5)
the printer roller (8)
bottom cover (3)
the lever to release
of the printer roller (10)
We recommend to use only rolls of good quality paper with the maximum diameter of 55 mm. To ensure
proper cash register operation, make sure that the printing saturation is correct. If any problems occur,
contact your local authorized dealer of Euro-200 T/TX.




(Mode) button. In case the cash-register is supplied from
Cash register characteristics
15-12-2005
P
15-12-2005
T
STANDBY
tape cover (1)
journal ribbon (6)
upper cover (2)
11:07:39
11:07:39
the winding reel (7)
the paper feed button (9)
21
