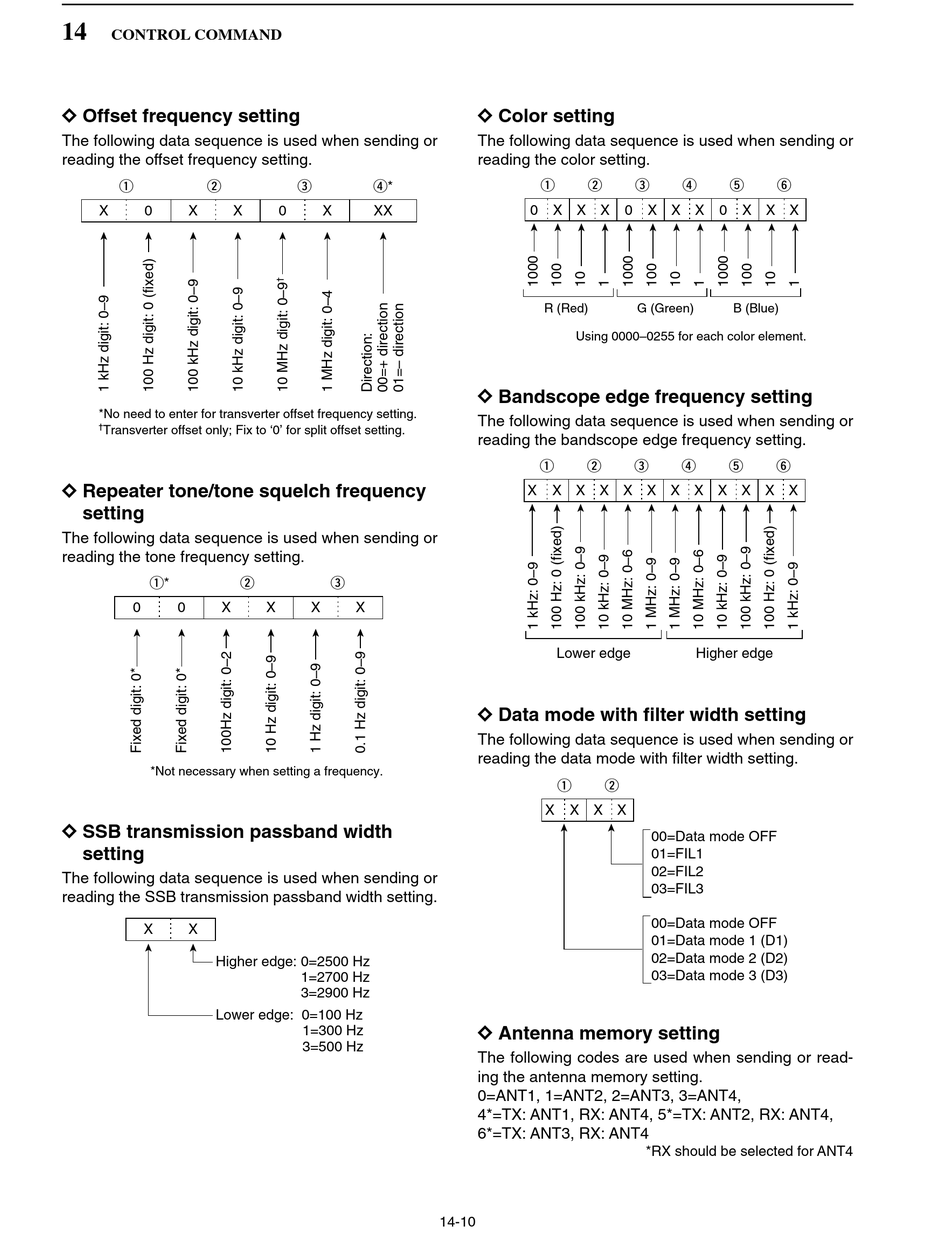

CONTROL COMMAND

D Offset frequency setting

The following data sequence is used when sending or
reading the offset frequency setting.
q w
X 0 X X
*No need to enter for transverter offset frequency setting.
†
Transverter offset only; Fix to '0' for split offset setting.
D Repeater tone/tone squelch frequency
setting
The following data sequence is used when sending or
reading the tone frequency setting.
q*
0 0 X
*Not necessary when setting a frequency.
D SSB transmission passband width
setting
The following data sequence is used when sending or
reading the SSB transmission passband width setting.
X X
Higher edge: 0=2500 Hz
Lower edge: 0=100 Hz
e r*
0 X XX
w e
X X X
1=2700 Hz
3=2900 Hz
1=300 Hz
3=500 Hz

D Color setting

The following data sequence is used when sending or
reading the color setting.
q w
0 X X X
R (Red)
Using 0000–0255 for each color element.

D Bandscope edge frequency setting

The following data sequence is used when sending or
reading the bandscope edge frequency setting.
q w
X X X X X X X X X X X X
Lower edge

D Data mode with filter width setting

The following data sequence is used when sending or
reading the data mode with filter width setting.
q w
X X X X

D Antenna memory setting

The following codes are used when sending or read-
ing the antenna memory setting.
0=ANT1, 1=ANT2, 2=ANT3, 3=ANT4,
4*=TX: ANT1, RX: ANT4, 5*=TX: ANT2, RX: ANT4,
6*=TX: ANT3, RX: ANT4
14-10
e r t y
0 X X X 0 X X X
G (Green) B (Blue)
e r t y
Higher edge
00=Data mode OFF
01=FIL1
02=FIL2
03=FIL3
00=Data mode OFF
01=Data mode 1 (D1)
02=Data mode 2 (D2)
03=Data mode 3 (D3)
*RX should be selected for ANT4
