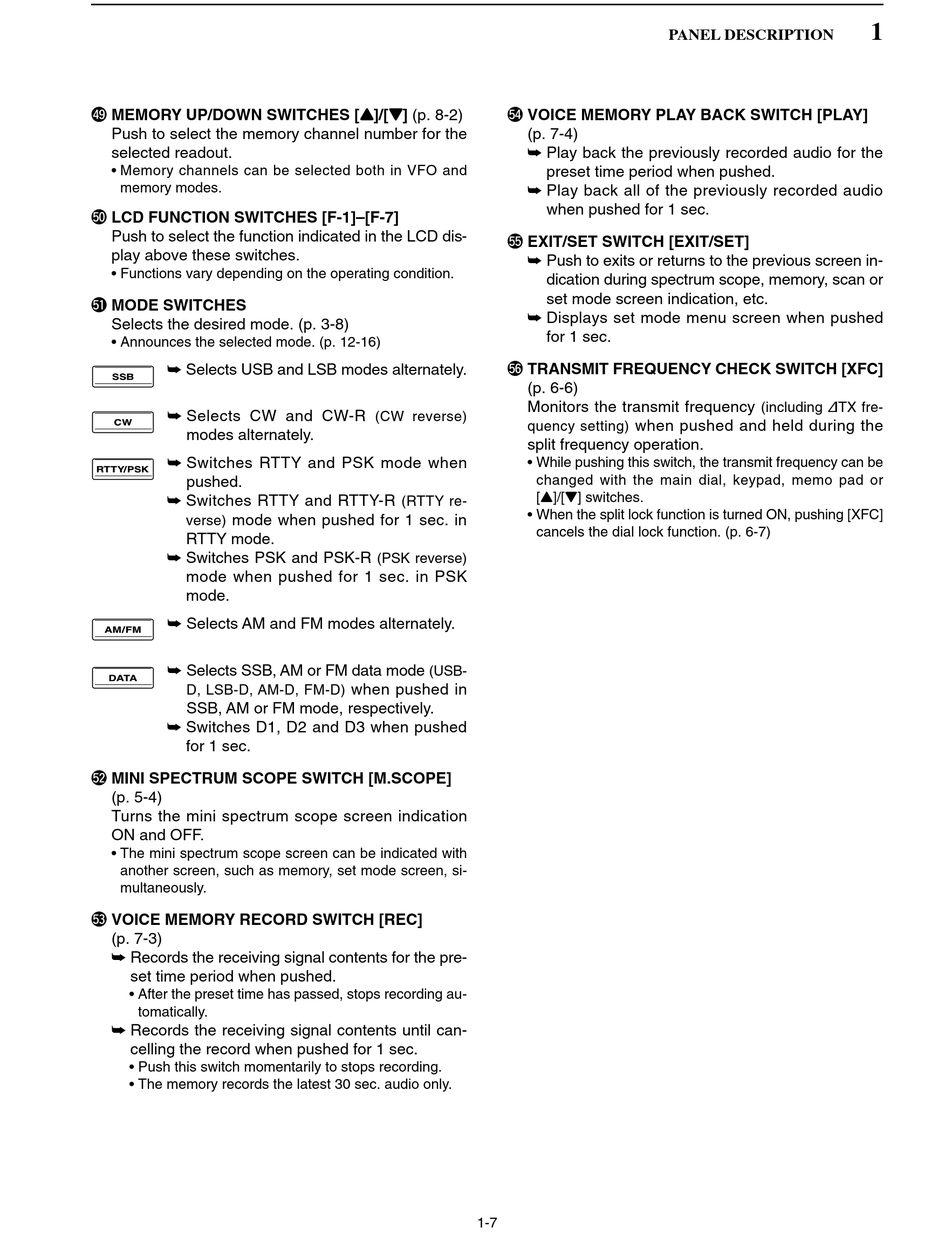

Icom IC-7800 Instruction Manual page 16

$9 MEMORY UP/DOWN SWITCHES [Y]/[Z] (p. 8-2)
Push to select the memory channel number for the
selected readout.
• Memory channels can be selected both in VFO and
memory modes.
%0 LCD FUNCTION SWITCHES [F-1]–[F-7]
Push to select the function indicated in the LCD dis-
play above these switches.
• Functions vary depending on the operating condition.
%1 MODE SWITCHES
Selects the desired mode. (p. 3-8)
• Announces the selected mode. (p. 12-16)
➥ Selects USB and LSB modes alternately.
➥ Selects CW and CW-R
modes alternately.
➥ Switches RTTY and PSK mode when
pushed.
➥ Switches RTTY and RTTY-R
mode when pushed for 1 sec. in
verse)
RTTY mode.
➥ Switches PSK and PSK-R
mode when pushed for 1 sec. in PSK
mode.
➥ Selects AM and FM modes alternately.
➥ Selects SSB, AM or FM data mode
D, LSB-D, AM-D, FM-D)
SSB, AM or FM mode, respectively.
➥ Switches D1, D2 and D3 when pushed
for 1 sec.
%2 MINI SPECTRUM SCOPE SWITCH [M.SCOPE]
(p. 5-4)
Turns the mini spectrum scope screen indication
ON and OFF.
• The mini spectrum scope screen can be indicated with
another screen, such as memory, set mode screen, si-
multaneously.
%3 VOICE MEMORY RECORD SWITCH [REC]
(p. 7-3)
➥ Records the receiving signal contents for the pre-
set time period when pushed.
• After the preset time has passed, stops recording au-
tomatically.
➥ Records the receiving signal contents until can-
celling the record when pushed for 1 sec.
• Push this switch momentarily to stops recording.
• The memory records the latest 30 sec. audio only.
%4 VOICE MEMORY PLAY BACK SWITCH [PLAY]
(p. 7-4)
➥ Play back the previously recorded audio for the
➥ Play back all of the previously recorded audio
%5 EXIT/SET SWITCH [EXIT/SET]
➥ Push to exits or returns to the previous screen in-
➥ Displays set mode menu screen when pushed
%6 TRANSMIT FREQUENCY CHECK SWITCH [XFC]
(p. 6-6)
Monitors the transmit frequency
(CW reverse)
quency setting)
split frequency operation.
• While pushing this switch, the transmit frequency can be
(RTTY re-
• When the split lock function is turned ON, pushing [XFC]
(PSK reverse)
(USB-
when pushed in
1-7
PANEL DESCRIPTION
preset time period when pushed.
when pushed for 1 sec.
dication during spectrum scope, memory, scan or
set mode screen indication, etc.
for 1 sec.
when pushed and held during the
changed with the main dial, keypad, memo pad or
[Y]/[Z] switches.
cancels the dial lock function. (p. 6-7)
1
(including ∂TX fre-
