3
BASIC OPERATIONS

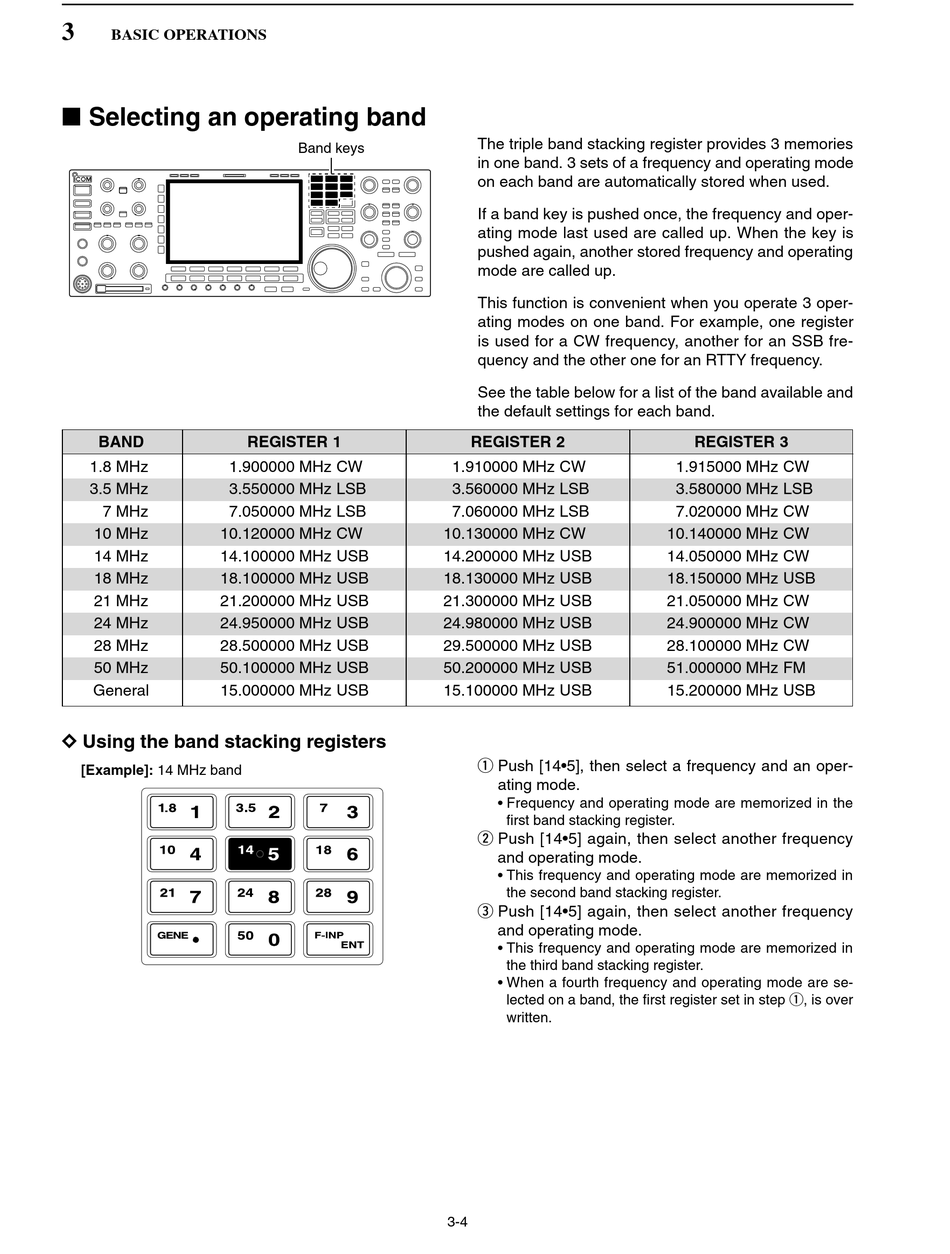

■ Selecting an operating band

BAND
1.8 MHz 1.900000 MHz CW
3.5 MHz 3.550000 MHz LSB
7 MHz 7.050000 MHz LSB
10 MHz 10.120000 MHz CW
14 MHz 14.100000 MHz USB
18 MHz 18.100000 MHz USB
21 MHz 21.200000 MHz USB
24 MHz 24.950000 MHz USB
28 MHz 28.500000 MHz USB
50 MHz 50.100000 MHz USB
General 15.000000 MHz USB

D Using the band stacking registers

[Example]: 14 MHz band
Band keys
REGISTER 1
The triple band stacking register provides 3 memories
in one band. 3 sets of a frequency and operating mode
on each band are automatically stored when used.
If a band key is pushed once, the frequency and oper-
ating mode last used are called up. When the key is
pushed again, another stored frequency and operating
mode are called up.
This function is convenient when you operate 3 oper-
ating modes on one band. For example, one register
is used for a CW frequency, another for an SSB fre-
quency and the other one for an RTTY frequency.
See the table below for a list of the band available and
the default settings for each band.
REGISTER 2
1.910000 MHz CW
3.560000 MHz LSB
7.060000 MHz LSB
10.130000 MHz CW
14.200000 MHz USB
18.130000 MHz USB
21.300000 MHz USB
24.980000 MHz USB
29.500000 MHz USB
50.200000 MHz USB
15.100000 MHz USB
q Push [14•5], then select a frequency and an oper-
ating mode.
• Frequency and operating mode are memorized in the
first band stacking register.
w Push [14•5] again, then select another frequency
and operating mode.
• This frequency and operating mode are memorized in
the second band stacking register.
e Push [14•5] again, then select another frequency
and operating mode.
• This frequency and operating mode are memorized in
the third band stacking register.
• When a fourth frequency and operating mode are se-
lected on a band, the first register set in step q, is over
written.
3-4
REGISTER 3
1.915000 MHz CW
3.580000 MHz LSB
7.020000 MHz CW
10.140000 MHz CW
14.050000 MHz CW
18.150000 MHz USB
21.050000 MHz CW
24.900000 MHz CW
28.100000 MHz CW
51.000000 MHz FM
15.200000 MHz USB
