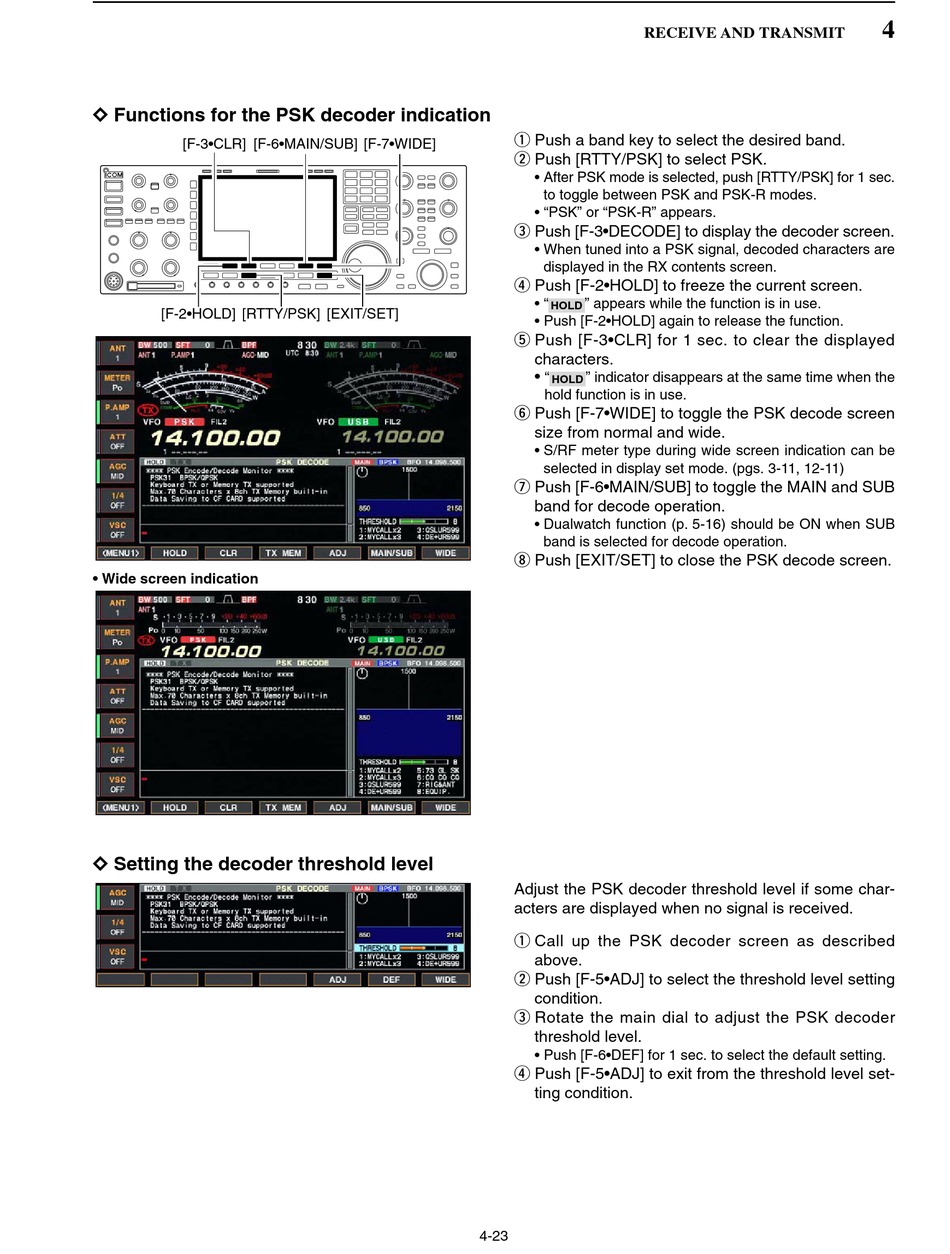

D Functions for the PSK decoder indication

[F-3•CLR] [F-6•MAIN/SUB] [F-7•WIDE]
[F-2•HOLD] [RTTY/PSK] [EXIT/SET]
• Wide screen indication

D Setting the decoder threshold level

RECEIVE AND TRANSMIT
q Push a band key to select the desired band.
w Push [RTTY/PSK] to select PSK.
• After PSK mode is selected, push [RTTY/PSK] for 1 sec.
to toggle between PSK and PSK-R modes.
• "PSK" or "PSK-R" appears.
e Push [F-3•DECODE] to display the decoder screen.
• When tuned into a PSK signal, decoded characters are
displayed in the RX contents screen.
r Push [F-2•HOLD] to freeze the current screen.
• " " appears while the function is in use.
HOLD
• Push [F-2•HOLD] again to release the function.
t Push [F-3•CLR] for 1 sec. to clear the displayed
characters.
•
" " indicator disappears at the same time when the
HOLD
hold function is in use.
y Push [F-7•WIDE] to toggle the PSK decode screen
size from normal and wide.
• S/RF meter type during wide screen indication can be
selected in display set mode. (pgs. 3-11, 12-11)
u Push [F-6•MAIN/SUB] to toggle the MAIN and SUB
band for decode operation.
• Dualwatch function (p. 5-16) should be ON when SUB
band is selected for decode operation.
i Push [EXIT/SET] to close the PSK decode screen.
Adjust the PSK decoder threshold level if some char-
acters are displayed when no signal is received.
q Call up the PSK decoder screen as described
above.
w Push [F-5•ADJ] to select the threshold level setting
condition.
e Rotate the main dial to adjust the PSK decoder
threshold level.
• Push [F-6•DEF] for 1 sec. to select the default setting.
r Push [F-5•ADJ] to exit from the threshold level set-
ting condition.
