Icom IC-7800 Instruction Manual page 151

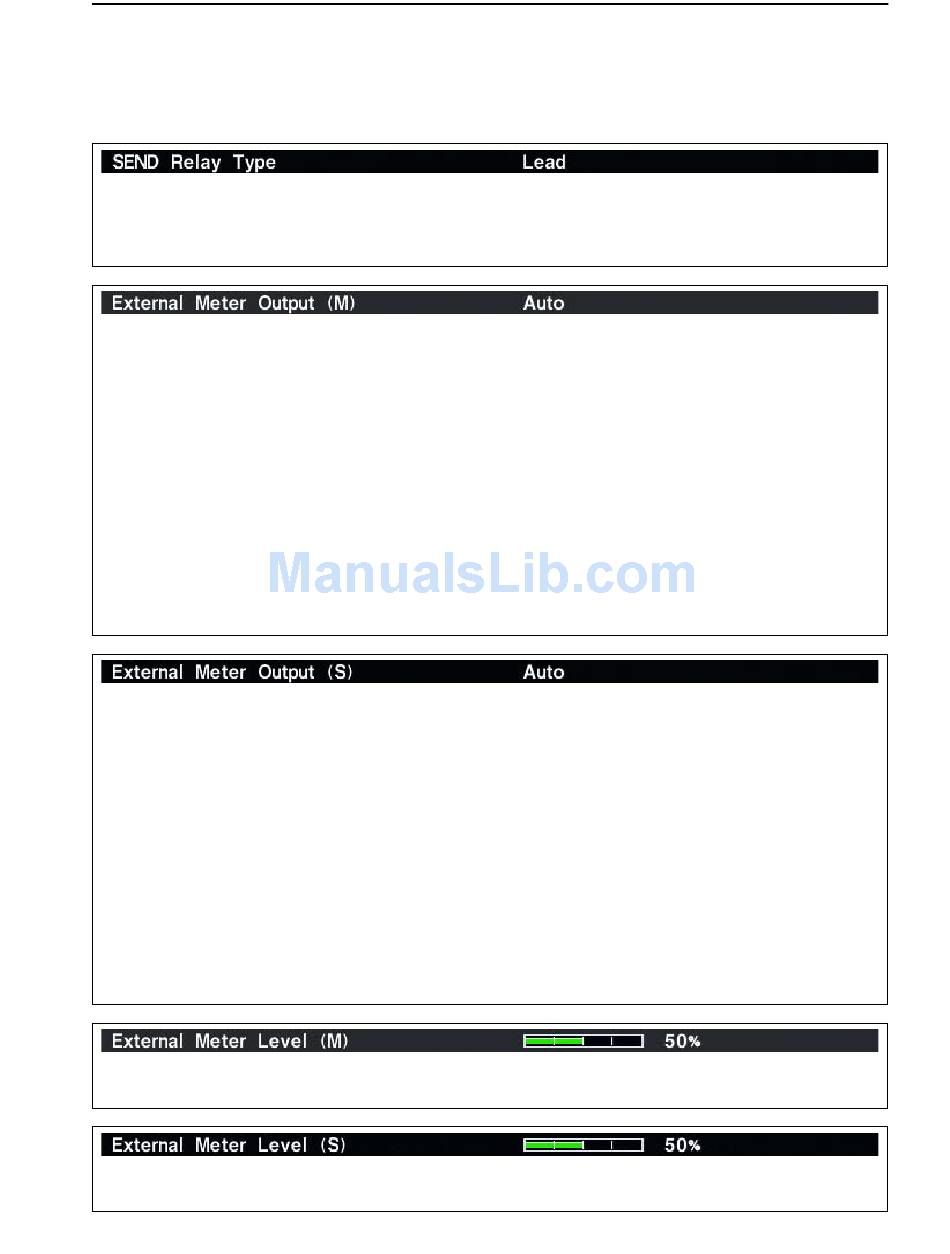

■ ACC set mode
Selects the switching relay type for [RELAY] from
Lead and MOS-FET.
Select the suitable relay type when connecting a non-
Icom linear amplifier.
Selects the desired item for an external meter indica-
tion (main readout).
Selects the desired item for an external meter indica-
tion (sub readout).
Sets the output level for an external meter indication
(main readout) with in 0 to 100% range in 1% steps.
Sets the output level for an external meter indication
(sub readout) with in 0 to 100% range in 1% steps.
(continued)
12-9
• Lead : Use mechanical relay.
(16 V DC/0.5 A max.; default)
• MOS-FET : Use semiconductor type relay.
(200 mA/250 V max.)
• Auto : Outputs the receiving signal strength level
during receive, and outputs the selected
content's level, selected with [METER],
during transmit. (default)
• S(MAIN) : Outputs the receiving signal strength level
during receive.
• Po : Outputs the transmitting power level dur-
ing transmit.
• SWR : Outputs the VSWR level during transmit.
• ALC : Outputs the ALC level during transmit.
• COMP : Outputs the compression level during
transmit.
• V : Outputs the drain's terminal voltage of the
D
final FETs.
• I : Outputs the drain's current of the final
D
FETs.
• Auto : Outputs the receiving signal strength level
during receive, and outputs the selected
content's level, selected with [METER],
during transmit. (default)
• S(MAIN) : Outputs the receiving signal strength level
during receive.
• Po : Outputs the transmitting power level dur-
ing transmit.
• SWR : Outputs the VSWR level during transmit.
• ALC : Outputs the ALC level during transmit.
• COMP : Outputs the compression level during
transmit.
• V : Outputs the drain's terminal voltage of the
D
final FETs.
• I : Outputs the drain's current of the final
D
FETs.
• Approx. 2.5 V at 50% (default) setting for full-scale indica-
tion. (4.7 kΩ impedance)
• Approx. 2.5 V at 50% (default) setting for full-scale indica-
tion. (4.7 kΩ impedance)
