4
RECEIVE AND TRANSMIT

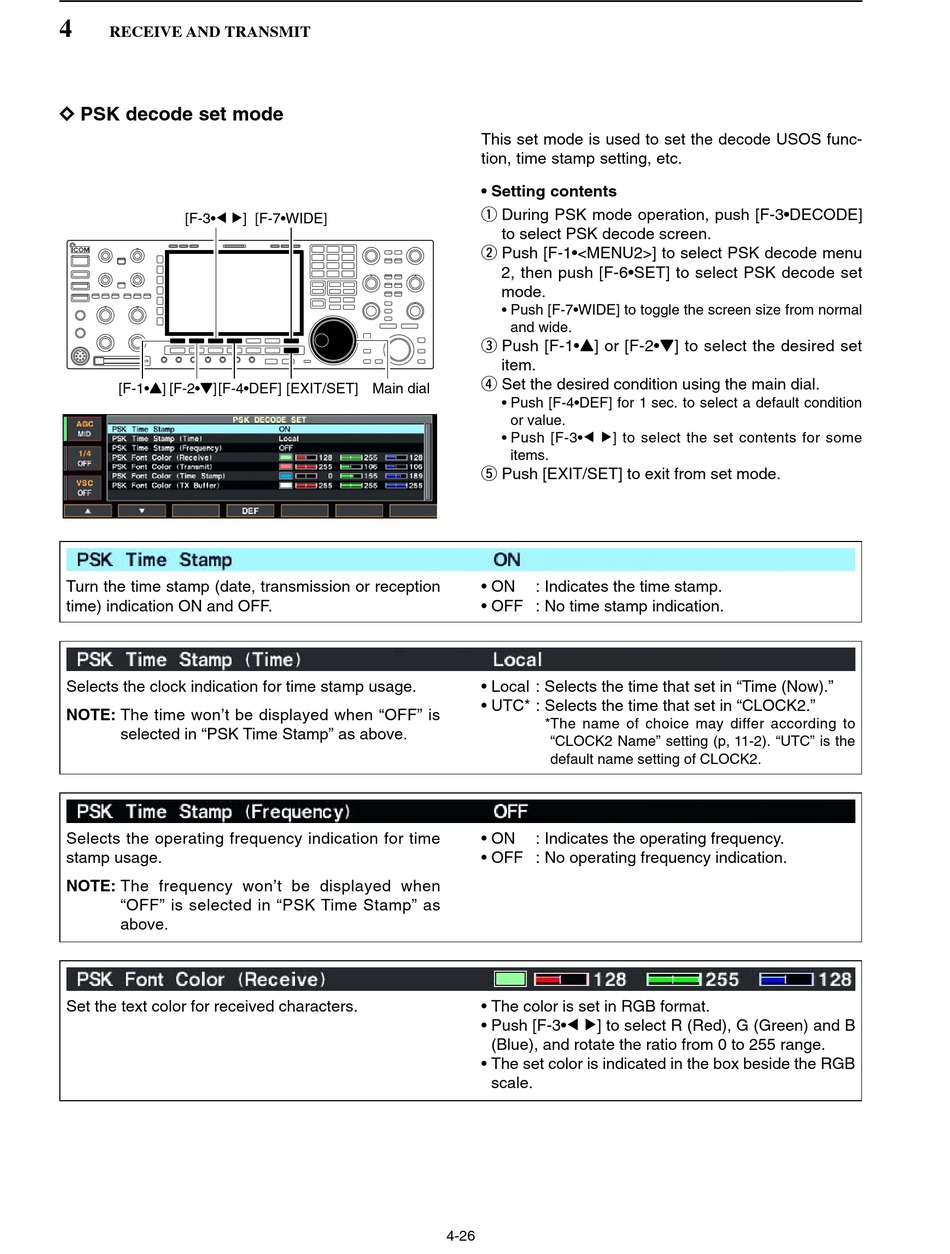

D PSK decode set mode

[F-3•Ω ≈] [F-7•WIDE]
[F-1•Y] [F-2•Z][F-4•DEF]
Turn the time stamp (date, transmission or reception
time) indication ON and OFF.
Selects the clock indication for time stamp usage.
NOTE: The time won't be displayed when "OFF" is
selected in "PSK Time Stamp" as above.
Selects the operating frequency indication for time
stamp usage.
NOTE: The frequency won't be displayed when
"OFF" is selected in "PSK Time Stamp" as
above.
Set the text color for received characters.
[EXIT/SET] Main dial
4-26
This set mode is used to set the decode USOS func-
tion, time stamp setting, etc.
• Setting contents
q During PSK mode operation, push [F-3•DECODE]
to select PSK decode screen.
w Push [F-1•<MENU2>] to select PSK decode menu
2, then push [F-6•SET] to select PSK decode set
mode.
• Push [F-7•WIDE] to toggle the screen size from normal
and wide.
e Push [F-1•Y] or [F-2•Z] to select the desired set
item.
r Set the desired condition using the main dial.
• Push [F-4•DEF] for 1 sec. to select a default condition
or value.
• Push [F-3•Ω ≈] to select the set contents for some
items.
t Push [EXIT/SET] to exit from set mode.
• ON : Indicates the time stamp.
• OFF : No time stamp indication.
• Local : Selects the time that set in "Time (Now)."
• UTC* : Selects the time that set in "CLOCK2."
*The name of choice may differ according to
"CLOCK2 Name" setting (p, 11-2). "UTC" is the
default name setting of CLOCK2.
• ON : Indicates the operating frequency.
• OFF : No operating frequency indication.
• The color is set in RGB format.
• Push [F-3•Ω ≈] to select R (Red), G (Green) and B
(Blue), and rotate the ratio from 0 to 255 range.
• The set color is indicated in the box beside the RGB
scale.
