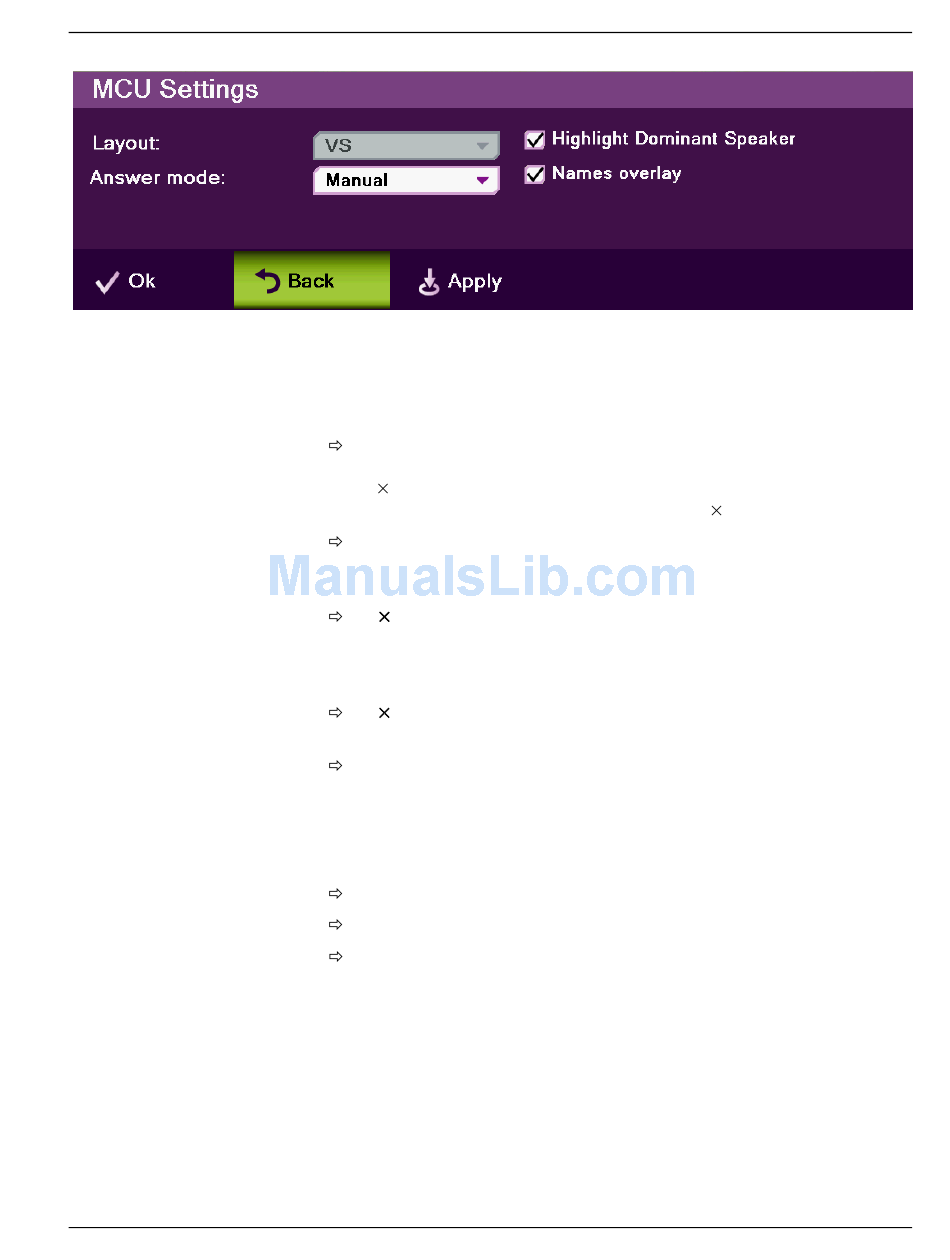

Figure 31. MCU Settings Window
2. In the MCU window, set the following options and parameters:
o Layout – Set the default layout for a multipoint call:
Auto – The system will change the layout automatically
according to the following principle: for up to 4 participants, the
2 2 layout is used; for 5 or 6 participants, the 5+1 layout is
used; for 7 and up to 9 participants, the 3 3 layout is used.
VS (voice switched) – The video stream of the dominant speaker
is shown. The current dominant speaker sees the previous
dominant speaker.
2 2 – The screen is divided into 4 quadrants of the same size.
Each quadrant contains an image. If there are more than 4
endpoints in the call using this layout, the dominant speaker
appears, replacing an image of a non-dominant speaker.
3 3 – The screen is divided into 9 rectangle portions of the
same size. Each quadrant contains an image.
5+1 – This layout divides the screen into six rectangle portions.
One is larger than the other parts and contains the image of the
dominant speaker at any given time.
o Answer Mode – Set the default answer mode for the second and
subsequent calls:
Accept – Automatically accept incoming calls
Reject All – Automatically reject all incoming calls
Manual – Display a prompt each time a call comes in
o Highlight Dominant Speaker – Display a green frame around the
quadrant of the dominant speaker, except for in the 5+1 layout.
o Names Overlay – Display the remote station name overlaid on
each participant image.
3. Select Apply.
Incoming calls will be answered using the settings you configured.
