Emblaze-VCON xPointS User Manual page 56

Chapter 7. Advanced Settings
xPoint Standard (S) Ver. 1.5 User Guide
To configure the online directory settings:
1. Select Settings>General>Directory; the Directory Settings window
appears.

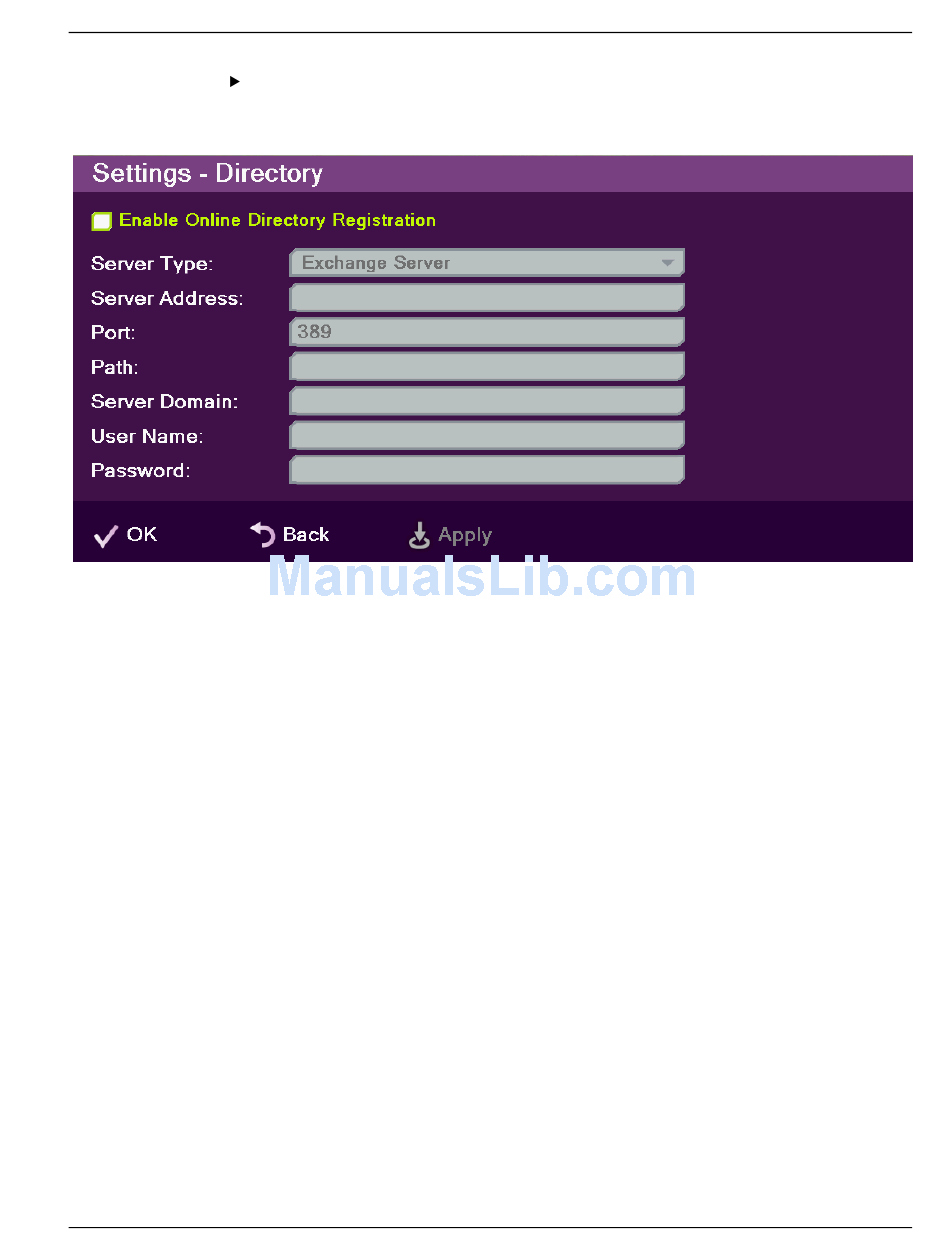

Figure 22. Directory Settings Window
2. In the Directory Settings window, set the following options and
parameters
o Enable Online Directory Registration – When selected, this
checkbox activates the rest of the fields in this window and enables
the Online Directory connection registration.
o Server Type – Select the Online Directory server type. If you are
not sure which type to select, consult with your system administrator.
An LDAP (Lightweight Directory Access Protocol) server is usually
used.
o Server Address – The server's IP address. If an IP is not entered,
the following message appears: "You must enter server address in
order to continue."
o Port – Number of the port through which the connection to the
server is established.
o Path – Folder in which your user information is stored, as created
on the Online Directory.
o Server Domain – Server's domain name for the Online Directory.
o User Name – Your user name as defined on the Online Directory
server.
o Password – Your access password as defined on the Online
Directory server.
3. Select Apply.
Online Directory Properties
• 55
