Chapter 2. Getting Started

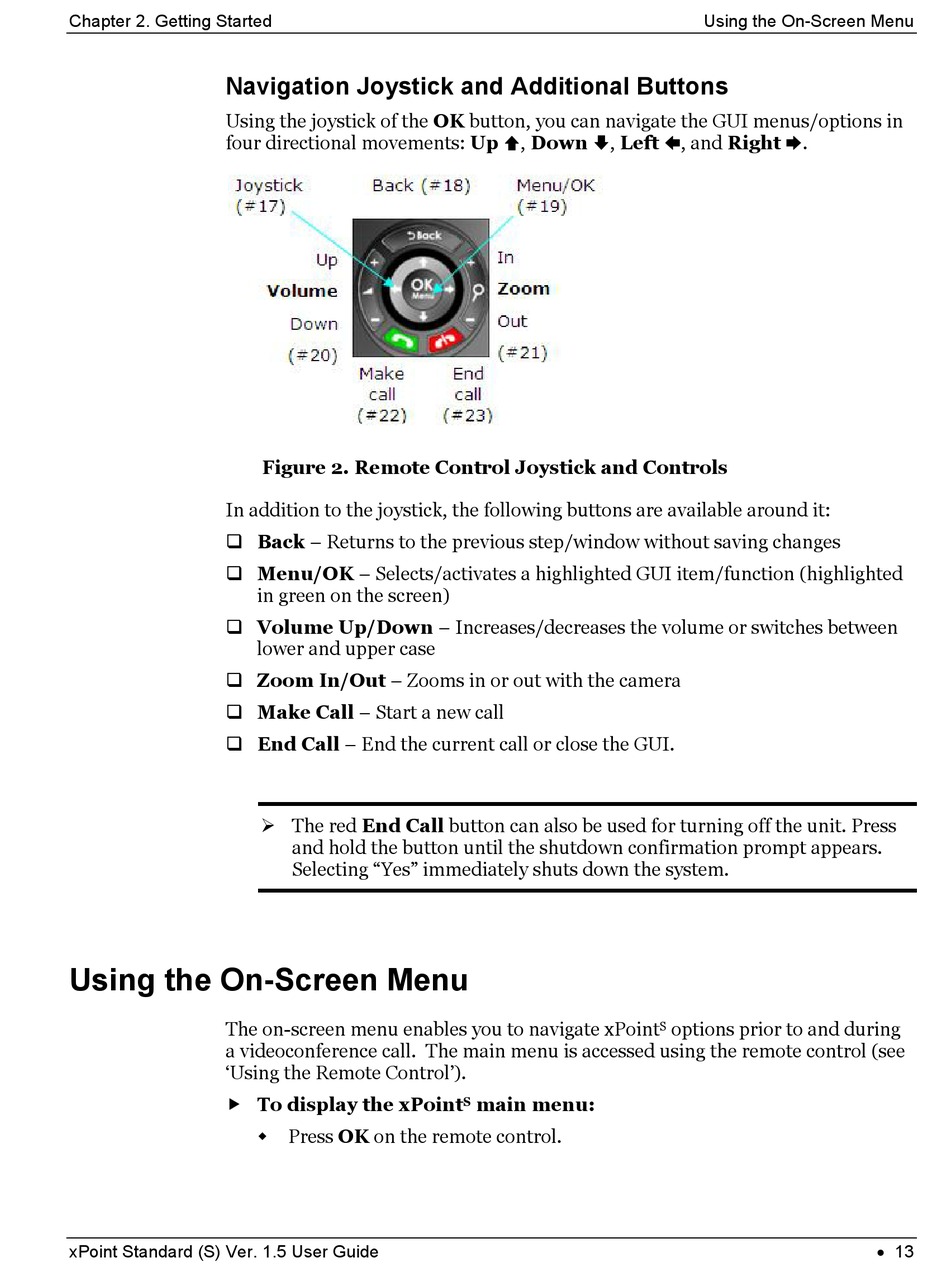

Navigation Joystick and Additional Buttons

Using the joystick of the OK button, you can navigate the GUI menus/options in
four directional movements: Up
In addition to the joystick, the following buttons are available around it:

Using the On-Screen Menu

The on-screen menu enables you to navigate xPoint
a videoconference call. The main menu is accessed using the remote control (see
'Using the Remote Control').
xPoint Standard (S) Ver. 1.5 User Guide
Figure 2. Remote Control Joystick and Controls
Back – Returns to the previous step/window without saving changes
Menu/OK – Selects/activates a highlighted GUI item/function (highlighted
in green on the screen)
Volume Up/Down – Increases/decreases the volume or switches between
lower and upper case
Zoom In/Out – Zooms in or out with the camera
Make Call – Start a new call
End Call – End the current call or close the GUI.
The red End Call button can also be used for turning off the unit. Press
and hold the button until the shutdown confirmation prompt appears.
Selecting "Yes" immediately shuts down the system.
To display the xPoint
Press OK on the remote control.
, Down , Left , and Right
main menu:
S
Using the On-Screen Menu
.
options prior to and during
S
• 13
