Supplied Accessories; D Accessory Connectors Set Up - Icom IC-GM651 Instruction Manual

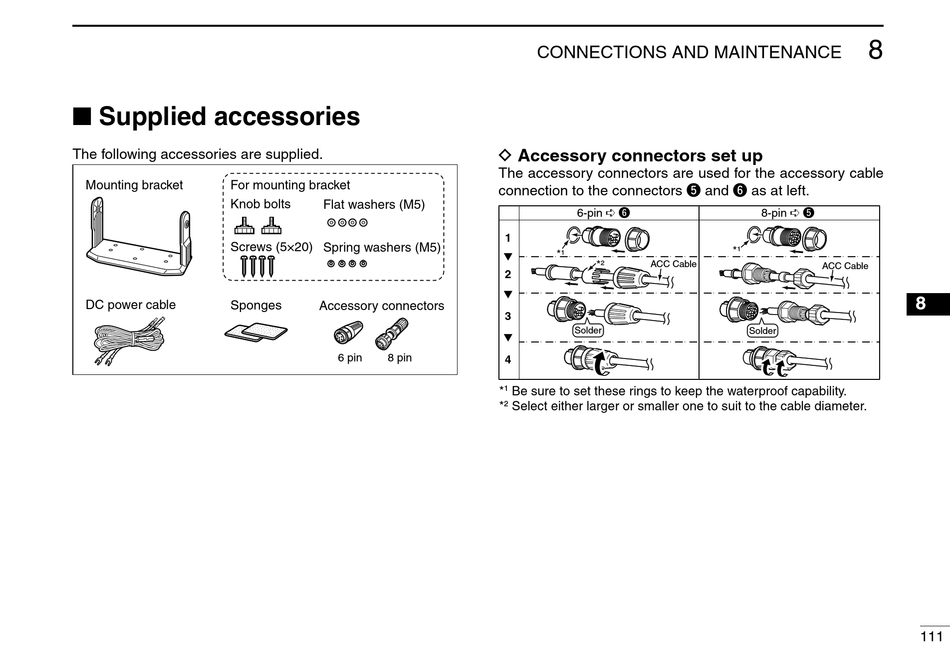

n Supplied accessories
The following accessories are supplied.
Mounting bracket For mounting bracket
Knob bolts
Screws (5×20)
DC power cable
Sponges

D Accessory connectors set up

The accessory connectors are used for the accessory cable
connection to the connectors t and y as at left.
Flat washers (M5)
Spring washers (M5)
Accessory connectors
6 pin 8 pin
CONNECTIONS AND MAINTENANCE
6-pin � y
1
* 1
* ACC Cable
2
2
3
Solder
4
* Be sure to set these rings to keep the waterproof capability.
1
* Select either larger or smaller one to suit to the cable diameter.
2
8
8-pin � t
*
1
ACC Cable
Solder
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
111
