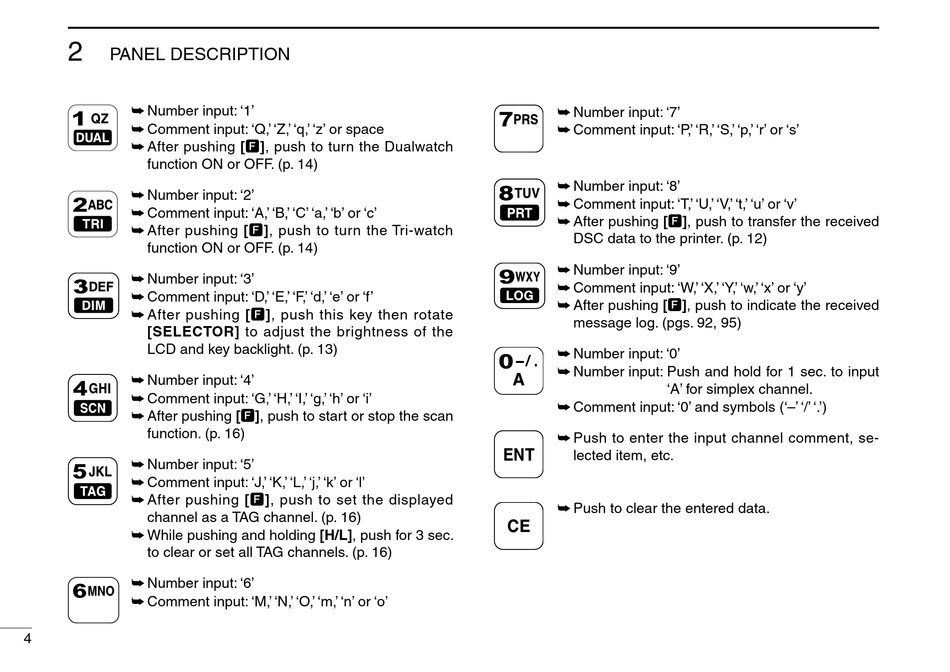

PANEL DESCRIPTION
➥ Number input: '1'
➥ Comment input: 'Q,' 'Z,' 'q,' 'z' or space
➥ After pushing [F], push to turn the Dualwatch
function ON or OFF. (p. 14)
➥ Number input: '2'
➥ Comment input: 'A,' 'B,' 'C' 'a,' 'b' or 'c'
➥ After pushing [F], push to turn the Tri-watch
function ON or OFF. (p. 14)
➥ Number input: '3'
➥ Comment input: 'D,' 'E,' 'F,' 'd,' 'e' or 'f'
➥ After pushing [F], push this key then rotate
[SELECTOR] to adjust the brightness of the
LCD and key backlight. (p. 13)
➥ Number input: '4'
➥ Comment input: 'G,' 'H,' 'I,' 'g,' 'h' or 'i'
➥ After pushing [F], push to start or stop the scan
function. (p. 16)
➥ Number input: '5'
➥ Comment input: 'J,' 'K,' 'L,' 'j,' 'k' or 'l'
➥ After pushing [F], push to set the displayed
channel as a TAG channel. (p. 16)
➥ While pushing and holding [H/L], push for 3 sec.
to clear or set all TAG channels. (p. 16)
➥ Number input: '6'
➥ Comment input: 'M,' 'N,' 'O,' 'm,' 'n' or 'o'
4
➥ Number input: '7'
➥ Comment input: 'P,' 'R,' 'S,' 'p,' 'r' or 's'
➥ Number input: '8'
➥ Comment input: 'T,' 'U,' 'V,' 't,' 'u' or 'v'
➥ After pushing [F], push to transfer the received
DSC data to the printer. (p. 12)
➥ Number input: '9'
➥ Comment input: 'W,' 'X,' 'Y,' 'w,' 'x' or 'y'
➥ After pushing [F], push to indicate the received
message log. (pgs. 92, 95)
➥ Number input: '0'
➥ Number input: Push and hold for 1 sec. to input
'A' for simplex channel.
➥ Comment input: '0' and symbols ('–' '/' '.')
➥ Push to enter the input channel comment, se-
lected item, etc.
➥ Push to clear the entered data.
