Icom IC-G88-T Instructions

VHF TRANSCEIVER
Iç-G88-T
q ANTENNA CONNECTOR
w LED INDICATOR
q ANTENNA CONNECTOR
Connect the supplied antenna.
w LED INDICATOR
• Lights red while transmitting.
• Lights green while receiving a signal, or when the
squelch is open.
• When the indicator slowly blinks green, you should
charge the battery.
• When the indicator quickly blinks green, you must
charge the battery.
e [PTT]
Hold down to transmit, and release to receive.
r [UP]*/[DOWN]*
• In the VFO mode
Set the operating frequency.
• In the Memory mode
Select a Memory channel.
• In the Set mode
Select an option for the item.
• During a scan
Change the scanning direction.
t
KEY PAD
Push to enter the operating frequency or Memory channel number.
[P0]*: • Push to enter or exit the VFO Set mode.
y
• Hold down to enter or exit the User Set mode.
[P1]*: • Push to toggle the Duplex and Simplex mode.
• Hold down for 1 second to select the Sub Audible
tone.
[P2]*: • Push to start or cancel a VFO or Memory scan.
• Hold down for 1 second to set or cancel the Scan
tag to the selected channel.
INSTRUCTIONS w

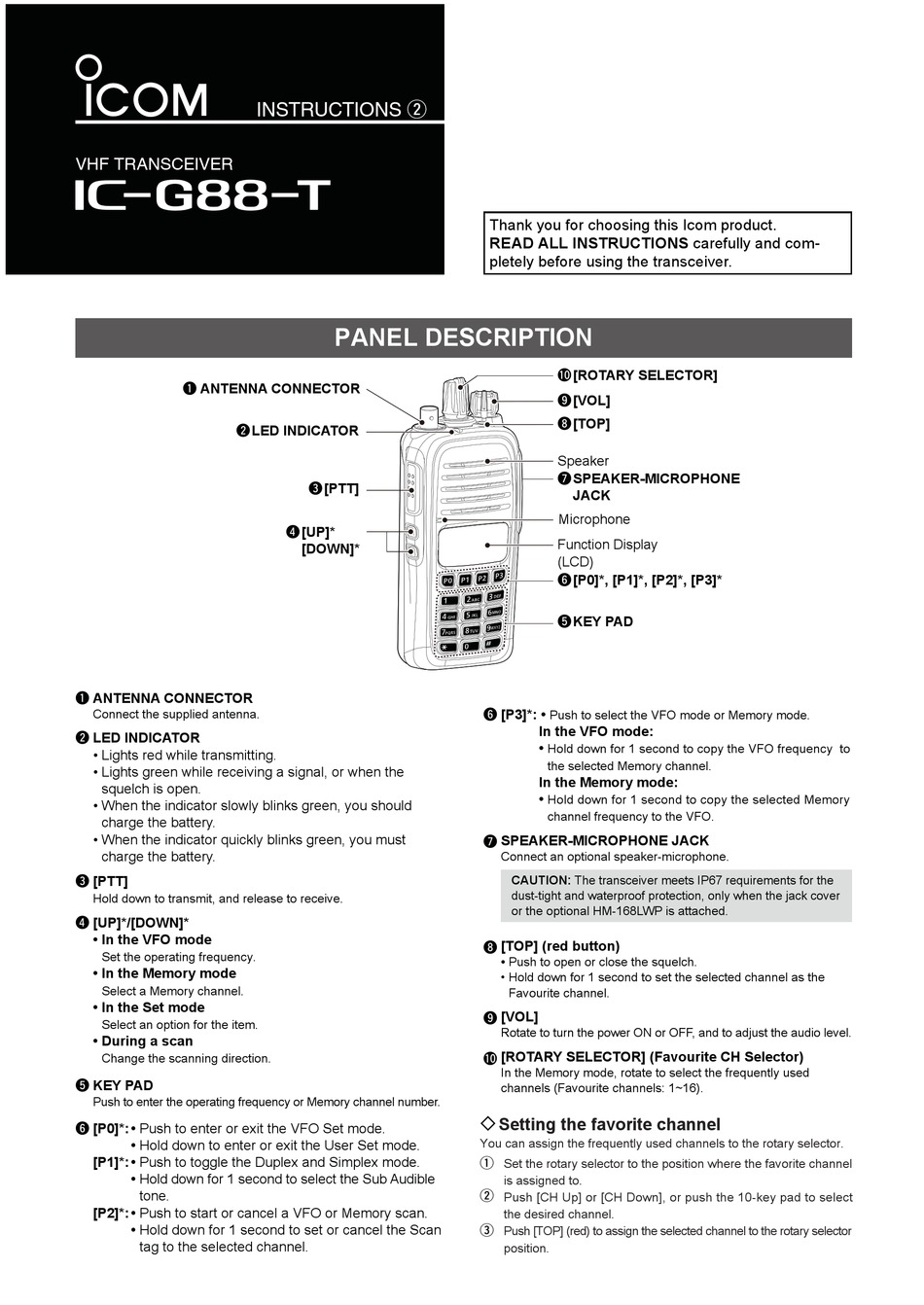

PANEL DESCRIPTION
e [PTT]
r [UP]*
[DOWN]*
Thank you for choosing this Icom product.
READ ALL INSTRUCTIONS carefully and com-
pletely before using the transceiver.
!0 [ROTARY SELECTOR]
o [VOL]
i [TOP]
Speaker
u SPEAKER-MICROPHONE
JACK
Microphone
Function Display
(LCD)
y [P0]*, [P1]*, [P2]*, [P3]*
t KEY PAD
[P3]*: •
y
Push to select the VFO mode or Memory mode.
In the VFO mode:
•
Hold down for 1 second to copy the VFO frequency to
the selected Memory channel.
In the Memory mode:
•
Hold down for 1 second to copy the selected Memory
channel frequency to the VFO.
SPEAKER-MICROPHONE JACK
u
Connect an optional speaker-microphone.
CAUTION: The transceiver meets IP67 requirements for the
dust-tight and waterproof protection, only when the jack cover
or the optional HM-168LWP is attached.
[TOP] (red button)
i
• Push to open or close the squelch.
• Hold down for 1 second to set the selected channel as the
Favourite channel.
[VOL]
o
Rotate to turn the power ON or OFF, and to adjust the audio level.
[ROTARY SELECTOR] (Favourite CH Selector)
!0
In the Memory mode, rotate to select the frequently used
channels (Favourite channels: 1~16).
Setting the favorite channel
You can assign the frequently used channels to the rotary selector.
q
Set the rotary selector to the position where the favorite channel
is assigned to.
w
Push [CH Up] or [CH Down], or push the 10-key pad to select
the desired channel.
e
Push [TOP] (red) to assign the selected channel to the rotary selector
position.
