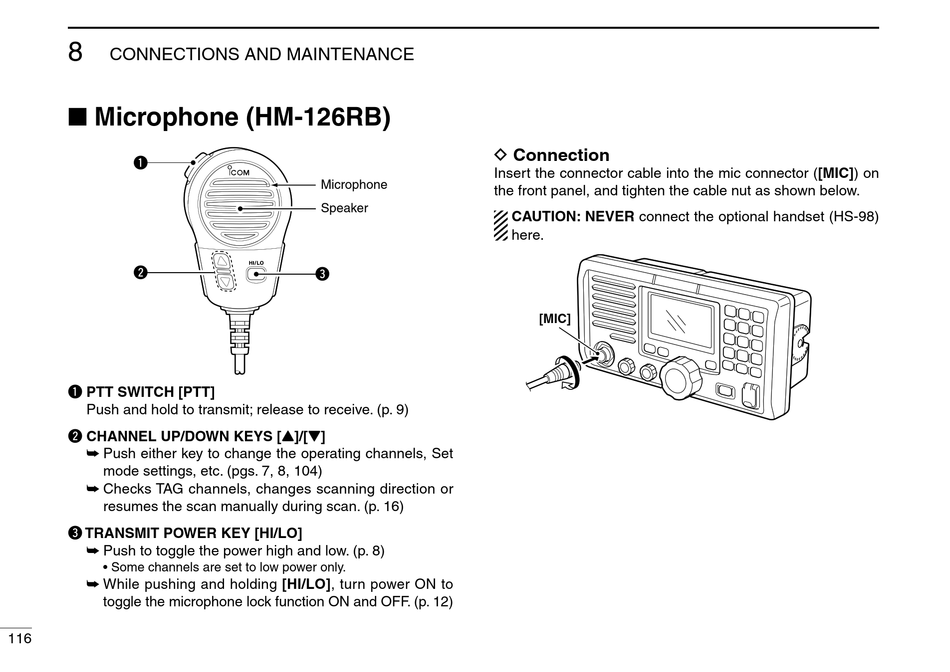

Microphone (Hm-126Rb); D Connection - Icom IC-GM651 Instruction Manual

8
CONNECTIONS AND MAINTENANCE
n Microphone (HM-126RB)
q
w
q PTT SWITCH [PTT]
Push and hold to transmit; release to receive. (p. 9)
w CHANNEL UP/DOWN KEYS [Y]/[Z]
➥ Push either key to change the operating channels, Set
mode settings, etc. (pgs. 7, 8, 104)
➥ Checks TAG channels, changes scanning direction or
resumes the scan manually during scan. (p. 16)
e TRANSMIT POWER KEY [HI/LO]
➥ Push to toggle the power high and low. (p. 8)
• Some channels are set to low power only.
➥ While pushing and holding [HI/LO], turn power ON to
toggle the microphone lock function ON and OFF. (p. 12)
116

D Connection

Insert the connector cable into the mic connector ([MIC]) on
Microphone
the front panel, and tighten the cable nut as shown below.
Speaker
e
CAUTION: NEVER connect the optional handset (HS-98)
here.
[MIC]
