D Display Contrast; Set Mode; D Microphone Type; D Cursor (Downward) Movement - Icom IC-GM651 Instruction Manual

7

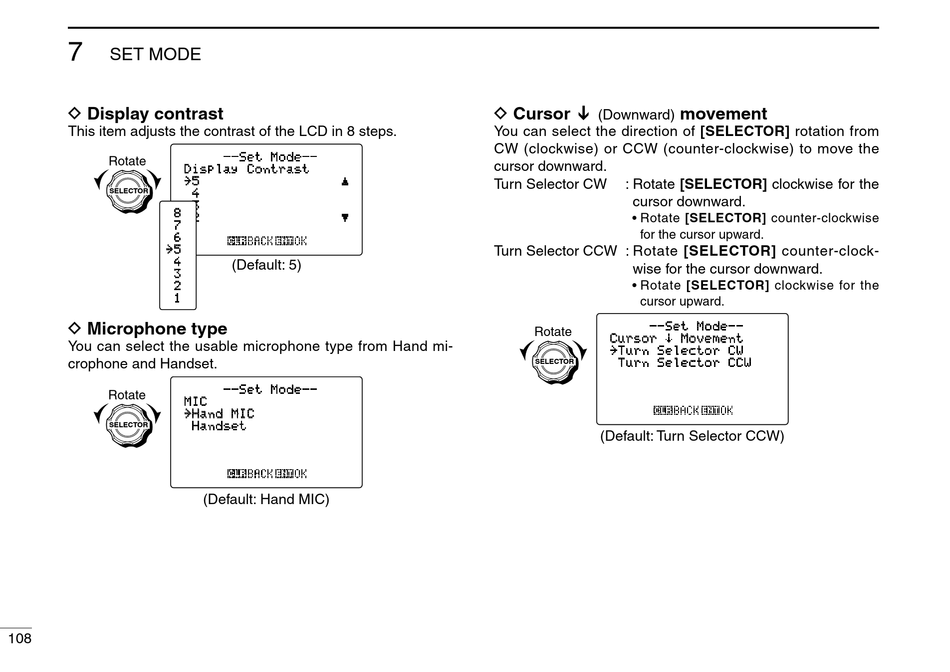

SET MODE

D Display contrast

This item adjusts the contrast of the LCD in 8 steps.
Rotate
Display Contrast
˘5
SELECTOR
8
7
6
˘5
4
3
2
1

D Microphone type

You can select the usable microphone type from Hand mi-
crophone and Handset.
Rotate
MIC
˘Hand MIC
SELECTOR
108
--Set Mode--
≤
4
3
2 ≥
(Default: 5)
--Set Mode--
Handset
(Default: Hand MIC)
D Cursor
(Downward)
You can select the direction of [SELECTOR] rotation from
CW (clockwise) or CCW (counter-clockwise) to move the
cursor downward.
Turn Selector CW : Rotate [SELECTOR] clockwise for the
cursor downward.
• Rotate [SELECTOR] counter-clockwise
for the cursor upward.
Turn Selector CCW : Rotate [SELECTOR] counter-clock-
wise for the cursor downward.
• Rotate [SELECTOR] clockwise for the
cursor upward.
--Set Mode--
Rotate
Cursor
˘Turn Selector CW
SELECTOR Turn Selector CCW
(Default: Turn Selector CCW)
movement
Movement
