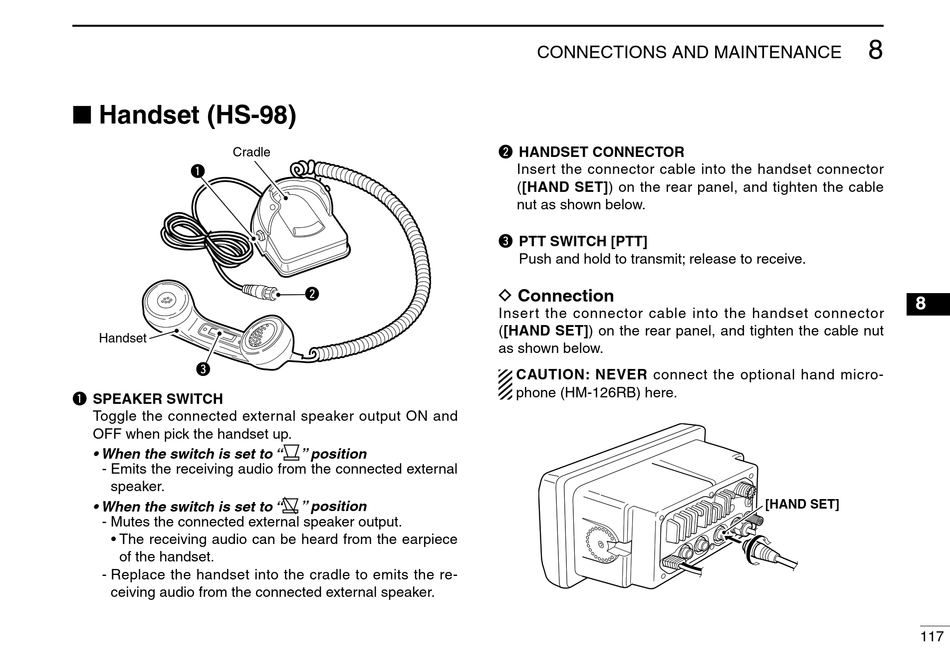

n Handset (HS-98)
Cradle
q
Handset
e
q SPEAKER SWITCH
Toggle the connected external speaker output ON and
OFF when pick the handset up.
• When the switch is set to "
- Emits the receiving audio from the connected external
speaker.
• When the switch is set to "
- Mutes the connected external speaker output.
• The receiving audio can be heard from the earpiece
of the handset.
- Replace the handset into the cradle to emits the re-
ceiving audio from the connected external speaker.
w
" position
" position

CONNECTIONS AND MAINTENANCE

w HANDSET CONNECTOR
Insert the connector cable into the handset connector
([HAND SET]) on the rear panel, and tighten the cable
nut as shown below.
e PTT SWITCH [PTT]
Push and hold to transmit; release to receive.

D Connection

Insert the connector cable into the handset connector
([HAND SET]) on the rear panel, and tighten the cable nut
as shown below.
CAUTION: NEVER connect the optional hand micro-
phone (HM-126RB) here.
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
[HAND SET]
16
117
