6
DSC OPERATION

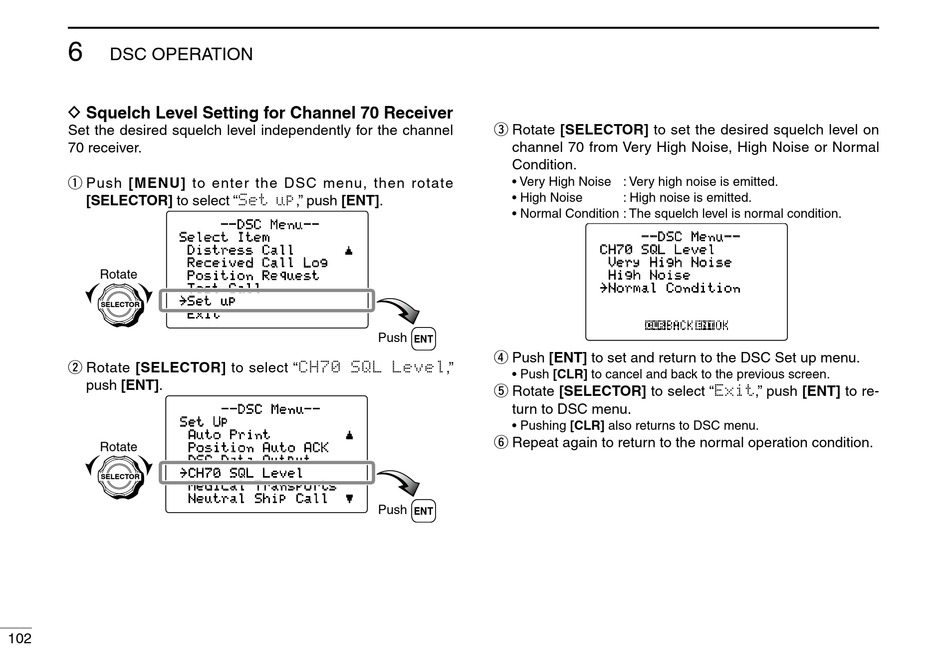

D Squelch Level Setting for Channel 70 Receiver

Set the desired squelch level independently for the channel
70 receiver.
q Push [MENU] to enter the DSC menu, then rotate
[SELECTOR] to select "Set up," push [ENT].
Select Item
Distress Call
Received Call Log
Rotate
Position Request
Test Call
˘Set up
SELECTOR
Exit
w Rotate [SELECTOR] to select "CH70 SQL Level,"
push [ENT].
Set Up
Rotate
˘CH70 SQL Level
SELECTOR
102
--DSC Menu--
≤
--DSC Menu--
Auto Print ≤
Position Auto ACK
DSC Data Output
Medical Transports
Neutral Ship Call ≥
e Rotate [SELECTOR] to set the desired squelch level on
channel 70 from Very High Noise, High Noise or Normal
Condition.
• Very High Noise : Very high noise is emitted.
• High Noise
• Normal Condition : The squelch level is normal condition.
Push
r Push [ENT] to set and return to the DSC Set up menu.
• Push [CLR] to cancel and back to the previous screen.
t Rotate [SELECTOR] to select "Exit," push [ENT] to re-
turn to DSC menu.
• Pushing [CLR] also returns to DSC menu.
y Repeat again to return to the normal operation condition.
Push
: High noise is emitted.
--DSC Menu--
CH70 SQL Level
Very High Noise
High Noise
˘Normal Condition
